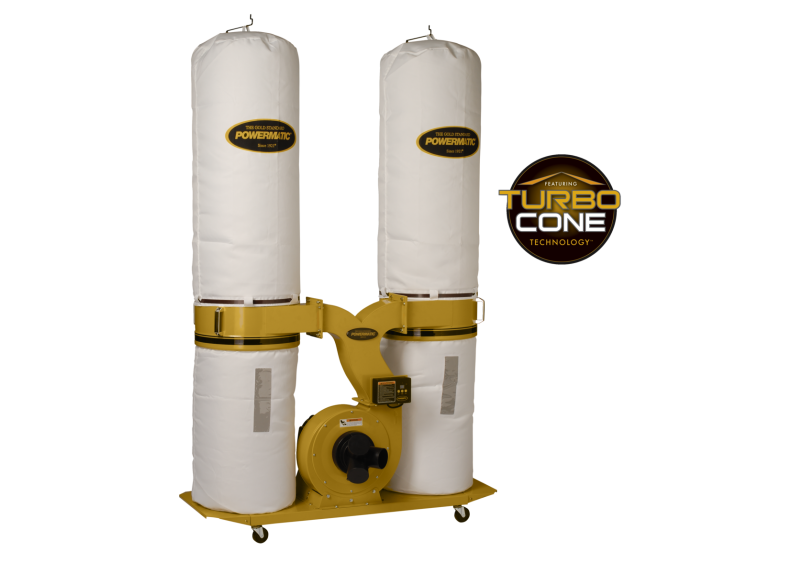

POWERMATIC 30-Micron Bag Filter Dust Collector 3HP 1PH 230V | PM1900TX-BK1

SKU 1792071K

Model Number: POW1792071K

Original price $1,579.99 - Original price $1,579.99
Original price
$1,579.99 - $1,579.99
Current price $1,579.99

The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone™ improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter offers over six times the filtering area of standard filter bags, collects 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Multiple connection port capability makes this machine a central dust collection system for the entire woodworking shop. Four swivel casters and conveniently located handles allow for easy mobility.

  • 30-micron filter bags for improved capture of fine dust particles.
  • All-metal duct construction for rigidity and improved air flow.
  • Eliminates premature filter clogging for sustained performance.
  • Remote-controlled digital timer can be programmed for up to 99 minutes.
  • Cone eliminates premature filter clogging for sustained performance.
  • The steel impeller is powered by a 3HP motor for peak performance.
  • Triple 4” dust ports allow for several hoses to be attached at the same time.
  • TurboCone™ improves chip separation and collector bag packing efficiency.
Stock Number 1792071K
1-Hose Connection Diameter (In.) 8
3-Hoses Connection Diameter (In.) 4
Air Flow (US Method) @ 4" (CFM) 234
Bag Diameter (In.) 20
Collection Bag Length (In.) 30
Efficiency (Micron) 30
Filter Bag/Canister Length (In.) 48
Gross Weight (Lbs) 215
Impeller Diameter (In.) 14
Impeller Fins 7
Impeller Material Steel
Motor Amps 15
Motor Power (HP) 3
Motor Voltage (V.) 230
Net Weight (Lbs.) 211
Overall Dimensions (L x W x H) (In.) 61 x 30 x 94
Prewired Voltage (V.) 230
Recommended Circuit Size (Amps.) 30
Sound Rating (Db.) 86-92
Static Pressure (Wc.) 12.15
Style (Type) Dust Collector
