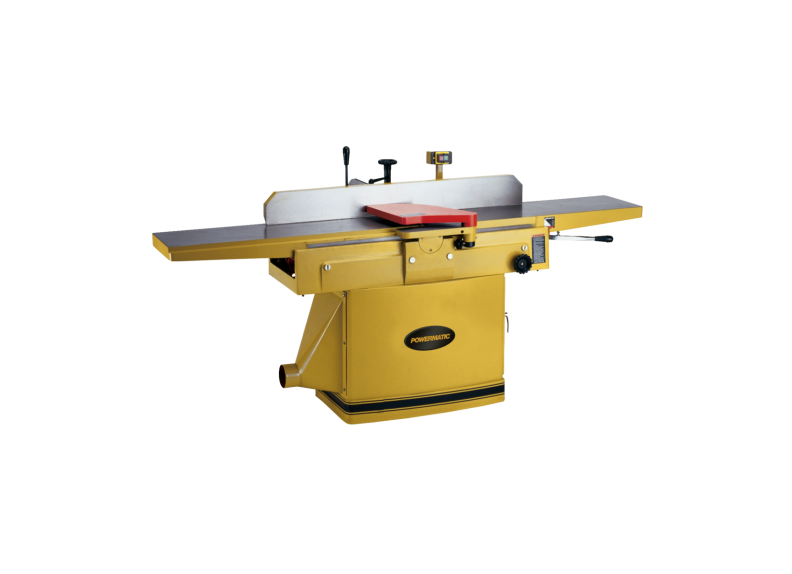

POWERMATIC 12" Jointer Helical Cutterhead 3 HP 1PH 230V | 1285

SKU 1791307

Model Number: POW1791307

Original price $8,799.99 - Original price $8,799.99
Original price
$8,799.99
$8,799.99 - $8,799.99
Current price $8,799.99

This 12" Jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard straight knife cutterhead or the helical cutterhead.

  • Helical cutterhead with 42 two sided carbide inserts for fast knife changes with no adjustments and a quiet clean cut.
  • Large 12" x 84" precision ground cast iron table surface for heavy-duty work.
  • Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments.
  • Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play.
  • Table "lips" on both sides of cutterhead aid in noise reduction.
Stock Number 1791307
Cutterhead Speed (RPM) 5000.0000
Cutting Capacity (W x D) (In.) 11-3/4 x 3/4
Dust Collection Minimum CFM Required (CFM) 800
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 3
Motor Voltage (V.) 230
Number of Knives 44
Prewired Voltage (V.) 230
Recommended Circuit Size (Amps.) 30
Type of Cutterhead HELICAL
