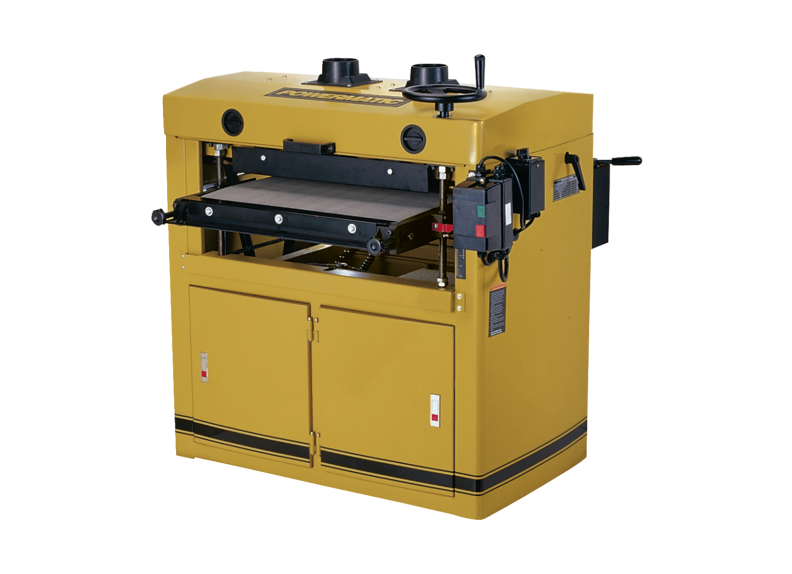

POWERMATIC 25" Dual-Drum Sander 5 HP 1PH 230V | DDS-225
By Powermatic
SKU PM9-1791290
Model Number: POWPM91791290
Original price
$6,984.00
-
Original price
$6,984.00
Original price
$6,984.00
$6,984.00
-
$6,984.00
Current price
$6,984.00
Finally, a production class Dual Drum Sander that is loaded with features. This machine features a 5HP motor to power the twin poly V-belts. The dual steel drums have a hard durometer rubber coating to assure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides years of vibration free sanding, with plenty of storage space underneath.
- Dual drum head for superior finish.
- Dual dust ports with directional baffles for more efficient dust removal.
- Forward/reverse conveyor belt grips stock evenly.
- Full size cast iron table for solid support.
- Hard durometer rubber coating on steel drums provides flat, smooth finish.
- Independently adjustable rear drum for fine tuning.
- Two-speed gearbox for wide range of sanding projects.
| Stock Number | 1791290 |
|---|---|
| Conveyor Speed (FPM) | 8 and 12 |
| Drum Diameter (In.) | 6 |
| Drum Length (In.) | 25 |
| Drum Speed (RPM) | 1,700 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Maximum Board Thickness (In.) | 5-1/4 |
| Maximum Board Width (In.) | 25' |
| Minimum Board Length (In.) | 9 |
| Minimum Board Thickness (In.) | 1/32 |
| Motor Power (HP) | 5 |
| Recommended Circuit Size (Amps.) | 40 |
| Style (Type) | Dual Drum |
| Weight (Lbs.) | 730 |
