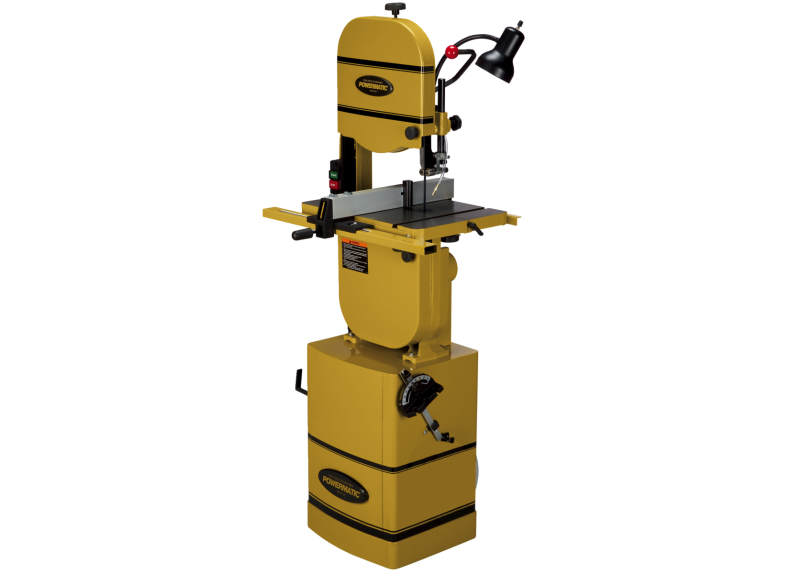

POWERMATIC 14" Band Saw w/ Stand & Riser Block | PWBS-14CS
by Powermatic
SKU 1791216K
Model Number: POW1791216K
Original price
$1,699.99
-
Original price
$1,699.99
Original price
$1,699.99
$1,699.99
-
$1,699.99
Current price
$1,699.99
Introducing the PWBS-14CS Bandsaw. It has an extra large, two-piece cast iron table. It consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter™ quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6" under guide capacity with 13-1/2" frame to blade clearance. The aluminum rip fence comes with a resaw attachment.
- 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included).
- Carter™ quick tension lever speeds blade changes and the detension setting extends blade life during non-use.
- Chip blower ensures a clean, visible cut line.
- Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction.
- Easy to read tensioning gauge settings indicated in "blade width" increments.
- Exclusively designed, quick-release precision T-square style rip fence with 4" resaw attachment.
- Includes 6" riser block.
- Precision balanced nine spoke cast iron wheels reduces vibration and creates smoother blade travel.
- Rigid one-piece welded stand requires no assembly.
- Upper and lower dual ball bearing guides for accurate cuts.
| Stock Number | 1791216K |
|---|---|
| Band Saw Size/Wheel Diameter (In.) | 14 |
| Blade Length (In.) | 93-1/2 |
| Blade Speed (SFPM) | 3000 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Minimum Saw Blade Width (In.) | 1/8 |
| Motor Power (HP) | 1.5 |
| Motor Voltage (V.) | 115/230 |
| Prewired Voltage (V.) | 115 |
| Recommended Circuit Size (Amps.) | 30/20 |
| Table Height from Floor (In.) | 44 |
| Table Tilt (Deg.) | 45 Right / 10 Left |
