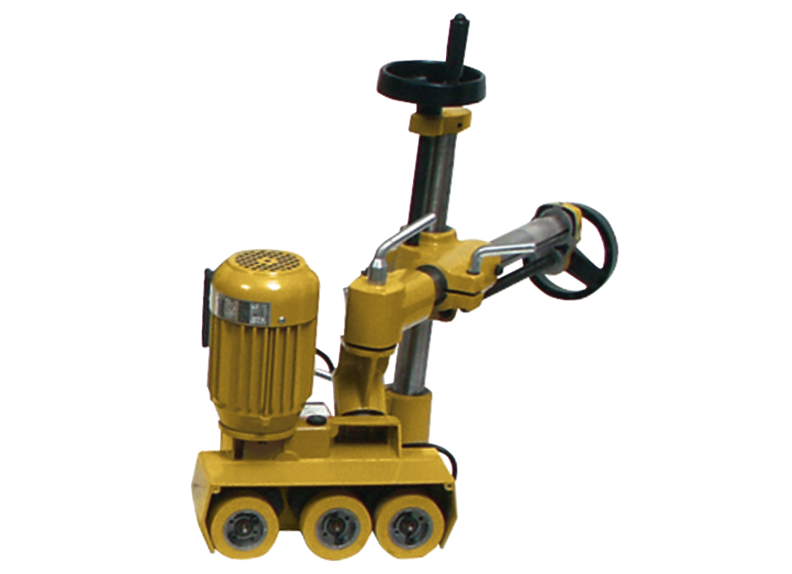

POWERMATIC Feeder 1/4HP 1PH 115V | PF3-JR

SKU 1790818

Model Number: POW1790818

Original price $999.99 - Original price $999.99
Original price
$999.99
$999.99 - $999.99
Current price $999.99

This rugged, heavy-duty Stock Feeder features a continuous-duty motor that transfers power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials. The fully adjustable support column features moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of body, base and universal joints provides stability with vibration-free feeding. The roller system provides money-saving wheel changes by allowing the replacement of a single roller, instead of a complete set.

  • Cast iron construction.
  • Continuous duty motors transfer power from the gear box to the feed roller.
  • Moveable universal joints and locking mechanisms lock the feeder in horizontal, vertical, or angle feed positions.
  • Roller chain and sprocket design provide positive feeding for all types of materials.
  • Rollers can be changed out easily and quickly.
  • Smart roller system allows for tire to be replaces with out replacing the assembly.
  • Solid cast iron construction of body pieces and base.
  • Support column is fully adjustable for horizontal, vertical or angled feeder position.
  • Universal joints provide stability for vibration free feeding.
Stock Number PM9-1790818
Feed Rate (FPM) 13/26/33/62
Maximum Height of Rollers Parallel to Tabletop (In.) 6
Motor Power (HP) 1/4
Motor Voltage (V.) 115
Prewired Voltage (V.) 115
Swing (Deg.) 360
