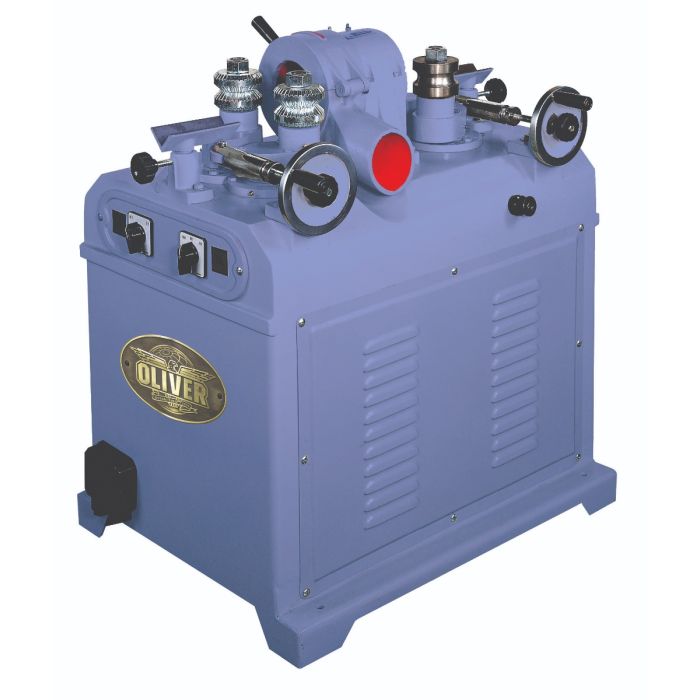

Oliver Machinery Round Rod Milling Machine 220 volt 3 phase 5 & 2HP Includes 1" and 2" Cutterhead
Model Number: OLI7660002

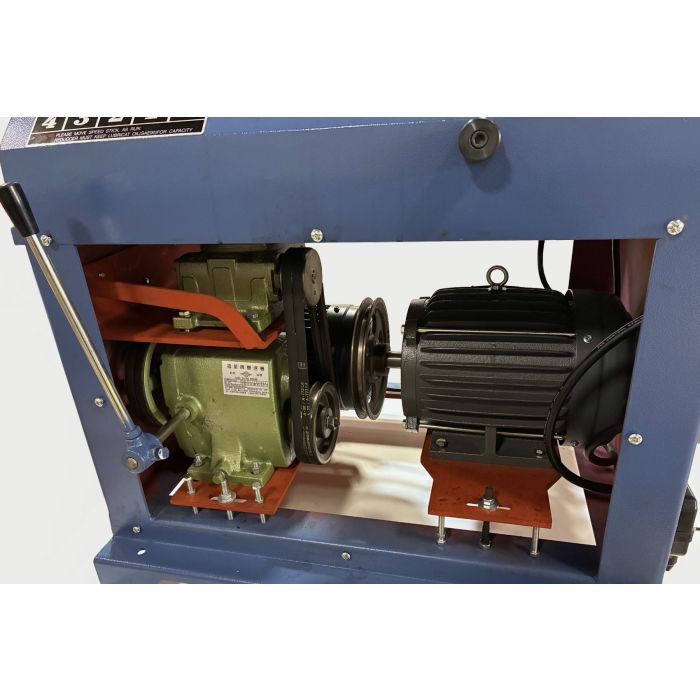

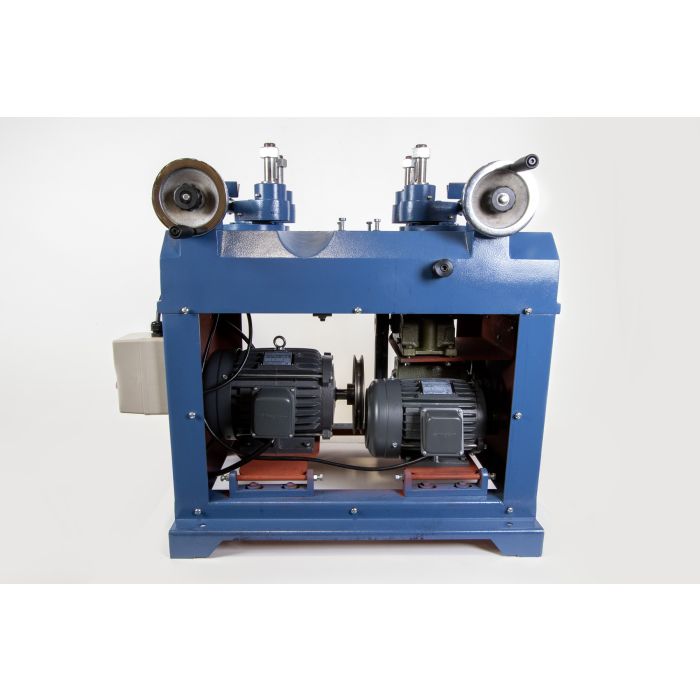

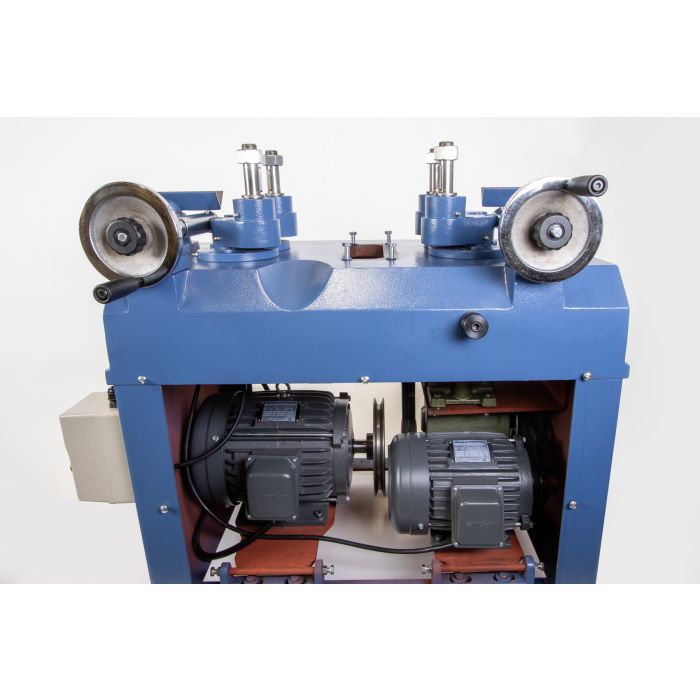

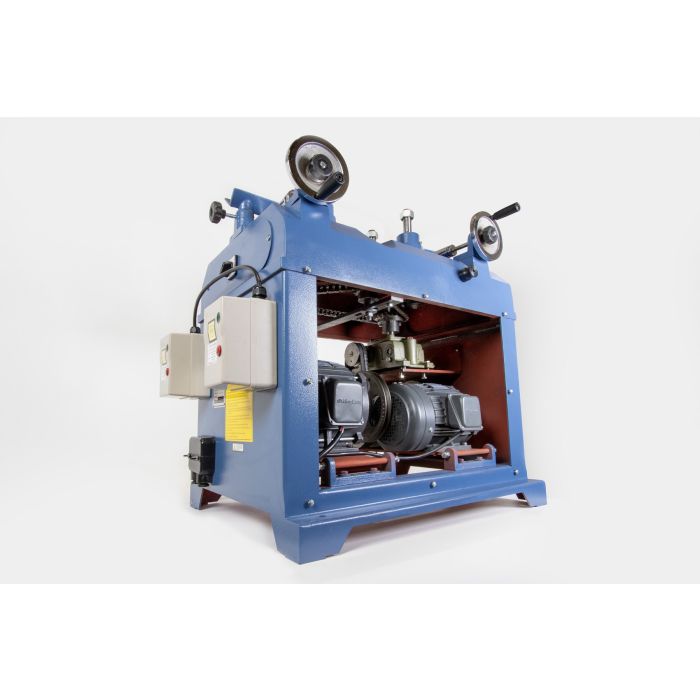

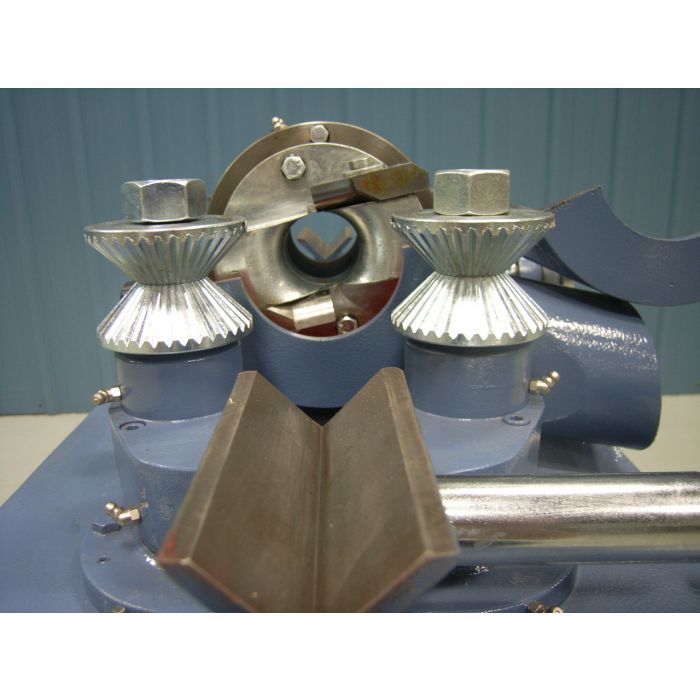

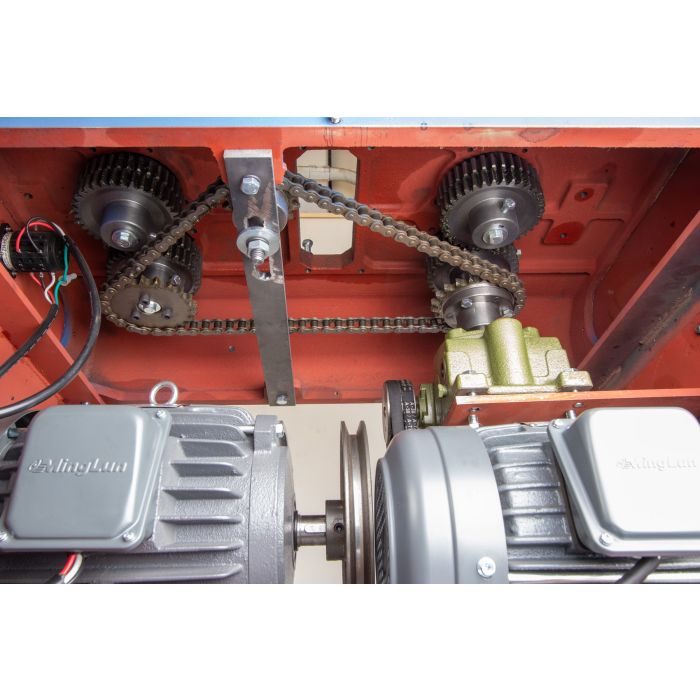

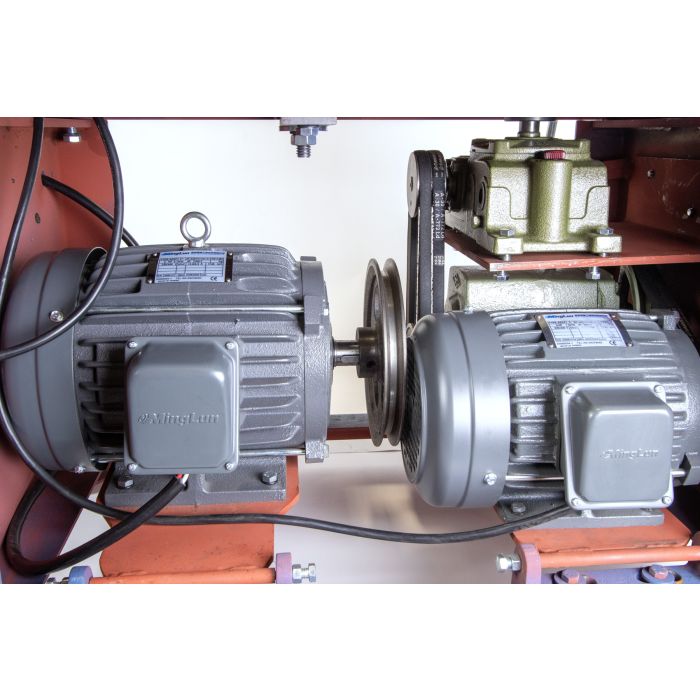

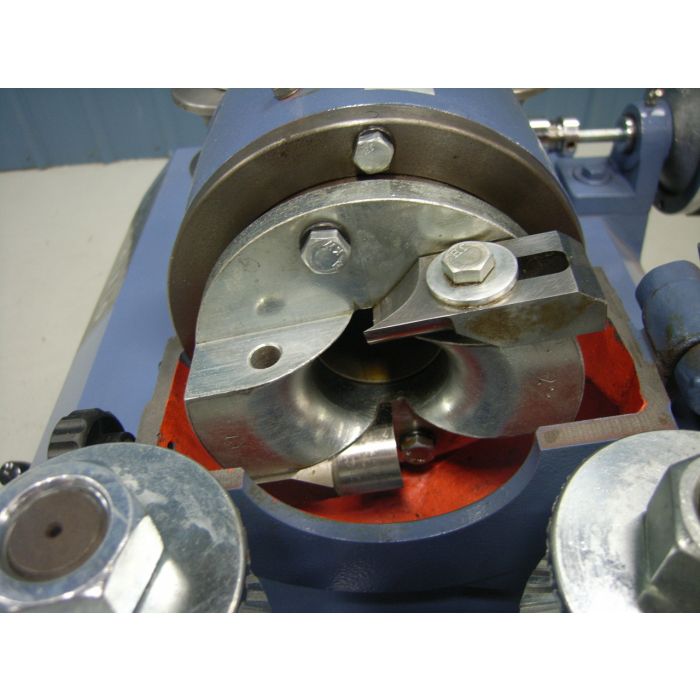

Highly efficient design for maximum production. Independent cutter head and feed motor provide unmatched performance with a maximum feed rate of 52 feet per minute. 4-feed rates allow greater versatility of material and applications. Feed can be reversed for quick stock removal in the case of a jam. Fully guarded hood provides a safe work station. Wide range of capacity from 3/8” to 2-1/4” with optional cutter sets. Includes 1” and 2” cutter sets. Built-in 4” dust port allows efficient dust management. Magnetic controls for safer operation. Powerful three phase 5HP TEFC cutter head and 2HP TEFC feed motor.
Model Number 7660 / Stock Number 7660.001 / Cutting Capacity 3/8” - 2-3/8” / Maximum Material Removal 3mm / Cutter Set Included 1” & 2” only / Minimum Length of Stock 12" / Cutterhead Drive Motor 5HP / Motor 2HP / Cutterhead Speed 3,000 RPM / Feed Speeds 20, 30, 43, 53 FPM / Overall Dimensions 36-1/4 x 30 x 39-1/2” / Main Motor 5HP, 3Ph 220V/440V Prewired 220V (20/10 Amp) / Net Weight 660 lbs. / Gross Weight 770 lbs.
