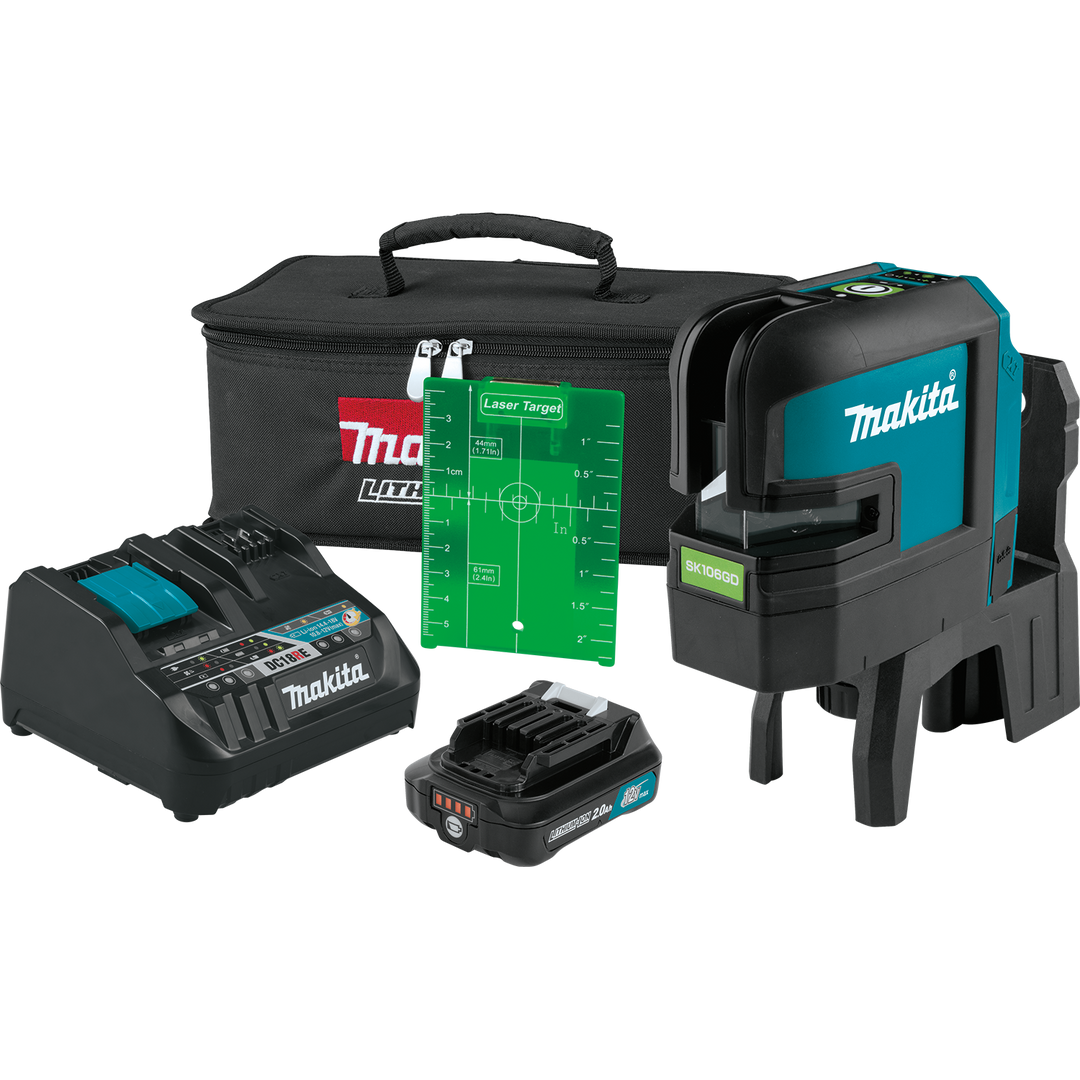

Lasers are typically utilized in the early stages of construction, and measurement needs will vary based on application requirements. The Makita 12V max CXT® Lithium-Ion Self-Leveling Cross-Line/4-Point Green Beam Laser (SK106GDWAX) gives the user a cordless solution for selectable horizontal/vertical cross reference lines plus 4-point required for level, align, plumb, and square applications. Depending on ambient light in the working environment, the SK106GDZ has a line visibility range up to 115' and is detectable up to 262’ with a Makita Laser Detector (sold separately).
The SK106GDZ has a bright 525 nm class II green laser with +/-1/8” at 33’ for best-in-class accuracy. The laser line fan length spans past the 90 degree position to provide 180 degree horizontal and 160 degree vertical lines for full reference line coverage. For increased efficiency, self-leveling line stability is achieved in up to 3 seconds for increased productivity.
For longer run time, all 12V max CXT® cordless tools are also compatible with the 12V max CXT® Lithium-Ion 4.0Ah battery (BL1041B). 12V max CXT® lithium-Ion batteries are engineered with a Battery Protection Circuit that protects against overloading, over-discharging and over-heating. It’s part of the expanding 12V max CXT® series, combining performance with superior ergonomics in a compact size.
For users in the 18V LXT® battery platform, the SK106GDZ has a power connector port that allows an 18V LXT® battery to be used with the Power Source Adapter (ADP05) and Adapter Cord (adapter and cord sold separately).
- Selectable horizontal/vertical cross reference lines plus 4-point required for level, align, plumb and square applications
- Up to 10 hours of continuous run time using included Makita 12V max CXT® 2.0Ah rechargeable battery; up to 20 hours of continuous run time using a 12V max CXT® 4.0Ah battery
- Green line visibility range up to 115’ depending on ambient light and detectable up to 262' with Makita Laser Detector
- Bright 525 nm class II green laser for best-in-class visibility with +/-1/8” at 33’ for best-in-class accuracy
- Laser line fan angle spans past the 180° horizontal line and 170° vertical line positions for full reference line coverage
- Fast self-leveling line stability is achieved in up to 3 seconds for increased productivity
- Self-leveling is correctable up to 4º of slope allowing operation on uneven surfaces
- Integrated pendulum lock enables slope incline applications and provides added protection of laser diode during transport & storage
- Dust and water resistance with IP 54 rating for increased durability
- Highly protected laser windows are recessed into the housing for increased durability
- Rubberized housing over-mold for increased protection
- Simplified one button user interface for ease of operation
- Low laser brightness mode conserve battery power for extended run-time performance
- Power connector port allows 18V LXT® Lithium-Ion Battery to be used as alternate power source with Power Source Adapter (ADP05) and Adapter Cord (adapter and cord sold separately)
- Multi-purpose magnetic bracket with integrated 1/4” & 5/8” threads allow laser attachment to metal surfaces, wood surfaces or Makita Tripods (TK0LM1001F and TK0LM5030F)
- Battery Protection Circuit protects against overloading, over-discharging and over-heating
- 12V max CXT® Lithium-Ion 2.0Ah battery BL1021B, features an integrated L.E.D. battery charge level indicator
- Part of the expanding 12V max CXT® series, combining performance with superior ergonomics in a compact size
- Not compatible with 12V max pod-style tools, batteries and chargers
- 3-year limited warranty on tool, battery and charger
- Only use genuine Makita batteries and chargers
