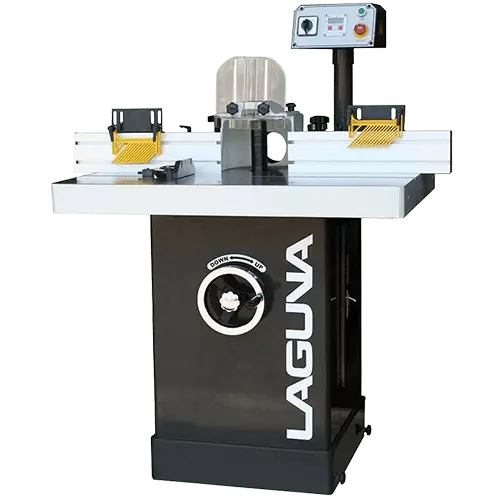

LAGUNA Pro Shaper (7.5HP 3 Phase)

Laguna SKU: MSHAP5030-0130
LAGUNA Pro Shaper (7.5HP 3 Phase)

LAGUNA Pro Shaper (7.5HP 3 Phase)

Laguna SKU: MSHAP5030-0130
Model Number: LAGMSHAP50300130
Regular Price $4,499.99

The Laguna Pro Shaper combines a precision shaper with features normally found only in much higher priced machines. The fit and finish on this machine is top notch and even includes a wheel kit built right into the base.The Laguna Pro Shaper is designed to give you years of trouble free performance without breaking the bank.

Owner's Manual


  • Motor: 5HP 1 Phase 220V.
  • Table size: 39-5/16″ x 31-7/16″ x 3-1/2″.
  • Spindle Travel: 4″.
  • Spindle Sizes: 3/4″ and 1-1/4″.


The table measures an impressive 31″ x 39″ and is predrilled to accept most power feeders. The fence has a precision micro-adjustment that is aligned by a solid steel bar. Each full revolution of the turn handle gives an exact 1/16″ adjustment to the fence. Inside you will find a heavy-duty motor available in either 5HP 220 volt 1 phase or 7.5 HP 220 volt 3 phase. Each offers 3 speeds with a unique quick change poly-groove belt system rather than the traditional V-belt. Digital readout is standard for the spindle height. The Pro Shaper is also equipped with a reversing switch and all controls are mounted with an easy access panel.

Capacity Under Nut: 6″(For 1-¼″) and 4″(For ¾″)

Router Collets: ¼″ and ½″

Spindle Speeds:5000, 7000, 10000 RPM

Table Opening Diameter: 7-5/16″

Digital Readout: Standard

Direction: Forward/Reversing Switch

Fence: Micro Adjustment

Weight (Net/Ship): 640/720 lbs

Shipping Dimensions (L x W X H): 43″ x 43″ x 60″
