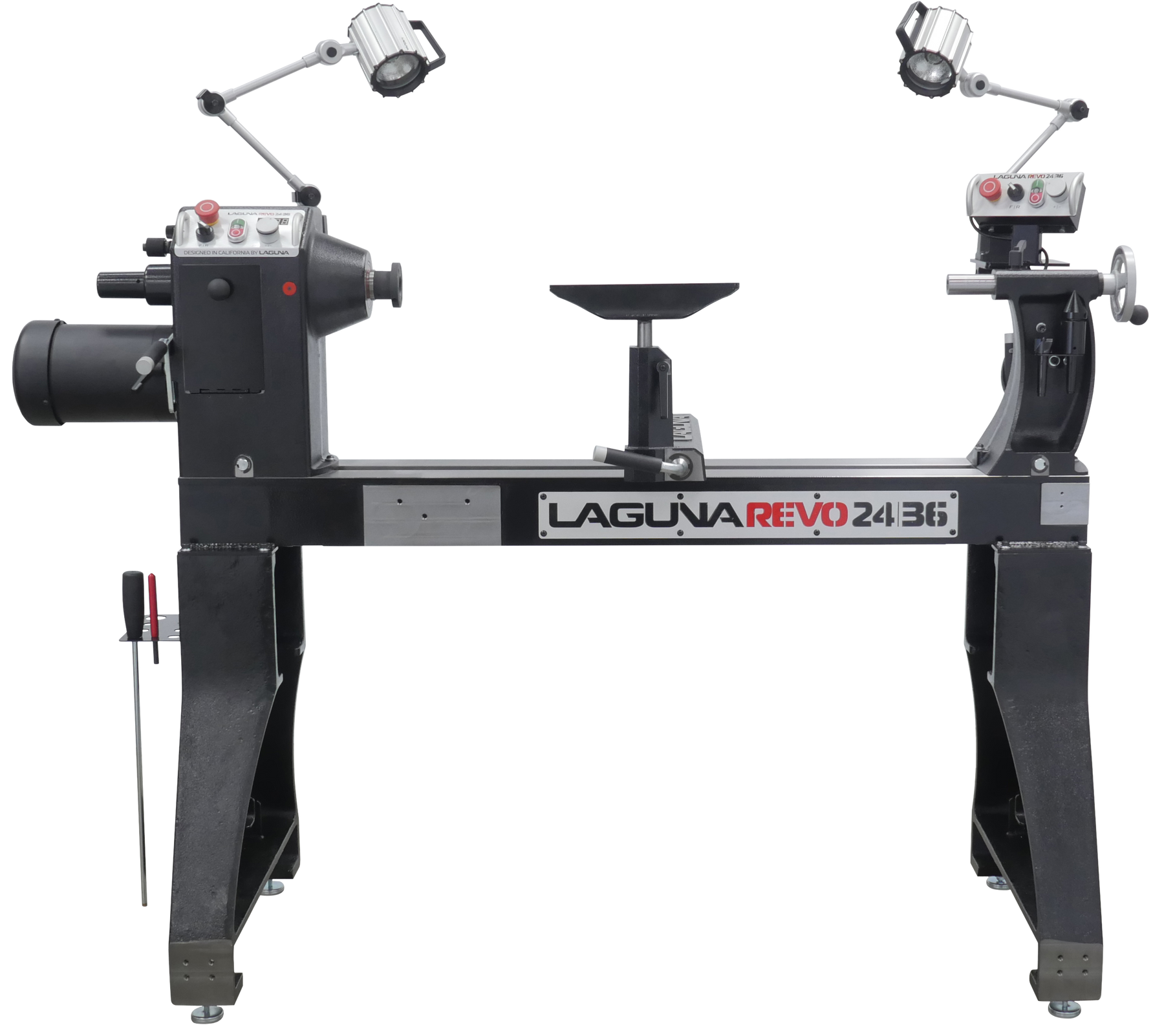

LAGUNA Revo 24|36 Lathe 220 Volt

by Laguna
SKU MLAREVO 2436-220

Model Number: LAGMLAREVO2436220

Original price $3,999.00 - Original price $3,999.00
Original price
$3,999.00
$3,999.00 - $3,999.00
Current price $3,999.00

Wall Thickness of legs on the Revo 24|36 is 80% heavier compared to the Revo 18|36.

Redesigned banjo features a more compact design, 45° cutout & wider base.

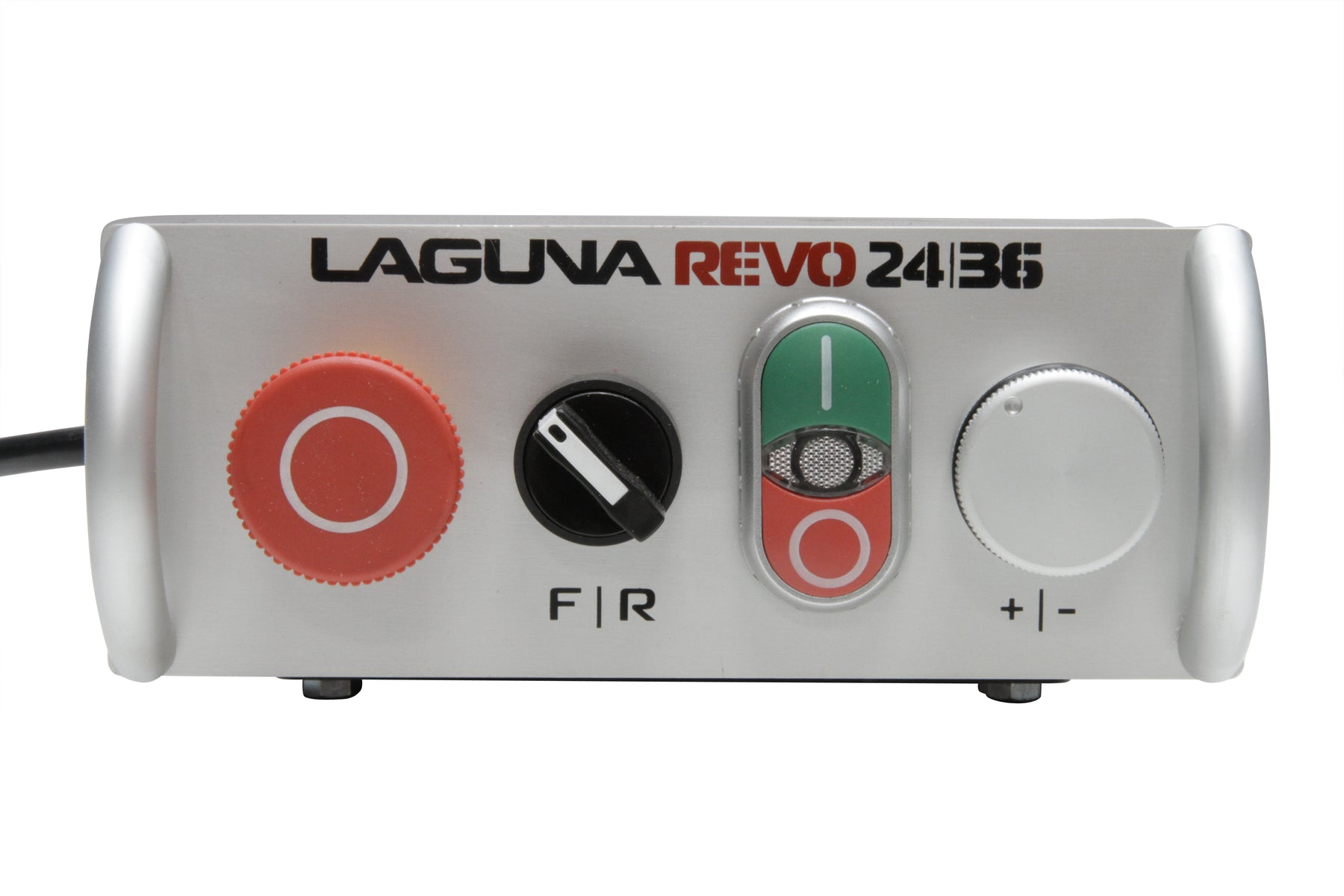

Having a second control panel that mounts in two positions (high or low) sets the Revo 24|36 apart from any other lathe in the world, not only can you turn off the machine from this control panel, but it allows the operator to change speed as well. A switch on the back of the headstock designates whether you control the Revo from the headstock control panel or the corresponding control panel. The E Stop works on both at any given time.

And YES, this amazing control panel comes standard with the Revo 24|36.

Owner's Manual

FEATURES:

  • Motor: Induction, 1725 RPM, 3HP, 220V, 60Hz.
  • Phase: 1-Phase Input, 3-Phase Output.
  • VFD: Delta S1 Variable Frequency Drive.



Recommended Breaker Size: 15 Amp

Remote Control Box With Speed Settings

Two Ergonomic Control Panel Positions: High/Low

Drive Belt: Poly-Groove With EZ Access

Tailstock Quill: 4-½″, Engraved, Self-Ejecting

Floor Top Spindle Center: 44-½″

Front Bearing: TPI Taiwan 6307LLU

Rear Bearing: TPI Taiwan 6205LLU

Spindle Index #: 14/36/48 with Lock

Distance Between Centers: 36″

Headstock Through-Bore: ⅜″

Tailstock Storage Of Centers

Toolrest Post Size: 1″

Spindle Size: 1-¼″ x 8 TPI RH

Floor To Bed: 32-½″ with Pads

Spring Loaded Spindle Lock

Maximum Outboard Turning Diameter: 38″ (w/ Optional 20″ Extension Installed)

Swing Over Banjo: 19-¾″

Accepts Vacuum Chuck: Yes

Face Plate: 3″ Diameter

Tool Rest: 12″

Steel Bed: ASTM A36

Bed Gap: 50mm

Headstock Spindle: MT2 Taper Hardened To 40° HRC

Live Center Threads: 3/4″ – 10 UNC

Tailstock Quill: #2 MT

Swing Over Bed: 24″

RPM High: 135-3500

RPM Low: 50-1300

Plug: 6-15P

Dimensions (W x D x H): 60″ x 26″ x 52-¼″

Shipping Weight: 610 lbs

Shipping Dimensions (L x W x H): 36″ x 40″ x 50″
