LAGUNA C|Flux: 3
Model Number: LAGMDCCF32201

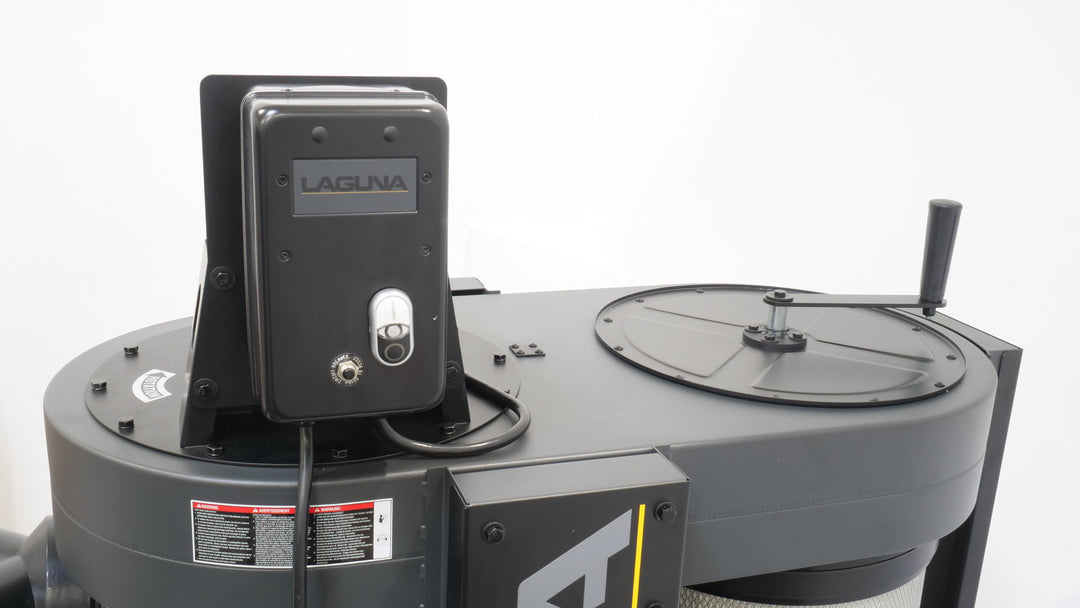

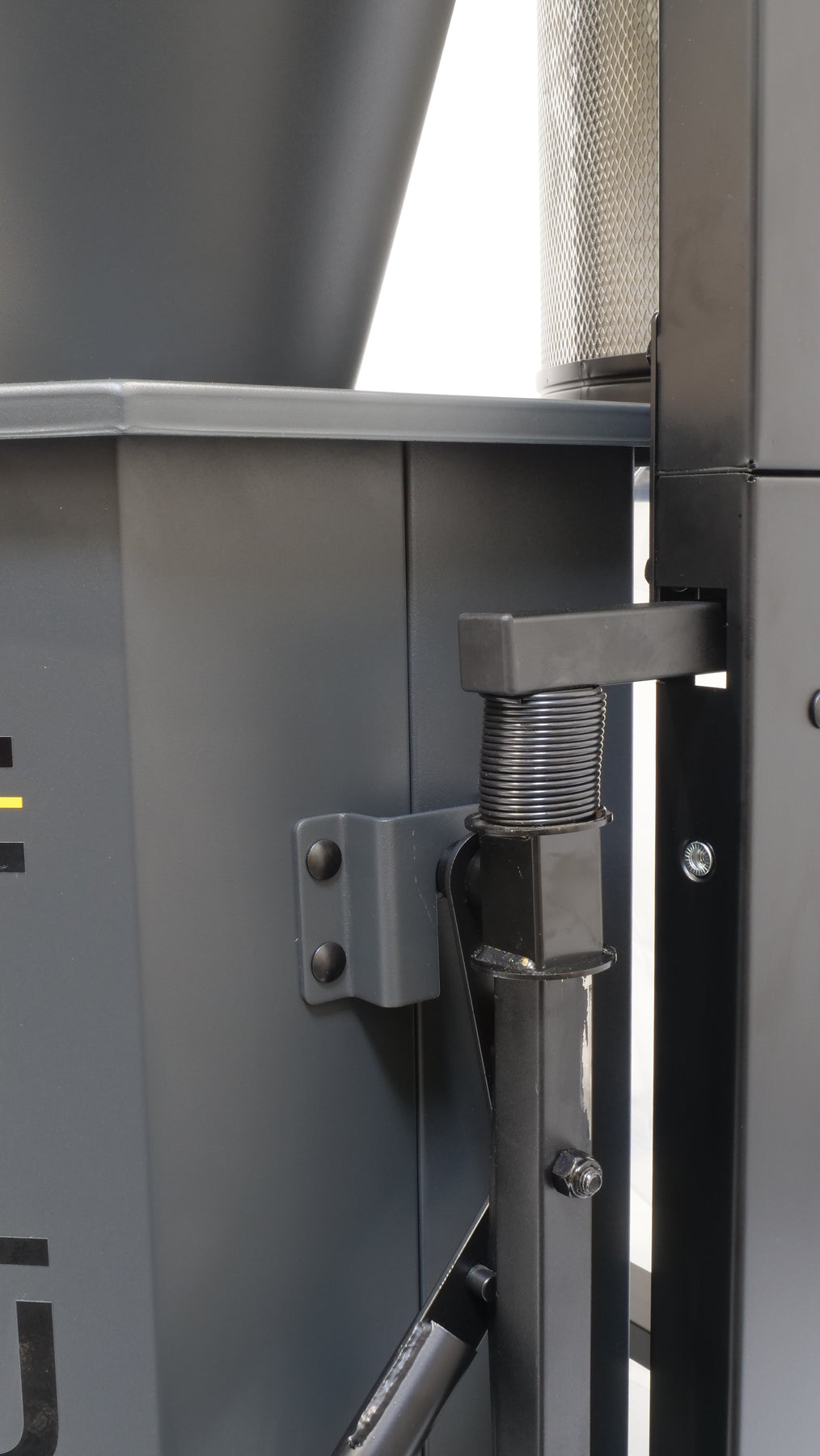

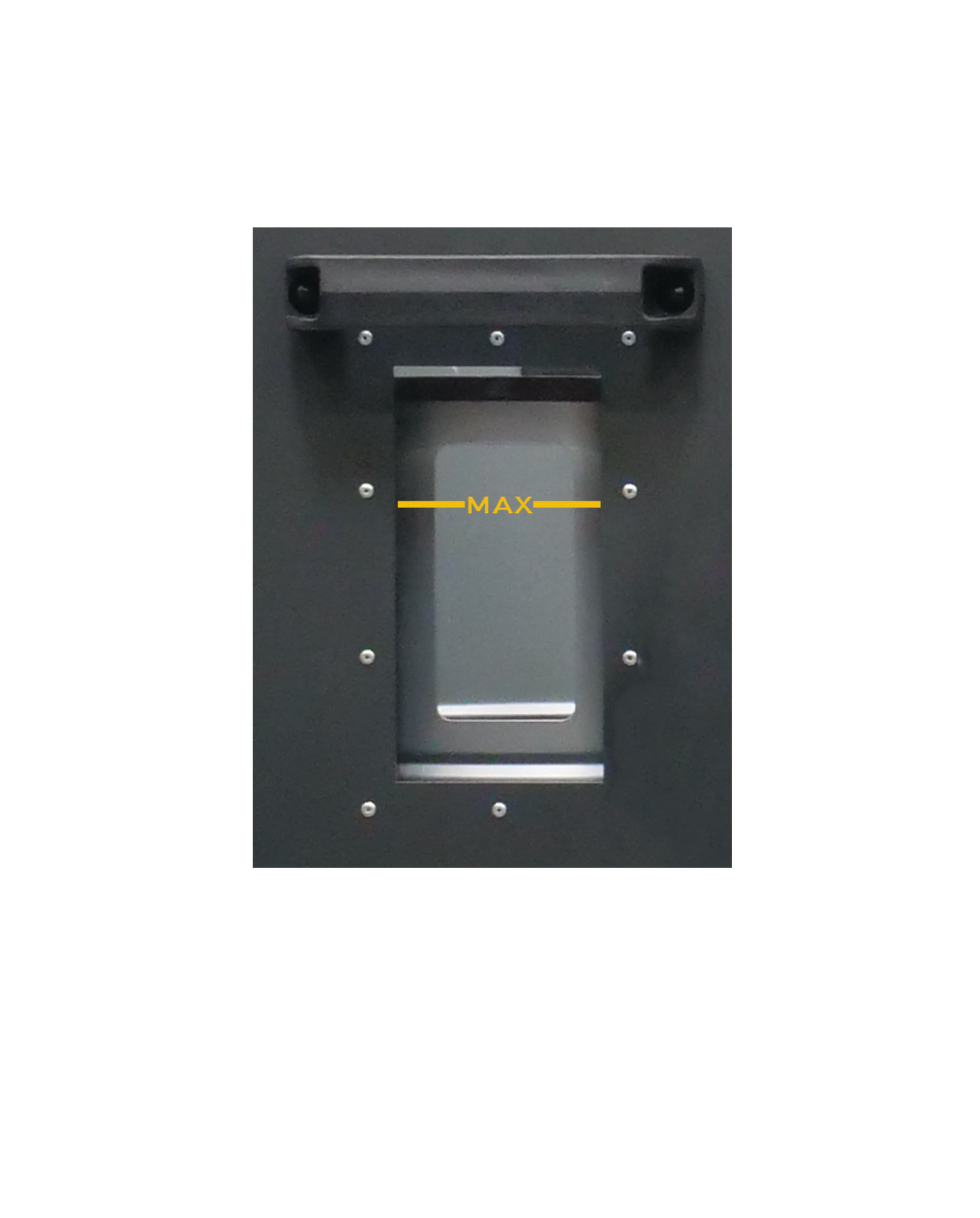

For the popular C|Flux cyclone dust collectors, we’ve kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity. The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the locking casters provide additional stability.
FEATURES:
- 3 HP Motor.
- 2718 CFM Maximum Air Flow.
- 46 Gallon Octagon Drum.
Motor Specs: 3HP
Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM
Running AMP: (8″ Inlet) 22A at 220V
Maximum Air Flow: 2718 CFM (Cubic Feet Per Minute)
Shop Setting Air Flow*: 1624 CFM
Max Static Pressure: 11.2″
Fan Size: 15.5″
Inlet: 8″ (8″ x 4″ X 3 Ports)
Remote Control: High Frequency
Collection Capacity: 46 Gallon Octagon Drum
Decibel Reading: 88 dB (@9.8ft)
Assembled Dimensions (L x W x H): 48″ x 28″ x 88″
Packing Size (L x W x H): 50″ x 31.5″ x 50.6″ (127 x 80 x 128.5 cm)
Machine Weight: 373 lbs. (169 kg)
Shipping Weight: 441 lbs. (200 kg)
Filter Specs
Filtering Area: 102 sq/ft (9.5 sq/m)
Cartridge Filter: 1 Micron, 15.74″ x 35.43″ (40 x 90 cm) x 1pc
* Shop Setting Air Flow measured with hoses connected to inlet. See Performance tab for more details.
