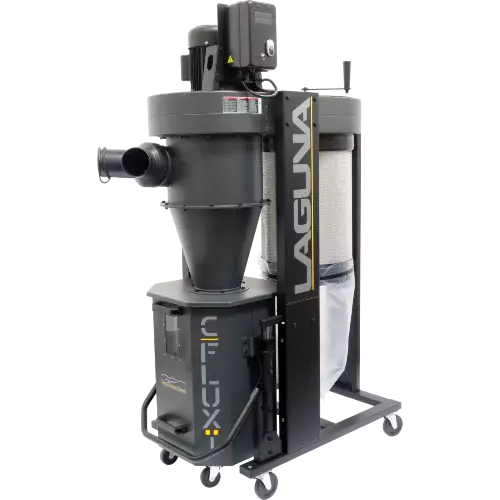

LAGUNA C|Flux: 1
Model Number: LAGMDCCF15110

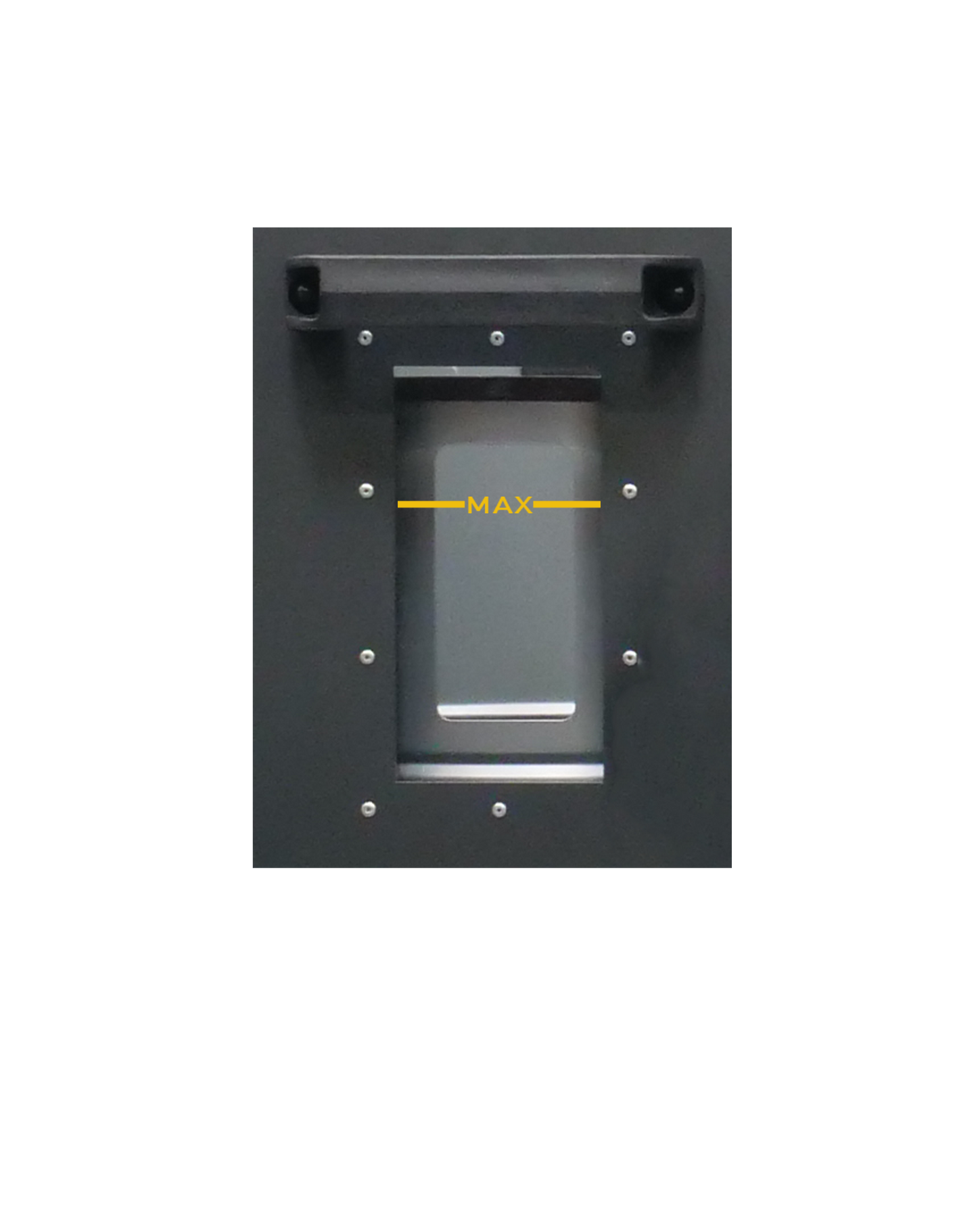

For the popular C|Flux cyclone dust collectors, we’ve kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity. The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the locking casters provide additional stability.
FEATURES:
- 1.5 HP Motor.
- 1314 CFM Maximum Air Flow.
- 25 Gallon Octagon Drum.
Motor Specs: 1.5HP
Electrical Specs: 110V/220V / 60Hz / 1PH / 3450 RPM
Running AMP: (with 6″ inlet) 18.8A at 110V; 9.4A at 220V
Maximum Air Flow: 1314 CFM (Cubic Feet Per Minute)
Shop Setting Air Flow*: 900CFM
Max Static Pressure: 10.1″
Fan Size: 13.5″
Inlet: One 6″ or Two 4″ Ports
Remote Control: High Frequency
Collection Capacity: 25 Gallon Octagon Drum
Decibel Reading: 82 dB (@9.8ft)
Assembled Dimensions (L x W x H): 42″ x 25″ x 68″
Packing Size (L x W x H): 45″ x 28.3″ x 47″ (114.5 x 72 x 119.5 cm)
Machine Weight: 232 lbs. (105 kg)
Shipping Weight: 287 lbs. (130 kg)
Filter Specs
Filtering Area: 48.4 sq/ft (4.5 sq/m)
Cartridge Filter: 1 Micron, 15.74″ x 19.68″ (40 x 50 cm) x 1pc
* Shop Setting Air Flow measured with hoses connected to inlet. See Performance tab for more details.
