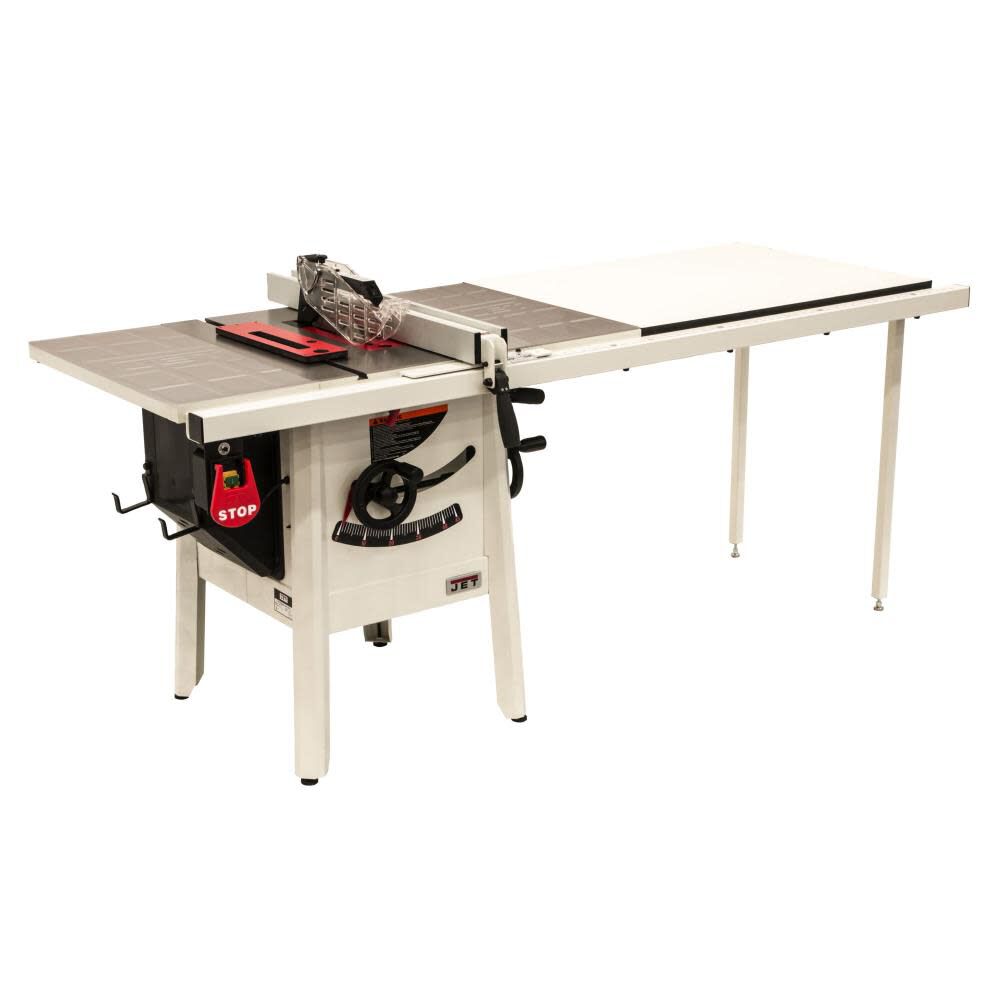

JET PROSHOP II™ 10" Table Saw - 1.75HP, 115V, 52" RIP, 115V, w/ Steel Wings
by JET
SKU 725005K
Model Number: JET725005K
Original price
$1,999.99
-
Original price
$1,999.99
Original price
$1,999.99
$1,999.99
-
$1,999.99
Current price
$1,999.99
The JET ProShop Table Saw offers features you expect from a high-end cabinet saw, in the compact design of a contractor-style machine. The redesigned transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. The exclusive ProShop fence system is available in 30” or 52” rip capacity.
- Convenient, magnetic paddle switch for the safest operation possible.
- CSA Certified.
- Improved dust shroud around blade for greater dust collection.
- Innovative single belt design for easier belt tensioning and reduced vibration.
- Low profile riving knife included.
- Motor reset switch conveniently relocated to the power switch, instead of the motor.
- Newly designed arbor lock to change blades quickly and easily.
- On board storage for all included accessories.
- Quick release riving knife for hassle free riving knife changes.
- Redesigned guard for better protection and ease of use.
SPECIFICATIONS
| Stock Number | JT9-725005K |
|---|---|
| Arbor Speed (RPM) | 4000 |
| Blade Diameter (In.) | 10 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Maximum Depth of Cut (In.) | 3-1/8 |
| Maximum Diameter of Dado (In.) | 8 |
| Maximum Rip Left of Blade (In.) | 13-1/2 |
| Maximum Rip Right of Blade (In.) | 52 |
| Maximum Width of Dado (In.) | 13/16 |
| Miter Gauge Type | T-Slot with Stops |
| Model Number | JPS-10 |
| Motor Amps | 7.4 |
| Motor Power (HP) | 1-3/4 |
| Motor Voltage (V.) | 115 |
| Prewired Voltage (V.) | 115 |
| Recommended Circuit Size (Amps.) | 10 |
| Style (Type) | Contractor |
| Table Height from Floor (In.) | 34-3/4 |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 8.81 |
| Table Size (L x W) (In.) | 20 x 27 |
| Table Type | Cast Iron |
