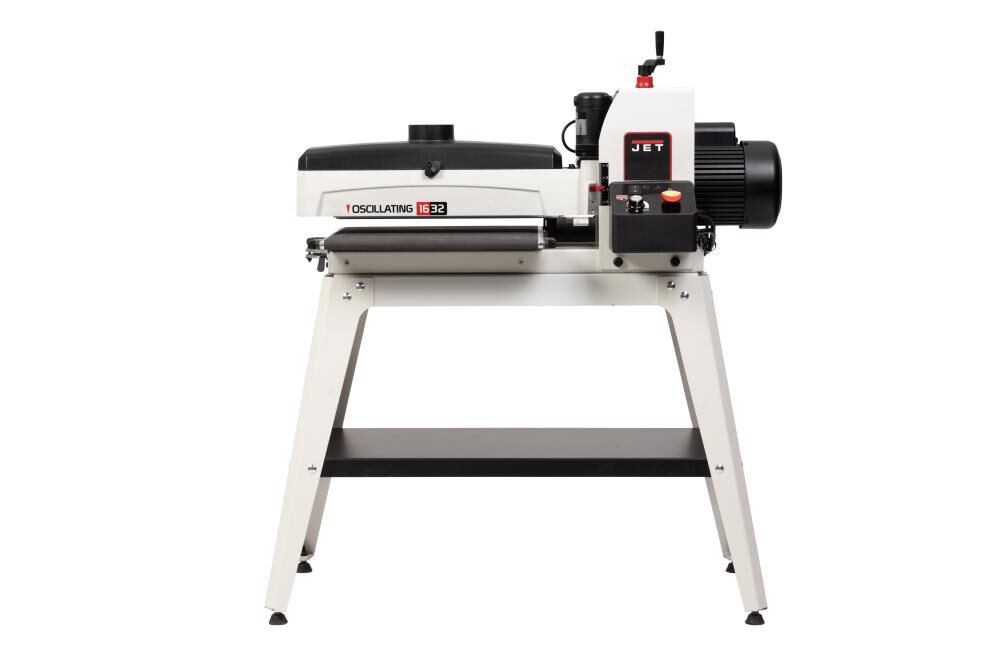

JET 16" Oscillating Drum Sander w/ Open Stand

by JET
SKU 723525

Model Number: JET723525

Original price $2,099.99 - Original price $2,099.99
Original price
$2,099.99 - $2,099.99
Current price $2,099.99

The JET 1632 Oscillating Drum Sander produces an unbeatable sanding finish, with its exclusive variable speed oscillating drum moving from left to right—minimizing visual scratch patterns in workpieces and increasing the lifespan of abrasive paper. Its patent-pending hood design extracts 97% of the dust that the sander creates. Additional features such as Sandsmart™ feed control technology, tool-less parallelism adjustment, and Heavy Duty Steel Stand make this popular sander the most innovative in its class.

  • Self-Cooling Drum.
  • Sandsmart™ control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload.
  • Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 in. collection port.
  • Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required.
  • Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and has 3/4" of oscillating stroke.
  • Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate.
  • Conveyor belt TRACKERS™ reduce the need for manual belt adjustments.
  • Toolless abrasive take-up clips make changing abrasives quick and easy.
  • Separate feed and drum motors provide independent control, optimizing the performance of the sander.
  • Dust hose hanger for added ease of use.



Stock Number JT9-723525
Conveyor Speed (FPM) 0 to 10
Drum Bearing Diameter (In.) 1
Drum Diameter (In.) 5
Drum Length (In.) 16
Drum Speed (RPM) 1725
Dust Port Outside Diameter (In.) 4
Maximum Board Thickness (In.) 3
Maximum Board Width (In.) 16
Minimum Board Length (In.) 2-3/8
Minimum Board Thickness (In.) 1/32
Model Number JWDS-1632OSC
Motor Amps 14
Motor Power (HP) 1-1/2
Recommended Circuit Size (Amps.) 20
Style (Type) Drum Sander
Weight (Lbs.) 191

Operating Instructions & Parts Manual
