JET 17" Drill Press

JET SKU: 716300
JET 17" Drill Press

JET 17" Drill Press

JET SKU: 716300
Model Number: JET716300
Regular Price $1,299.99

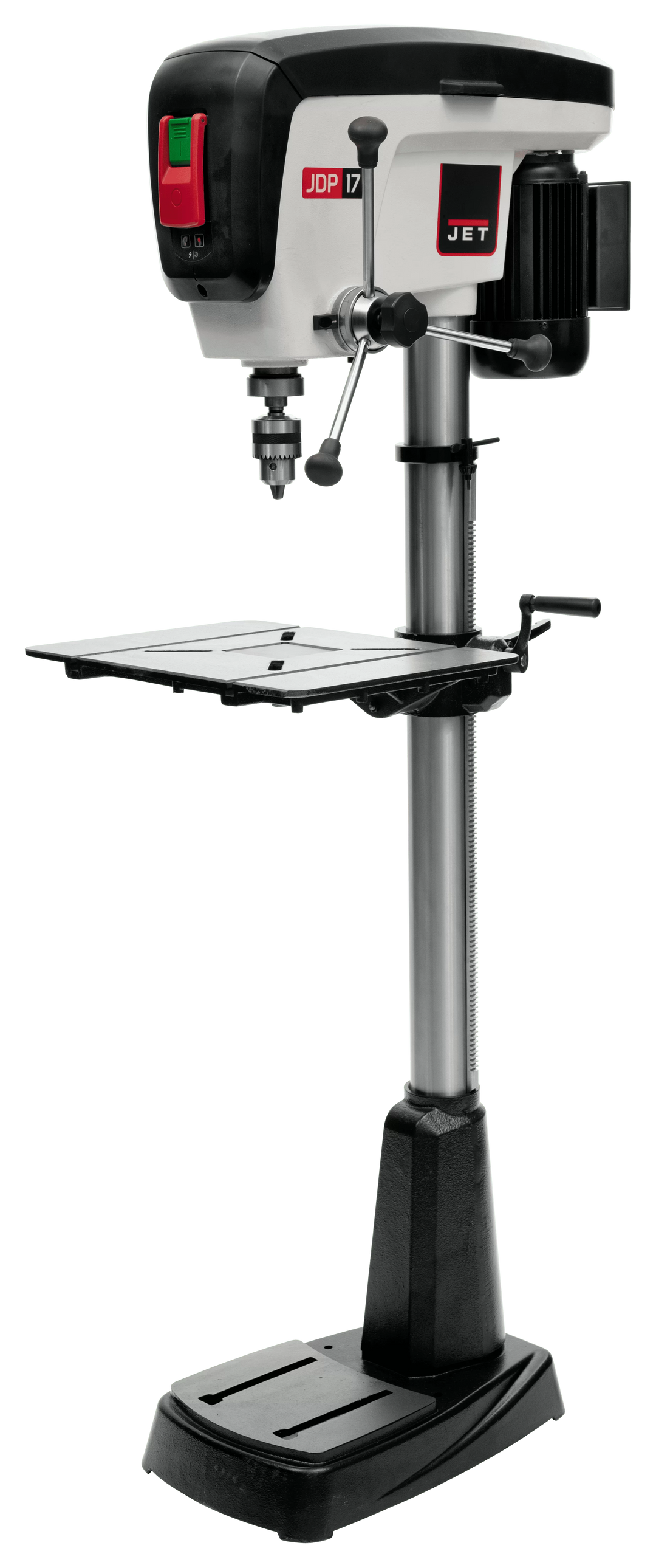

Introducing the new JET JDP-17, 17” Drill Press. From a full 5” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping. CSA Certified.

  • Integrated depth stop makes repetitive drilling quick and easy.
  • Large cast iron base provides stability.
  • One-handed belt tensioning allows for rapid speed changes.
  • Power switch features a safety key and large, paddle-style off button.
  • Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system.
  • Replaceable MDF table insert.
  • Table edge lip designed to make clamping easy.
  • Xacta-X laser system easily identifies the drill center.



Stock Number JT9-716300
Assembled Machine Dimensions (L x W x H) (In.) 28-1/2 x 19 x 65
Chuck Distance to Base (In.) 42-7/8
Chuck Distance to Table (In.) 25-7/8
Chuck Size (In.) 5/8
Column Diameter (In.) 3-5/32
Model Number JDP-17
Motor Power (HP) 3/4
Number of Spindle Speeds 16
Recommended Circuit Size (Amps.) 15
Spindle Distance to Base (In.) 46-1/2
Spindle Distance to Table (Max.) (In.) 30
Spindle Travel (In.) 5
Style (Type) Floor standing Model
Swing (In.) 16-7/8
Table Size (L x W) (In.) 14 x 19
Weight (Lbs.) 187


Operating Instructions & Parts Manual
