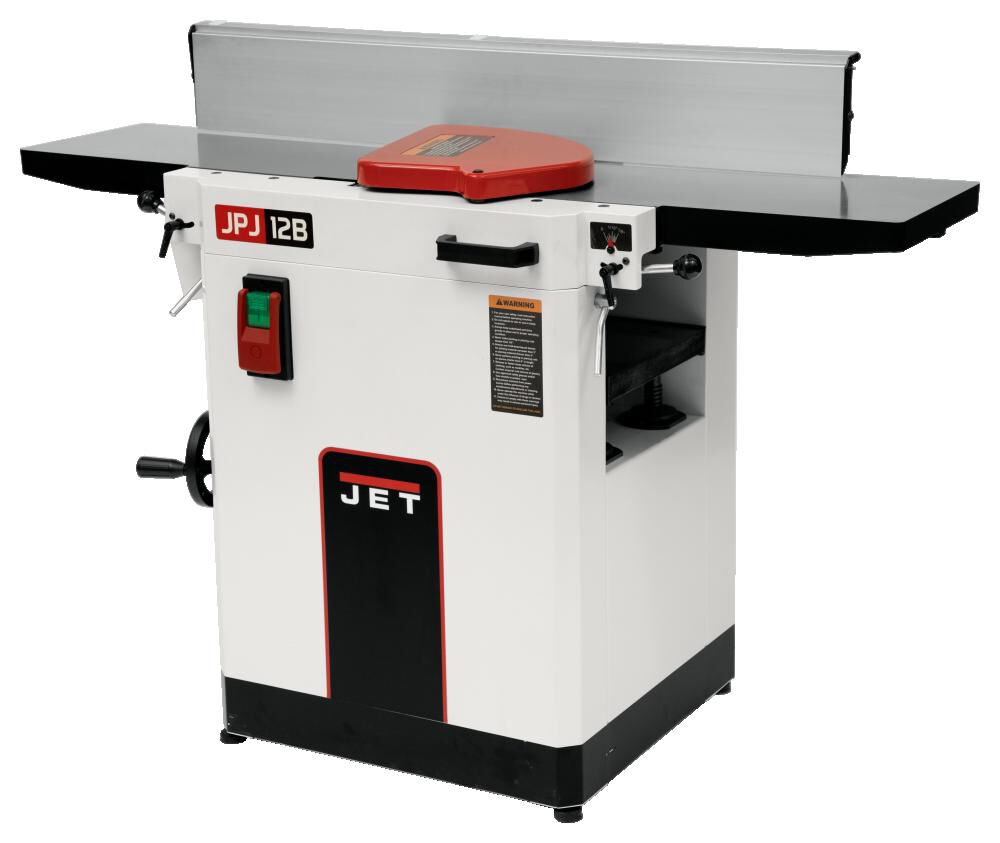

JET 12" Knife Cutterhead Jointer/Planer

JET SKU: 715100
JET 12" Knife Cutterhead Jointer/Planer

JET 12" Knife Cutterhead Jointer/Planer

JET SKU: 715100
Model Number: JET715100
Regular Price $3,999.99

You don’t have to choose between buying a jointer or a planer – with the JPJ-12B, you can have both. Leave it to JET to design a machine that allows quick changeover between jointing and planing functions. This versatile machine features an extra-large aluminum extruded fence with centered controls for quick adjustments, a built-in dust chute capable of handling both planing and jointing operations, and a powerful 3-horsepower motor that can handle the toughest lumber. A heavy-duty, fully welded steel base cabinet houses the motor and the planer table mechanism, while providing solid mounting for the associated controls and support for the jointer table and fence assemblies. Best of all, the fence can stay put when changing over functions.

  • Extremely quick changeover between jointing and planing functions. Fence does not need to be removed.
  • Heavy-duty cast iron tables with a ground finish to ensure accuracy and flatness.
  • Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability.
  • Large handwheel for quick and precise adjustments of planer table.
  • Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments.
  • Three high-speed steel knife cutter head provides rapid cutting and a superior finish.



Stock Number JT9-715100
Cuts Per Minute 15,900
Cutterhead Diameter (In.) 2-3/4
Cutterhead Speed (RPM) 5300.0000
Dust Collection Minimum CFM Required (CFM) 550
Dust Port Outside Diameter (In.) 4
Feed Rate - Planing (FPM) 2 speed 16 to 26 FPM
Fence Positive Stops (Deg.) 90 and 45 R
Fence Size (L x H) (In.) 43-1/4 x 5-7/8
Fence Tilt (Deg.) 90 to 45 R
Jointer Cutting Capacity (W x D) (In.) 12 x 1/8
Jointer Table Size (L x W) (In.) 55x12-1/32
Maximum Depth of Cut - Planing (In.) 5/32
Maximum Planing Thickness (In.) 8-3/4
Maximum Planing Width (In.) 12
Minimum Planing Length (In.) 10
Model Number JPJ-12B
Motor Power (HP) 3
Motor Voltage (V.) 230
Net Weight (Lbs.) 453
Number of Knives 3
Overall Dimensions (L x W x H) (In.) 55-7/16 x 28-15/16 x 40
Overall Height (In.) 40
Planer Cutting Capacity (W x D) (In.) 12 x 8-3/4
Planer Table Size (L x W) (In.) 25 X 12-1/32
Prewired Voltage (V.) 230
Recommended Circuit Size (Amps.) 30
Standard Knife Size (L x W x T) (In.) 12-3/16 x 11/16 x 1/8
Type of Cutterhead Straight Knife
Full Load Amps 15
Running Amps 4.5

Operating Instructions & Parts Manual
