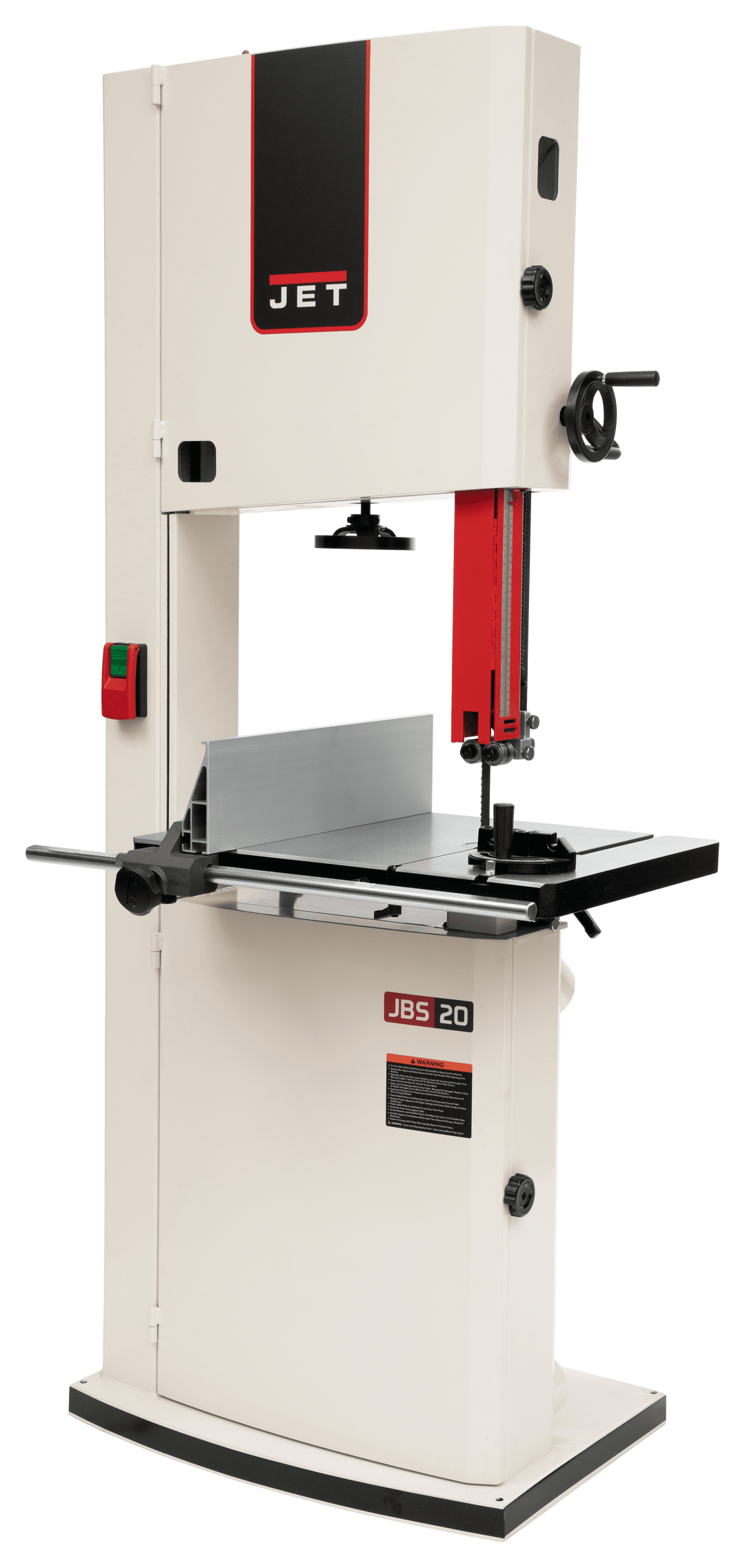

JET 20" Wood Working Band Saw - 5 HP, 1PH, 230V

JET 20" Wood Working Band Saw - 5 HP, 1PH, 230V

by JET
SKU 714850

Model Number: JET714850

$4,299.99 - $4,299.99
$4,299.99
$4,299.99 - $4,299.99
$4,299.99

Designed to perform, the JET 20” bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted for front blade removal and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 20” steel frame bandsaw is engineered to build great projects through superior performance.

  • Blade tracking window provides clear view of blade during tracking.
  • Cast iron handwheels and ergonomic-designed knobs make adjustments smooth and easy.
  • Cast iron trunnion for maximum support and stability.
  • Conveniently located dual 4" dust collection ports catch dust and chips at the source.
  • Easy-to-read blade tension scale can be viewed through upper door window.
  • Heavy duty tensioning with quick release and three settings: full tension, partial tension, and full release.
  • Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support.
  • Round table insert features leveling screws for precise adjustment.
  • Single knob adjustment simplifies the blade tracking process.
  • Table tilts 5° left and 45° right to accommodate a wide variety of cuts.



SPECIFICATIONS

Stock Number JT9-714850
Band Saw Size/Wheel Diameter (In.) 20-1/4
Cutting Capacity Height (In.) 16
Cutting Capacity Width (In.) 20.0000
Dust Collection Minimum CFM Required (CFM) 400
Minimum Saw Blade Width (In.) 1/8
Model Number JWBS-20-5
Motor Amps 22
Motor Power (HP) 5
Recommended Circuit Size (Amps.) 40
Table Height from Floor (In.) 37
Table Size (L x W) (In.) 27-1/4 x 20 x 1-5/8


Operating Instructions & Parts Manual
