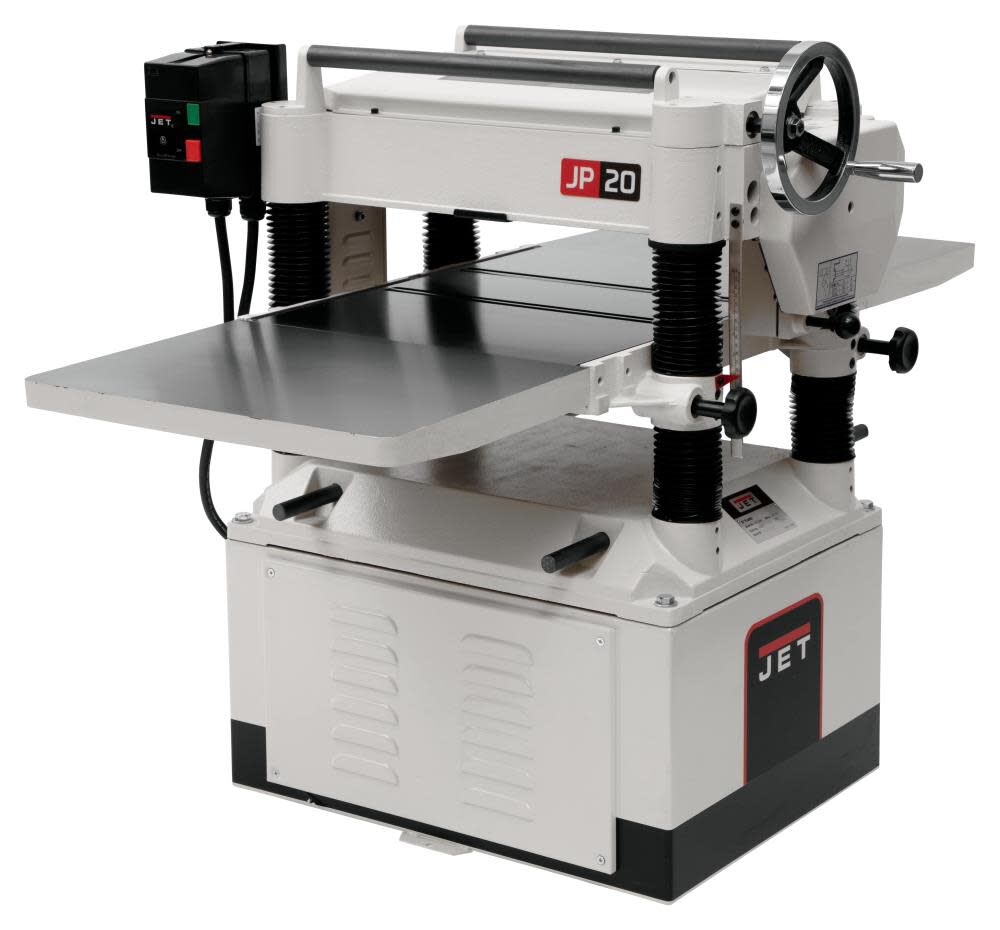

JET 20" Helical Cutterhead Planer
Model Number: JET708544
The JWP-208HH-1 Helical Head Planer quickly and quietly transforms rough lumber into smooth boards, with a full 20” planing width. Its heavy-duty cast iron and steel construction keeps the workpiece steady and supported, while the conveniently located two-speed gear box with an automatic chain tensioner allows for quick and easy feed rate adjustments. This machine means business with a powerful 5 HP induction motor combined with a helical insert cutterhead housing 92 staggered carbide knives for a superior finish and quieter cut. You’ll appreciate the sets of three steel infeed and outfeed rollers to help prevent annoying snipe. A large cast-iron precision ground table with smooth-as-glass surface makes this planer a beautiful addition to the shop.
- 1/16" Increment height scale lets you make the most precise adjustments for fine cuts.
- Cast iron infeed and outfeed tables come with the machine.
- Large handwheel with positive gear drive allows for quick and accurately table adjustments.
- Magnetic controls provide long life and reliability.
- One-piece welded steel base offers solid support and stability.
- Positive gear drive moves table quickly and accurately.
SPECIFICATIONS
| Stock Number | JT9-708544 |
|---|---|
| Cutterhead Diameter (In.) | 3-3/16 |
| Cutterhead Speed (RPM) | 5000.0000 |
| Dust Collection Minimum CFM Required (CFM) | 400 |
| Dust Port Outside Diameter (In.) | 5 |
| Knife Size (L x W x T) | 15 x 15 x 2.5 |
| Maximum Full Width Depth of Cut (In.) | 3/32 |
| Maximum Planing Thickness (In.) | 8 |
| Maximum Planing Width (In.) | 20 |
| Minimum Planing Length (In.) | 6-3/4 |
| Model Number | JWP-208HH-1 |
| Motor Amps | 27 |
| Motor Power (HP) | 5 |
| Motor Voltage (V.) | 230 |
| Number of Speeds | 2 |
| Prewired Voltage (V.) | 230 |
| Style (Type) | Floor standing Model |
| Table Size (L x W) (In.) | 25-3/4 x 20 |
