JET 13" Planer/Molder

by JET
SKU 708524

Model Number: JET708524

Original price $1,699.99 - Original price $1,699.99
Original price
$1,699.99
$1,699.99 - $1,699.99
Current price $1,699.99

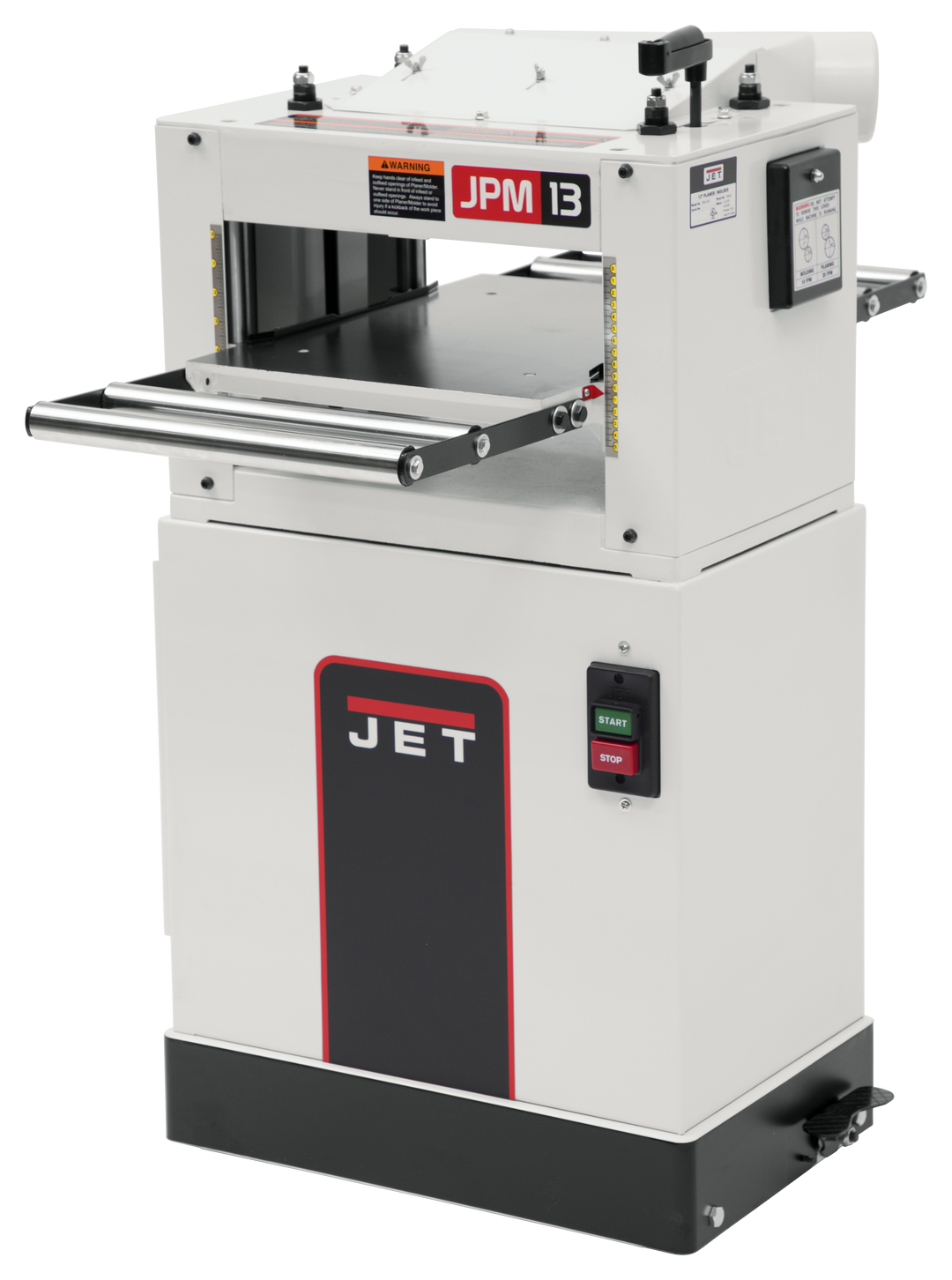

The JET JPM-13CS 13" Closed Stand Planer / Molder boasts a totally enclosed fan-cooled 1.5 HP motor which uses two matched V-belts to deliver smooth, consistent power to the cutter head. The sturdy cast iron table and base provide strength and reduce vibration during use. The Three cutter head design produces a superior finish in either application. Built in lockable caster add support and stability to the machine while allowing it to be maneuverable.

  • Exclusive angled 4" dust port keeps the dust hose out of the way while providing efficient chip and dust removal.
  • Four precision-ground column design feature adds stability when raising and lowering the table.
  • Infeed and outfeed rollers are adjustable and rubber-coated to support your workpiece without marring the wood.
  • Molding cutter head accommodates over 40 standard molding cutter sets; most 2" or smaller heads can be installed without removing the planning knives to save you set-up time.
  • Top-mounted height adjustment handle is easy to use for quick table height changes.
  • Two speed gear box has feed rates set for optimum planing and molding results.



SPECIFICATIONS

Stock Number JT9-708524
Cutterhead Speed (RPM) 4500.0000
Dust Port Outside Diameter (In.) 4
Feed Rate - Molding (FPM) 10
Maximum Planing Thickness (In.) 6-1/8
Model Number JPM-13CS
Motor Amps 15/7.5
Motor Power (HP) 1-1/2
Number of Knives 3
Prewired Voltage (V.) 115
Style (Type) Planer/Molder


Operating Instructions & Parts Manual
