JET 25" Shaper

JET SKU: 708309
JET 25" Shaper

JET 25" Shaper

JET SKU: 708309
Model Number: JET708309
Regular Price $2,799.99

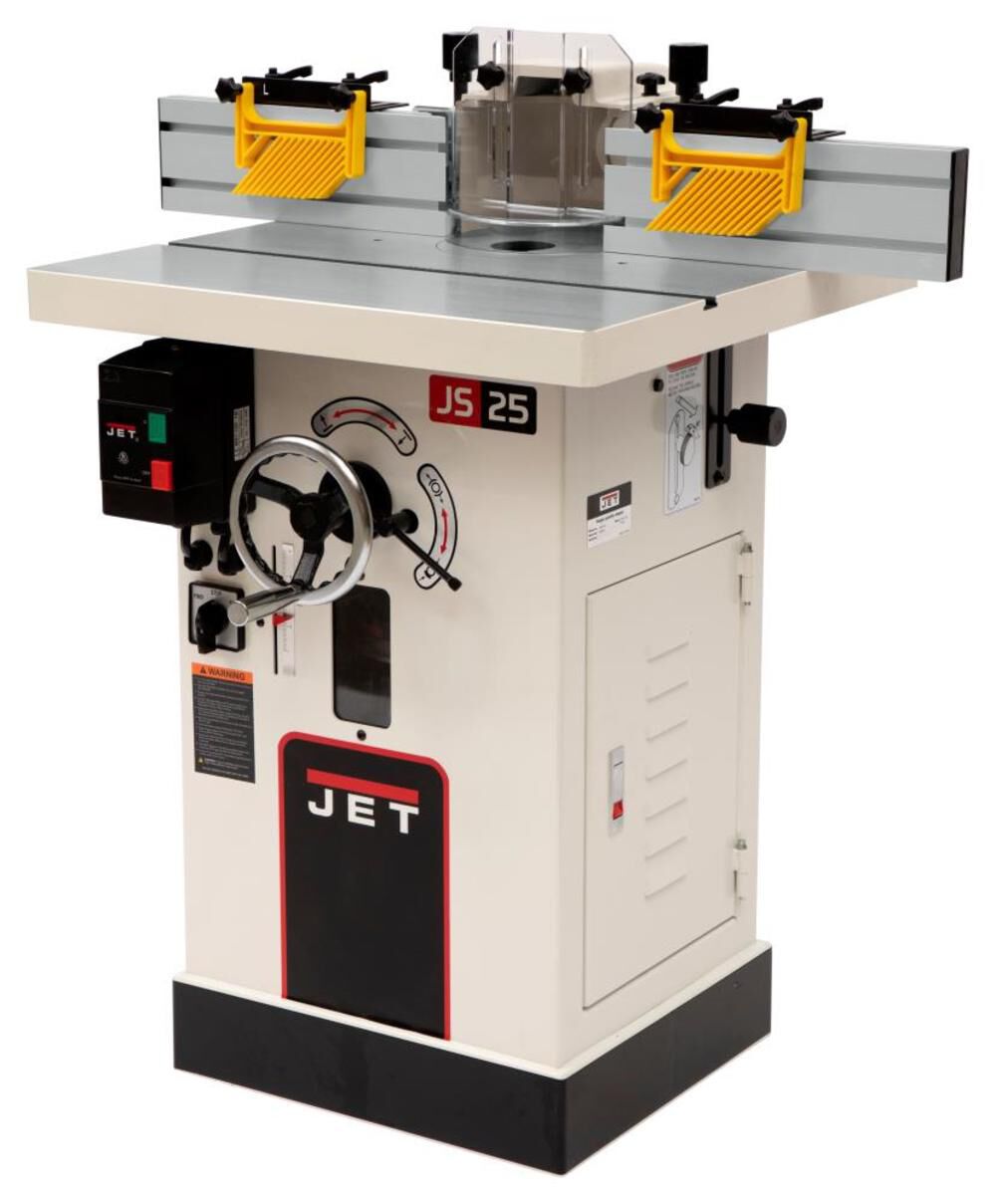

The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25”x 25-1/2” precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4” dust port.

  • Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments.
  • Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs.
  • Reversible spindle speeds for diverse shaping jobs.
  • Spindle lock for safe and easy cutter set up.
  • Starting Pins for irregular shaping.
  • Two-speeds let you select the best speed and torque for different cutter diameters.
  • V-belt transfers maximum power to the spindle.



Stock Number JT9-708309
Dust Collection Minimum CFM Required (CFM) 600
Dust Port Outside Diameter (In.) 4
Model Number JWS-25X
Motor Amps 16
Motor Power (HP) 3
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Recommended Circuit Size (Amps.) 30
Spindle Travel (In.) 3-1/2
Table Height from Floor (In.) 33
Table Inserts (In.) 2
Table Opening Diameter (In.) 6-9/32
Table Size (L x W) (In.) 25-1/2 x 25

Operating Instructions & Parts Manual
