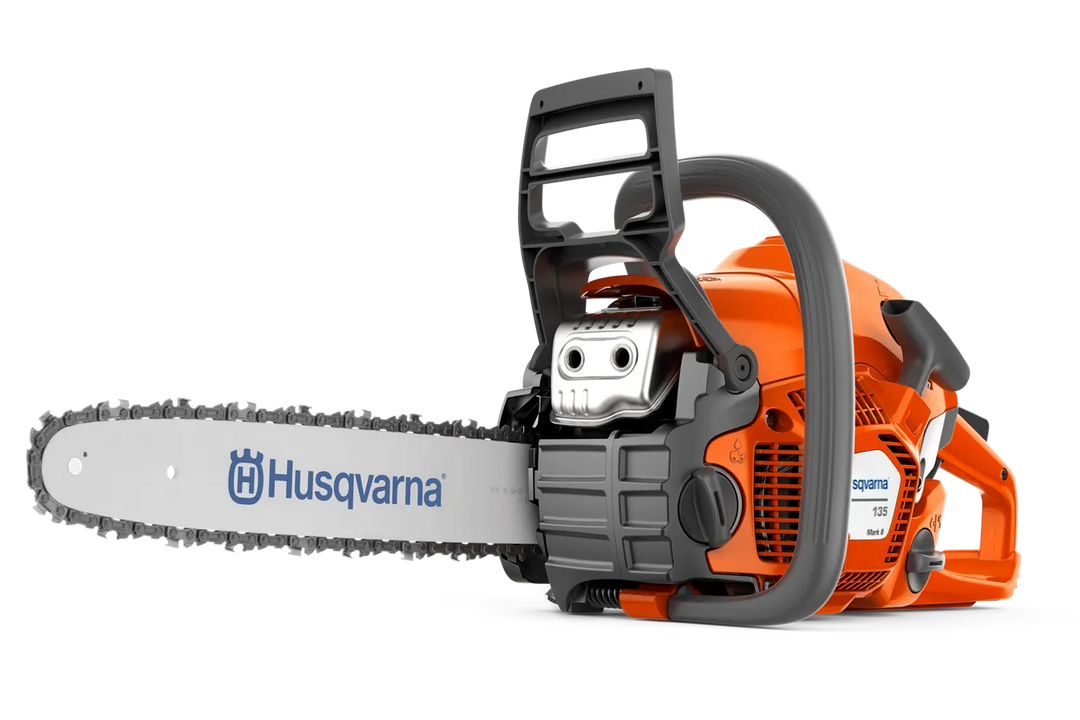

HUSQVARNA 135 Mark II 16" Gas Chainsaw
by Husqvarna
SKU 967861816
Model Number: HUS967861816
Original price
$299.99
-
Original price
$299.99
Original price
$299.99
$299.99
-
$299.99
Current price
$299.99
Get the job done the first time with the Husqvarna 135 Mark II. This reliable gas saw features Smart Start® and LowVib® technology for easy, comfortable use. Our proprietary X-TORQ® engine delivers superior performance, increased fuel efficiency and low emissions. And Air Injection™ technology improves engine life by expelling larger dust and debris particles before they reach the air filter.
- POWERFUL & EFFICIENT X-TORQ® ENGINE: X-Torq® engines deliver a great power and torque thanks to highly efficient combustion.
- LOWVIB® TECHNOLOGY: Dampeners between the engine and chassis significantly reduce vibrations so you can work more comfortably.
- SMART START® TECHNOLOGY: Specially-designed engine and starter for easy and fast starting with minimum effort. Resistance in the starter cord is reduced by up to 40%.
- QUICK START WITH AIR PURGE: Air purge removes air from carburetor and fuel system for easy starting.
- SIMPLE STARTING: Stop switch automatically resets to ON so chainsaw is ready for next use.
- AIR INJECTION™ TECHNOLOGY: Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life.
- COMBINED CHOKE/STOP CONTROL: Provides easier starting and reduces the risk of engine flooding.
- INERTIA-ACTIVATED CHAIN BRAKE: Reduces the likelihood of injury due to kickback.
- SIDE CHAIN TENSIONING: Quickly and easily adjust the chain.
ENGINE
Power Output | 2.1 hp |
---|---|
Cylinder Displacement | 2.3 cu.inch |
Maximum Power Speed | 9,000 rpm |
Idling Speed | 3,000 rpm |
Torque, Max. | 1.84 Nm |
Torque, Max. At RPM | 8,000 rpm |
Clutch Engagement Speed (±120) | 4,000 rpm |
Fuel Consumption | 725 g/kWh |
Fuel Consumption | 1.595 lbs/h |
Spark Plug | NGK BPMR7A |
Electrode Gap | 0.022 in |
Ignition Module Air Gap | 0.012 in |
Oil Pump Type | Automatic |
EMISSION
Exhaust Emissions (CO2 EU V)
|
804 g/kWh |
---|
EQUIPMENT
Bar Length (inch) | 16 in |
---|---|
Recommended Bar Length, Min | 14 in |
Recommended Bar Length, Max | 16 in |
Chain Type | S93G |
Gauge | .050" |
Pitch | 3/8" mini |
Sprocket Type | Spur 6 |
DIMENSIONS
Weight (excl. cutting equipment) | 10.36 lbs |
---|
LUBRICANT
Lubricant Type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
---|---|
Oil Tank Volume | 0.549 US pint |
Oil Tank Volume | 0.26 l |
SOUND & NOISE
Sound Power Level, Guaranteed (LWA) | 116 dB(A) |
---|---|
Sound Power Level, Measured | 114.34 dB(A) |
Sound Pressure Level At Operators Ear | 102 dB(A) |
VIBRATION
Equivalent Vibration Level (ahv, eq) Front Handle | 3.72 m/s² |
---|---|
Equivalent Vibration Level (ahv, eq) Rear Handle | 5.5 m/s² |
