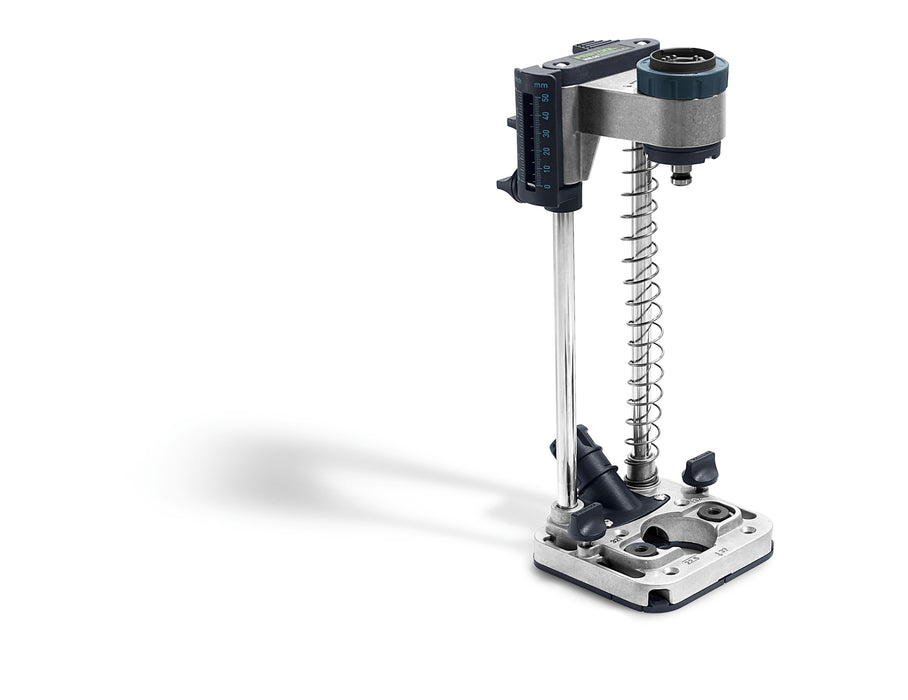

FESTOOL Mobile drilling attachment MB 40-Set

Drill straight. Anywhere.

Get straight, accurate holes every time—no guesswork. The MB 40 helps you drill perfectly at 90 degrees, whether you're on the jobsite or in the shop. Set your depth, line up your holes, and drill clean through wood, metal, or plastic. Need to drill straight down, into end grain, or make a row of holes? No problem. You can hook up dust collection right to the base, so you always see your mark. It’s another FastFix add-on that works with your Festool cordless drill and gives you more ways to get the job done right.

Key Benefits

• Dead-on accurate. Built tough and stable for clean, precise holes.
• Dial it in. Set exact depth with easy-to-read scale—zero position included. Goes up to 2" (50 mm), marked in both mm and inches.
• Built to adapt. Comes with side fence, end-stop, and guide rail adapter for edge work or long panels—repeatable and exact every time.
• For 32 mm system. Hole series feature makes cabinet drilling simple.
• Fast setup. Tool chuck locks in by hand—no extra tools needed. Use CENTROTEC for quick bit swaps.
• Dust extractable. Hook up to a CT Dust Extractor with a D27 hose for a clean workspace.
• Line it up. Base plate markings help you place it right the first time.
• Stays put. Rubber base grips tight—no slipping while you drill.
• All in one box. Packed in a Systainer³ to keep everything in order.

Features

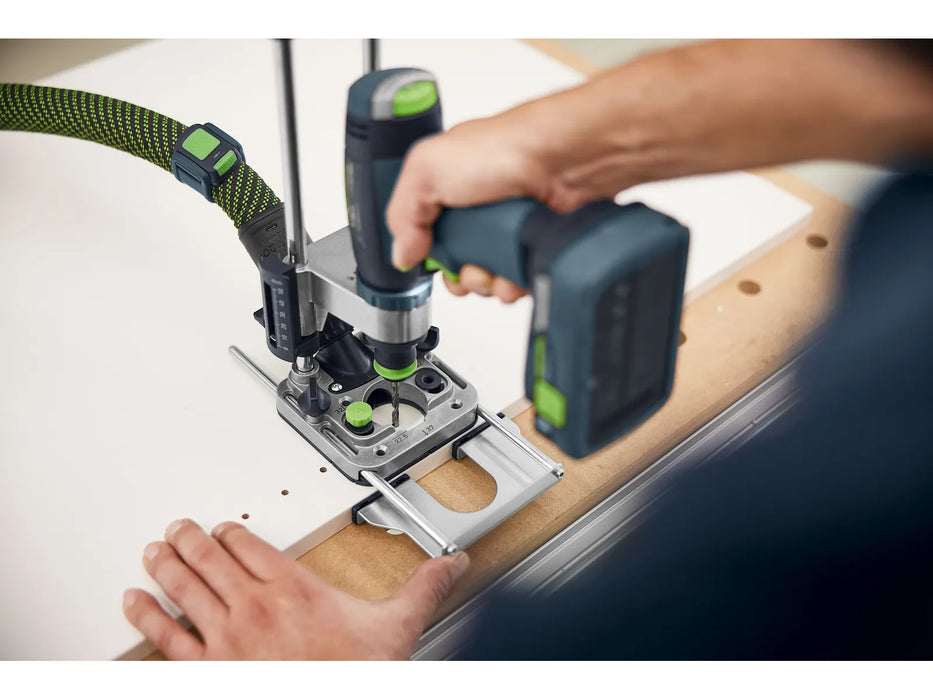

• Clean drilling. Hook up a CT Dust Extractor to keep the hole and your workspace clean.
• Quick tool changes. Snap in Festool cordless drills and hammer drills—no tools needed.
• Set your depth. Drill up to 2" (50 mm) deep with clear depth markings in mm or inches—perfect for cup hinges or series drilling.
• 32 mm system ready. Comes with 3 mm and 5 mm pins. Set it once—the pin stays in place for the whole run.

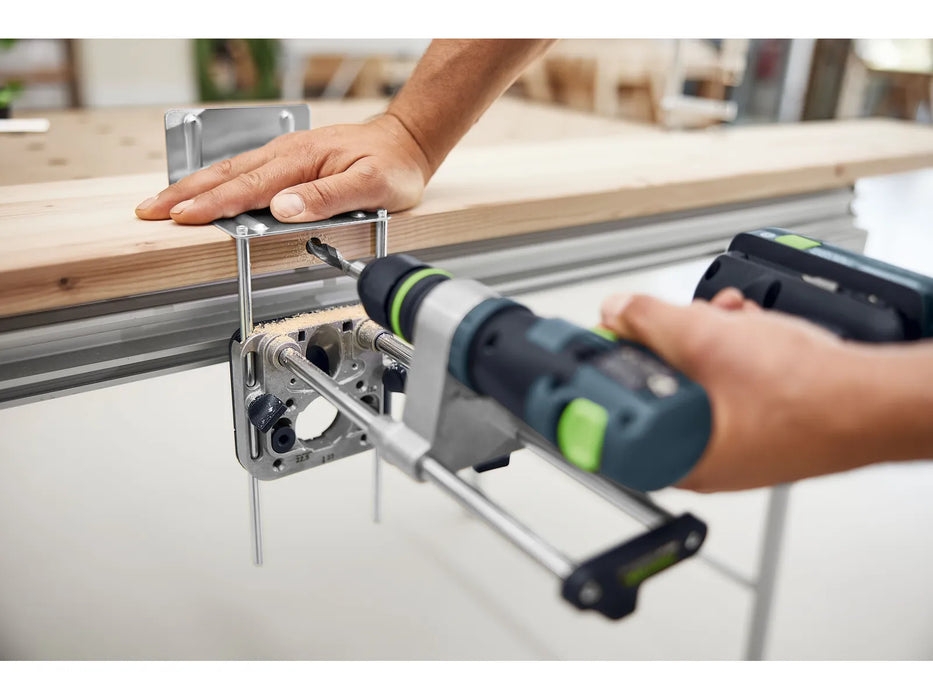

• Edge drilling made easy. Drill straight and parallel to edges, fast and accurate.
• Perfect for panel edges. Get clean, accurate holes right where you need them.

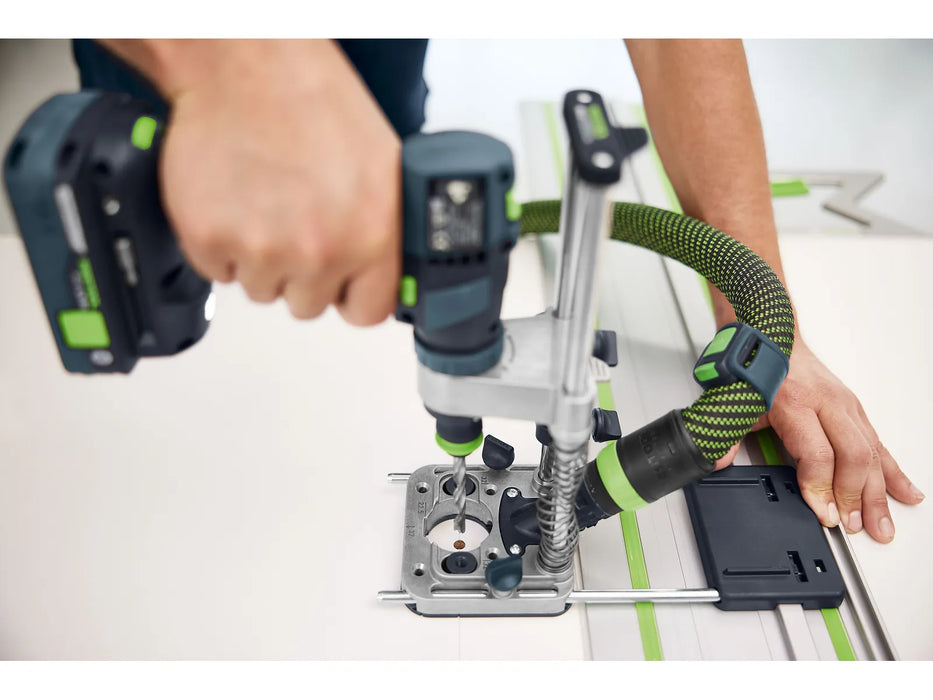

• Drill in a straight line. Guide rail adapter snaps on without tools—great for long rows of holes.
• Custom setup. Remove the spring for special jobs where you need more control.
• Mountable base. Bolt it to your workpiece or custom jig using the holes in the base plate.
• Pinpoint accuracy. Helps with lineups, hinge drilling, and consistent hole spacing.

For clean, straight holes at 90 degrees—every time. The MB 40 is built for that. It’s solid, stable, and easy to dial in your depth with the built-in scale, stops, and adapters. • Bring the tool to the work, not the other way around. The MB 40 is compact and easy to carry, so you can take it to any jobsite. • Made to fit your needs. The FastFix design lets you quickly switch setups to drill into edges or surfaces—all with the same precision.

Technical Details: Weight 3.1 lbs (1.40 kg); Dust extraction connection dia. 1-1/16" (27 mm mm); Height 12-1/4" (312.00 mm); BASE 4-3/8"x4-1/2" (110 mm x 114.00 mm mm); Max. drilling diameter for softwood (Forstner drill bit) 1-9/16" (40.00 mm); Max. drilling diameter for softwood (auger bit) 5/8" (16.00 mm); Max. screw diameter (templates/fixtures) 5/32" (4.00 mm); Setting range of depth stop 0 - 2" (0.00 mm - 50.00 mm mm); Stroke without depth stop, without spring 8" (203.00 mm); Stroke with depth stop, incl. spring 7-3/8" (187.00 mm); Holder FastFix

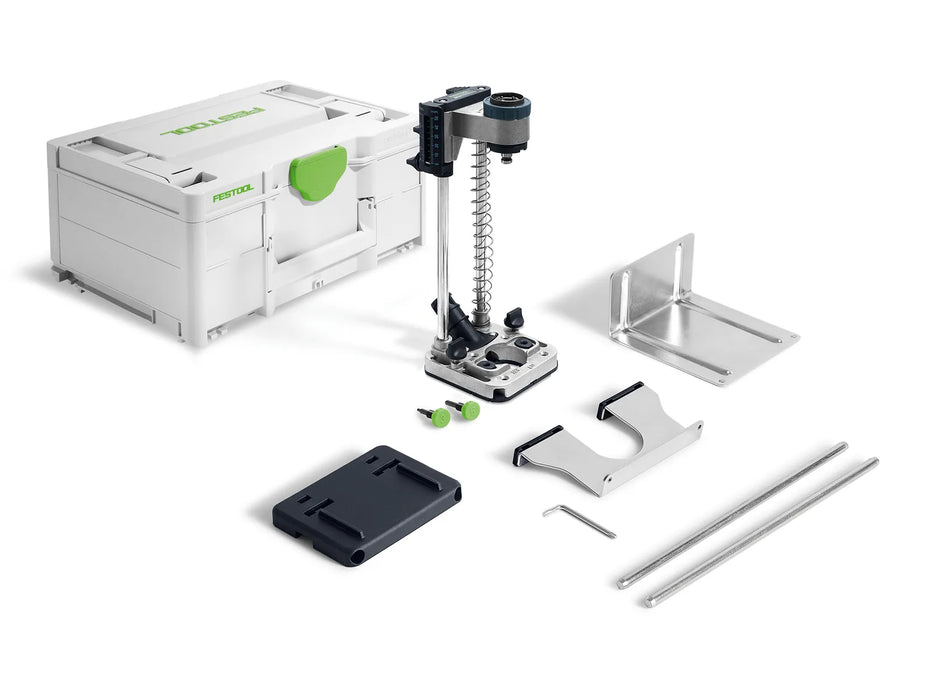

Scope of Delivery: FSA-MB 40 guide rail adapter, parallel side fence incl. stop for end face holes (PA-MB 40), hole series pin 5 mm, hole series pin 3 mm, TX 15 key, Systainer SYS3 M 187
