FESTOOL Underframe UG UG-CSC-SYS

Easy to move. Easy to use. Ideal with the CSC SYS 50 cordless table saw.

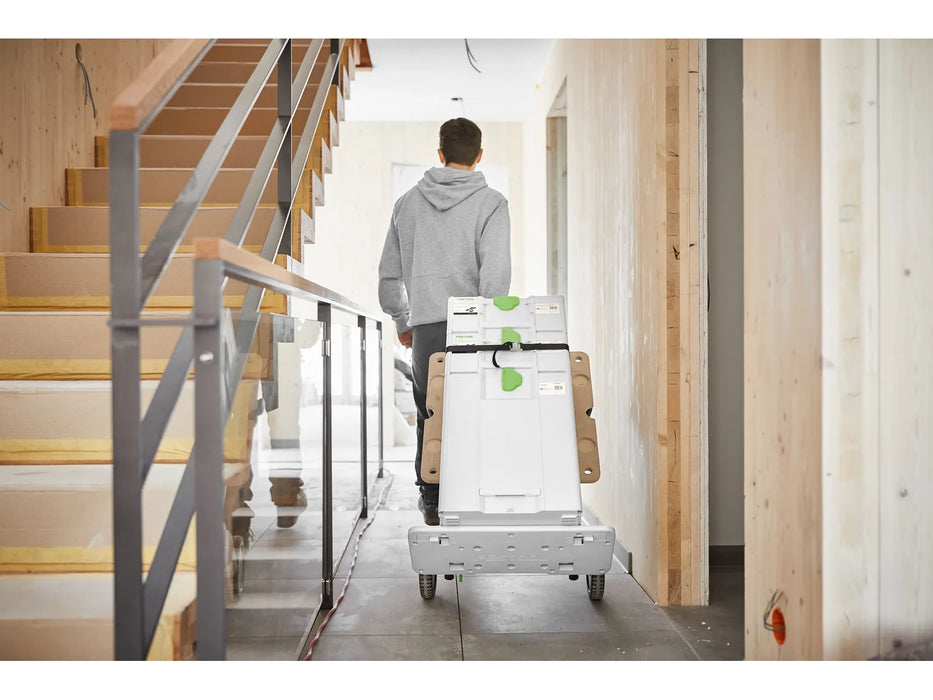

The UG-CSC-SYS underframe cart is the ideal 3-in-1 solution when doing jobs with the CSC SYS 50. It acts as a hand cart for moving the saw from the vehicle to the point of use – allowing you to easily roll an entire tower of Systainers of up to 176 lbs (80 kg) to the jobsite. The foldaway legs can be easily deployed, giving you a worktable of 23" x 23" (58 x 58 cm) in size; a practical alternative to folding sawhorses. Materials are securely clamped on the surface via the indexable clamping points on top. The cart demonstrates its full ability in combination with the CSC SYS 50 cordless table saw. The saw indexes to be securely positioned in the holes of the work top – all while putting you at an ergonomicwork height. The legs simply remain folded in when using the CSC SYS 50 cordless table saw on the ground. The bottom plate that just served as a wheeled hand truck for the Systainers is now set up as an ideal work support for long materials for all rip cuts, cross cuts and angled cuts.

Key Benefits

• Versatile: Handtruck, worktable, and underframe support for the CSC SYS 50 cordless table saw - all in one
• Tough: Transport a Systainer tower up to 176 lbs (80 kg). The Systainers engage securely on the base plate. Secure with a lashing strap
• Saves space: Folded together, the underframe takes up barely any space in a vehicle
• Practical: The foldaway legs can be deployed instantly. Unevenness in the floor is compensated for by an adjustable foot on one of the foldaway legs
• Stable support: The typical Festool hole pattern of the worktop allows secure clamping of materials with screw clamp and lever clamps
• A perfect fit: The ideal combination with the CSC SYS 50 cordless table saw. Creates an ergonomic working height, while also providing stable support for long materials. The legs remain folded in when working close to the ground (working height 9-21/32" (24.5 cm)

Features

• Rugged wheels are designed for a load of up to 176 lbs (80 kg).
• Systainers engage securely in the base plate. They can also be secured with a lashing strap.
• The handle for manuevering is accessible at any time due to its clever shape. If the underframe is set up as a worktable, it is located underneath the work space and is never in the way.
• Tool-free leg deployment; unevenness in the floor is easily compensated for by the adjustable foot.
• Simply turn the base plate – and you already have a work space of nearly 23" square (58 x 58 cm). Working height: 26-3/4" (68 cm).
• The worktable is designed for up to 220 lbs (100 kg).
• Protective feet that can be folded out protect the work space when the underframe is being used as a hand cart. This helps to prevent damage to the work top surface.
• The hole pattern of the work top allows secure clamping of materials with Festool screw clamps or lever clamps.
• The CSC SYS 50 cordless table saw has a convenient and ergonomic working height.

Technical Details: Weight 40.35 lbs (18.10 kg); Dimensions (L x W x H) 42 x 22-27/32 x 9-21/32" (1067 mm x 580.00 mm x 245.00 mm mm); Table dimensions 22-27/32 x 22-27/32" (580 mm x 580 mm mm); Tabletop height: High working position 26-1/4" (677.00 mm); Tabletop height: Low working position 9-21/32" (245.00 mm); Load capacity as worktable/hand truck 220 / 176 lbs (100 / 80 kg)
