FESTOOL Cordless Drill CXS 18 HPC 4,0 I-Set

The new champion of compact drills. With 18 V power.

Light, compact and impressively powerful - the popular compact drill design with more torque and power now on the 18-volt platform. The 18-volt CXS/TXS 18 compact drill-driver is both small and power for most everyday applications – perfect also for narrow spaces or corners. Fast tool change with the tool-free FastFix interface and the CENTROTEC system. Practical and useful details like the magnetic onboard bit holder, the adjustable LED light and the lid compartment Systainer³ make the CXS 18 a compact powerhouse you will reach for time and time again.

Key Benefits

• The work area is optimally lit by LED lighting that can be activated by the trigger or turned on or off manually (in conjunction with a Bluetooth® battery pack, can also be controlled via the Festool App)
• For left-handed people, the Festool App can be used to reverse the right-hand/left-hand selector switch such that the switch position is aligned with your preferences, changing the rotation settings of the drill (only in combination with a Bluetooth® battery pack)
• Easy to store, easy to carry. The CXS 18 comes in a Systainer³ and can be seamlessly integrated into the Systainer Systems van racking equipment for easy transportation from the shop to the site
• Transportable. The Systainer³ can be seamlessly integrated into Systainer Systems van racking equipment for easy transportation from the shop to the site
• 13 torque settings and torque switch-off for precise fastening
• Durable, removable belt clip that can be mounted on either side
• Impressive ergonomics and low weight for easy drilling and fastening
• The compact, ergonomic shape makes work easier, even in tight spaces
• The ergonomic C-shape of the handle puts the user more in line with the bit for more precise work and less fatigue
• Quick, tool-free conversion to drilling, driving, angular drilling and angular driving thanks to the FastFix interface
• The depth stops and eccentric adapter also enable depth-limited driving close to edges
• Includes removable CENTROTEC tool chuck and 3/8" (10 mm) FastFix keyless chuck
• Numerous attachments for a variety of applications. All attachments of the current 18 V drills are compatible with the CXS 18 and TXS 18
• High-quality 18 V battery pack with protective rubber coating, LED charge indicator and capacity for long runtimes and long-life
• Longer runtimes per charge than conventional brushed motors and with longer life thanks to brushless EC-TEC motor
• Integrated magnetic bit holder

Features

• With a length of 6-5/32" (15.6 cm) and a height of 8-1/8" (20.6 cm) (incl. battery), the CXS 18 is extremely compact.
• Compact in size with full-size capabilities with the power of an 18 V battery. Ideally suited for all applications with screws up to 1/4" (6 mm). All 18-volt lithium-ion battery packs fit on the CXS 18 (except for the Ergo battery pack).
• The CXS 18 also performs impressively when working with Forstner drill bits up to 1-3/8" (35 mm) and screws up to 1/4" x 9-1/2" (6x240 mm) in softwood.
• With the integrated LED light, you can work precisely even in dark corners – continuous lighting, afterglow or LED off can be controlled via the onboard dial. The brightness and duration of the afterglow can also be customized via the Festool App.
• Always at your side, keeping your hands free : The belt clip can be positioned for right and left-handed users.
• Easy configuration of the right-hand/left-hand selector switch. LED control to adjust the brightness, the duration of the afterglow and the duration of the continuous light. Easily adjusted with a Bluetooth® battery and the Festool App.
• The integrated bit holder provides space for multiple bits – magnetically retained against falling out.
• For instantly changing between drilling, countersinking and driving: The CENTROTEC tool chuck, is a chuck and bit holder in one. For use with numerous CENTROTEC accessories. Half the size and weighs 80% less than a standard chuck; exclusively found only on Festool drills.
• Owing to the smart FastFix interface, all attachments of the current 18 V drills are compatible with the CXS 18. No other compact driver offers this many attachments!
• The angle attachment is perfect for work around corners and reaching concealed screws at tight angles. Bits can also be inserted directly into the holder of the spindle for work in narrow spaces.
• The chuck accepts bits up to 3/8" (10 mm) shank and is included with the drill – for all bits with a smooth shank. Tool-free mounting via the FastFix interface.
• With the rear handle position, the ergonomic C-shape puts the user more in line with the bit for more precise work and less fatigue.
• Also comfortable for overhead work thanks to the ergonomic design and low weight.
• A compact powerhouse: with 18 V batteries, the CXS 18 tackles daily challenges. 13 available torque settings for precise control.
• The Systainer with lid compartment, provides an organized way to store the accessories you need, organized and easily accessible boosting jobsite efficiency. Also ideal for the bit set supplied. In addition, the transparent lid allows you to see everything at a glance.

Technical Details: Battery voltage 18.00 V; Gears 2; Idling speed, 1st gear/2nd gear 0 - 470/0 - 1600 RPM; Battery capacity 4.00 Ah; Drive type {Akku}; Drilling diameter, wood/steel 1-3/8” (35 mm) /3/8” (10 mm) ; Weight 1.54 lbs (0.70 kg); Chuck range 1/32” – 3/8” (1 – 10 mm); Torque setting 1st gear 9.7 in-lbs (1.10 Nm) - 70.8 in-lbs (8.00 Nm) ; Max. torque, wood/steel 194.7 in-lbs (22.00 Nm) /354.0 in-lbs (40.00 Nm) ; Torque setting 2nd gear 3.5 in-lbs (0.40 Nm) - 20.4 in-lbs (2.30 Nm)

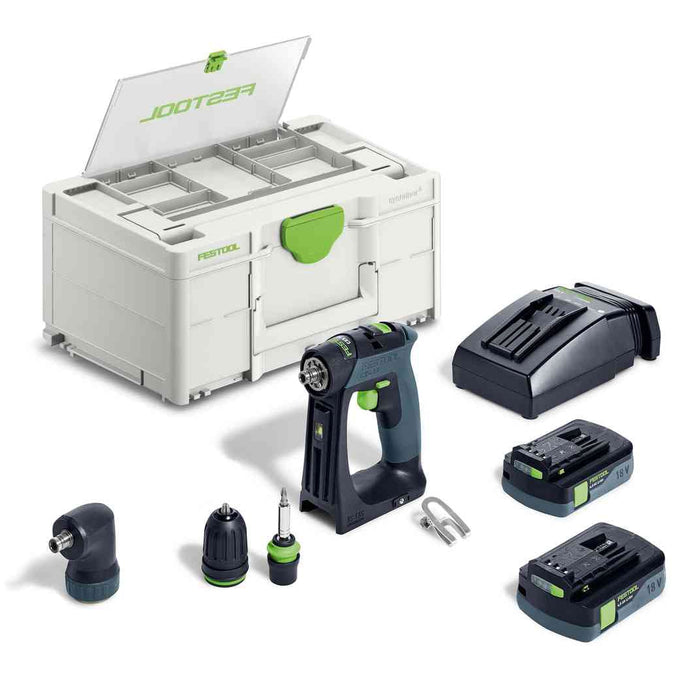

Scope of Delivery: 2 x BP 18 Li 4,0 HPC-ASI battery pack, rapid charger TCL 6, CENTROTEC BH 60 CE Imp magnetic bit holder, CENTROTEC Chuck, AN-XS right-angle adapter, FastFix keyless chuck 3/8" (10 mm), PH 2 bit, Belt clip, Systainer SYS3 DF M 187
