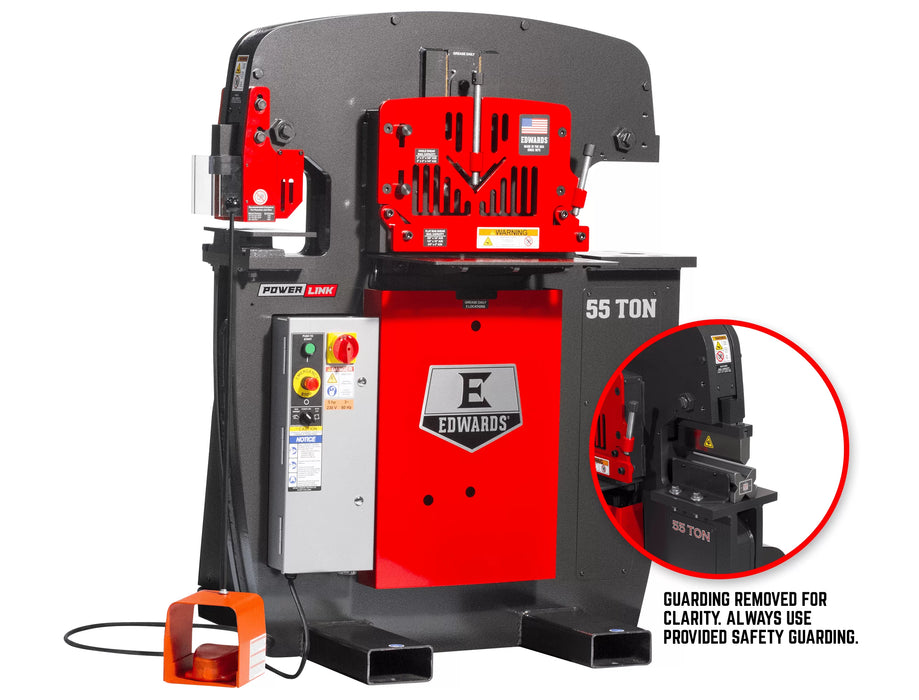

EDWARDS 55 Ton Ironworker 1 Phase, 230 Volt, PowerLink, 10" Brake
EDWARDS 55 Ton Ironworker 1 Phase, 230 Volt, PowerLink, 10" Brake
This 55 Ton Ironworker includes a factory-installed 10" brake, provides power for large projects, and offers the ability to customize one of its four workstations with 11 interchangeable attachments, and 17 additional accessories to help improve operator accuracy and productivity. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. Great for general use from medium size shops to full factory maintenance departments, the compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine. The PowerLink™ System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools.
- Adjustable electric stoke control.
- ANSI B11.5-1988(02) Compliant Guarding.
- Bright LED lights increases visibility.
- Electric foot pedal with integrated jog control.
- ETL Certified Controls.
- Integrated Lock-out/Tag-out system with E-Stop for added safety.
- Optimized workstation heights for improved efficiency.
- Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes.
- Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life.
| Stock Number | ED9-55231522 |
|---|---|
| Amps | 23 |
| Angle Shear Max Capacity 1/4" | 3 x 3 |
| Angle Shear Max Capacity 3/8" | 4 x 4 |
| Angle Shear Work Height (In.) | 39-7/8 |
| Cylinder (In) | 2-1/2" Ram |
| Flat Bar Shear Max Capacity 1/2" | 4 |
| Flat Bar Shear Max Capacity 3/8" | 14 |
| Flat Bar Shear Max Capacity (In.) | 3/8 x 141/2 x 123/4 x 4 |
| Flat Bar Shear Max Square Capacity (In.) | 7/8 |
| Flat Bar Shear Work Height (In.) | 34-1/2 |
| Hydraulics (GPM) | 3-1/2 |
| Hydraulics (PSI) | 2500 |
| Model Number | 55231522 |
| Open Workstation Throat Depth (In.) | 11-3/16 |
| Open Workstation Work Height (In.) | 34-1/2 |
| Opt. Coper Notcher Work Height (In.) | 39-1/2 |
| Product Dimensions (In.) | 36-1/8 x 44-3/8 x 55-1/4 |
| Punch Max Capacity (In.) | 1-16 diam. In 5/8 mild steel |
| Punch Open Height (In) | 8-1/8 |
| Punch Rating (Tons) | 55 |
| Punch Shut Height (In) | 6-7/8 |
| Punch Stroke (In.) | 1-1/4 |
| Punch Throat Depth (In.) | 7-1/2 |
| Punch Work Height (In.) | 36-9/16 |
| Rating (Tons) | 55 |
| Reservoir (Gal.) | 7 |
| Shipping Dimensions (L x W x H) (In.) | 45 x 51 x 62 |
| Valve Pressure (PSI) | 2750 |
| Weight (Lbs.) | 2480 |
