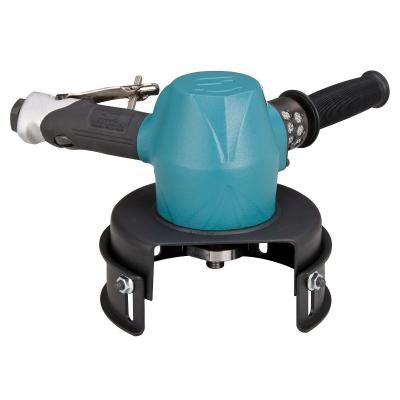

DYNABRADE 6" (152 mm) Dia. Type 11 Vertical Cup Wheel Grinder

SKU 53243

Model Number: DYN53243

Original price $1,434.99 - Original price $1,434.99
Original price
$1,434.99
$1,434.99 - $1,434.99
Current price $1,434.99
  • 3 hp, 6,000 RPM, Gearless, Rotational Exhaust, 5/8"-11 Male Spindle Thread.
  • Ideal for heavy-duty applications in foundries and shipyards. Fast stock, rust and scale removal.
  • Governor-controlled air motor maintains tool RPM under heavy load. Over-speed shut-off feature ensures maximum operator safety. Motor is gearless with less wearable parts, ensuring reduced maintenance and less down-time.
  • Insulated tool handle minimizes cold air transmission to the hand. Handle position is adjustable for operator comfort. Includes safety-lock throttle lever. For peak performance, use of optional 95870 Air Hose-1/2" (13 mm) diameter is recommended.
  • Model accepts optional Type 11 Cup Wheels, 6" (152 mm) diameter. Wheel NOT included with tool. Covers more area in less time!



SPECIFICATIONS

Air Consumption (SCFM) 89.0
Power (hp) 3.0
Max. RPM 6,000
Tool Spindle Thread 5/8-11 Male
Air Inlet Thread 1/2" NPT
Exhaust Type Side
GL_Country Of Origin US
Hose I.D. in. (mm) 1/2"
Vacuum Type Non-Vacuum
Height in. (mm) 7.5
Length in. (mm) 9.5
Weight lb. (kg) 11.1
Width in. (mm) 10.0
Pkg. Height in. (mm) 8.5
Pkg. Length in. (mm) 14
Pkg. Weight lb. (kg) 12.1
Pkg. Width in. (mm) 10
CE Certified Yes
EAN (UPC) 0616026532434
EAC Certified Yes
Tool Style Vertical
