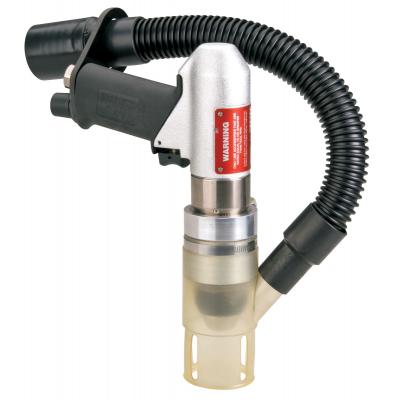

DYNABRADE 3/8" Central Vacuum Drill

DYNABRADE 3/8" Central Vacuum Drill

by Dynabrade
SKU 53103

Model Number: DYN53103

$1,194.99 - $1,194.99
$1,194.99
$1,194.99 - $1,194.99
$1,194.99
  • .7 hp, Pistol Grip, 3,400 RPM, Rear Exhaust, Jacobs Chuck.
  • .7 hp (522 W) Vacuum Drills include collapsible Vacuum Shroud, which compresses around drill bit to effectively capture chips and debris.
  • Pistol Grip design includes slow-speed start-up trigger.
  • High torque air motor; comfortable insulated tool grip.
  • Includes Conductive Hose & Cuffs, to shield operator from electrostatic discharge (ESD). 1-1/4" (32 mm) Diameter Vacuum Port for connection to Central Vacuum System.
  • Keyless chuck can be tightened by hand.



SPECIFICATIONS

Air Consumption (SCFM) 40.0
Power (hp) 0.7
Max. RPM 3,400
Tool Spindle Thread 3/8"-24 Male
Air Inlet Thread 1/4" NPT
Chuck Size 3/8"
Exhaust Type Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 3/8"
Vacuum Type Vacuum
Height in. (mm) 5.875
Length in. (mm) 10.375
Weight lb. (kg) 4
Width in. (mm) 10.0
Pkg. Height in. (mm) 6
Pkg. Length in. (mm) 15.5
Pkg. Weight lb. (kg) 4.8
Pkg. Width in. (mm) 10
CE Certified Yes
EAN (UPC) 0616026531031
EAC Certified Yes
Tool Style Pistol Grip
