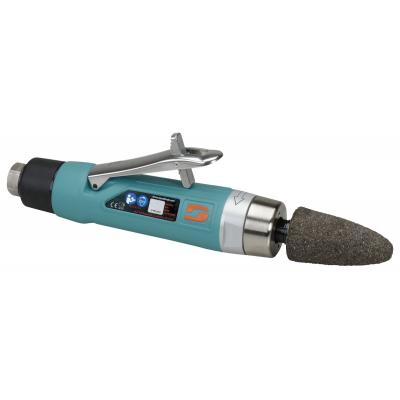

DYNABRADE Cone Or Plug Wheel Grinder

DYNABRADE Cone Or Plug Wheel Grinder

by Dynabrade
SKU 52717

Model Number: DYN52717

$561.99 - $561.99
$561.99
$561.99 - $561.99
$561.99
  • 1 hp, Straight-Line, 18,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
  • Cone or Plug Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
  • Straight Line, 1 hp, Rear Exhaust, 18,000 RPM.
  • Accepts optional Abrasive Cone or Plug Wheel, 1-1/4" diameter.
  • Governor-controlled motor maintains RPM under heavy load. Safety-lock lever is included on all models.
  • Industrial applications in fabrication plants, welding shops, foundries, steel mills and shipyards.



SPECIFICATIONS

Air Consumption (SCFM) 40.0
Power (hp) 1.0
Max. RPM 18,000
Tool Spindle Thread 3/8"- 24 Male
Air Inlet Thread 3/8" NPT
Exhaust Type Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 3/8"
Vacuum Type Non-Vacuum
Height in. (mm) 1.875
Length in. (mm) 8.875
Weight lb. (kg) 2.26
Width in. (mm) 6.5
Pkg. Height in. (mm) 4.5
Pkg. Length in. (mm) 10
Pkg. Weight lb. (kg) 3.05
Pkg. Width in. (mm) 6.25
CE Certified Yes
EAN (UPC) 0616026527171
EAC Certified Yes
Tool Style Straight Line
