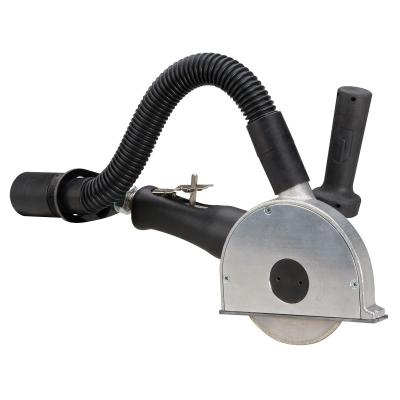

DYNABRADE 5" (127mm) Dia. Right Angle Vacuum Cut-Off Wheel Tool

DYNABRADE 5" (127mm) Dia. Right Angle Vacuum Cut-Off Wheel Tool

by Dynabrade
SKU 52615

Model Number: DYN52615

$1,146.99 - $1,146.99
$1,146.99
$1,146.99 - $1,146.99
$1,146.99
  • 1.3 hp, 12,000 RPM, Rotational Exhaust, 3/8"-24 Spindle Thread.
  • Tool accepts optional 5" (127 mm) dia. Diamond Cut-Off Wheels with 3/4" (19 mm) dia. center hole. Adjustable wheel guard has vacuum port 1-1/4" (32 mm) outside dia. that diverts airborne dust and debris to optional vacuum source. Excellent for efficient cutting with capture of dust and debris. Ideal for use on fiberglass and composites.
  • Non-marring composite base is removable to utilize maximum blade depth of 1-3/16" (30 mm). Optional composite base is available for scoring. Shroud/Guide Plate design allows cutting as close as 1/8" (3 mm) to leading edge of work piece.
  • Wick Lube System extends gear life with simple lubrication. Exhaust system rotates 360 degrees to ensure exhaust is always directed away from operator. Safety-lock throttle lever is included.
  • Tool includes 95848 Gear Oil and 95541 Gear Oil Gun.



SPECIFICATIONS

Air Consumption (SCFM) 42.0
Power (hp) 1.3
Max. RPM 12,000
Tool Spindle Thread 3/8-24 Male
Air Inlet Thread 3/8" NPT
Exhaust Type Rotational
GL_Country Of Origin US
Hose I.D. in. (mm) 3/8"
Vacuum Type Vacuum
Motor Type Rotary Vane
Height in. (mm) 8.4
Length in. (mm) 15.2
Weight lb. (kg) 7.3
Width in. (mm) 10.0
Pkg. Height in. (mm) 5
Pkg. Length in. (mm) 15
Pkg. Weight lb. (kg) 8.3
Pkg. Width in. (mm) 10
CE Certified Yes
EAN (UPC) 0616026526150
EAC Certified Yes
Tool Style Right Angle
