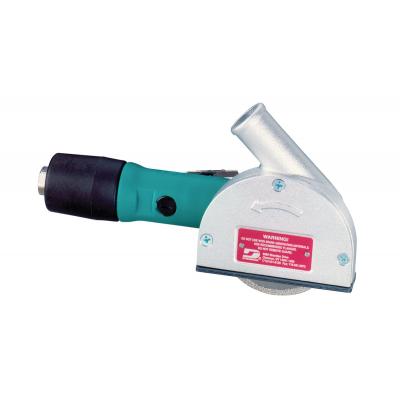

DYNABRADE 3" (76 mm) Dia. Right Angle Vacuum Cut-Off Wheel Tool

DYNABRADE 3" (76 mm) Dia. Right Angle Vacuum Cut-Off Wheel Tool

by Dynabrade
SKU 52538

Model Number: DYN52538

$884.99 - $884.99
$884.99
$884.99 - $884.99
$884.99
  • .4 hp, 12,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
  • Vacuum Cut-Off Wheel Tool, for efficient cutting with dust and debris removal.
  • 3" Diameter, Right Angle, .4 hp, 12,000 RPM, Rear Exhaust. Ideal for use with optional 3" diameter Diamond Cut-Off Wheels.
  • Adjustable wheel guard has vacuum port (1" outside diameter) that diverts airborne dust and debris to optional vacuum source.
  • Non-marring composite base is removable to utilize maximum blade depth of 11/16". Optional 52646 composite base is available for gel coat notching.
  • Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime. Safety-lock lever is included.



SPECIFICATIONS

Air Consumption (SCFM) 21.0
Power (hp) 0.4
Max. RPM 12,000
Tool Spindle Thread 3/8-24 Male
Air Inlet Thread 3/8" NPT
Exhaust Type Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 3/8"
Vacuum Type Vacuum
Motor Type Rotary Vane
Height in. (mm) 4.375
Length in. (mm) 8.625
Weight lb. (kg) 2.4
Width in. (mm) 6.25
Pkg. Height in. (mm) 4.5
Pkg. Length in. (mm) 10
Pkg. Weight lb. (kg) 3.14
Pkg. Width in. (mm) 6.25
CE Certified Yes
EAN (UPC) 0616026525382
EAC Certified Yes
Tool Style Right Angle
