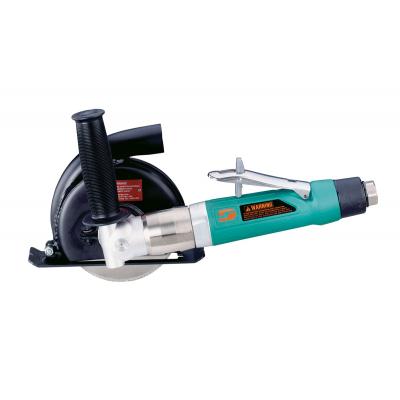

DYNABRADE 5" (127 mm) Dia. 7 Degree Offset Vacuum Cut-Off Wheel Tool
Dynabrade
SKU: 52438
DYNABRADE 5" (127 mm) Dia. 7 Degree Offset Vacuum Cut-Off Wheel Tool
Dynabrade
SKU: 52438
Model Number: DYN52438
Regular Price$1,39699
$1,396.99
/
- 1 hp, 12,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
- Vacuum Cut-Off Wheel Tool, for efficient cutting with dust and debris removal.
- 5" Diameter, Right Angle, 1 hp, 12,000 RPM, Rear Exhaust.
- Ideal for use with optional 5" diameter Diamond Cut-Off Wheels. Adjustable wheel guard has vacuum port (1-1/4" outside diameter) that diverts airborne dust and debris to to optional vacuum source.
- Powerful, high-quality air motor is effective for cutting through metals, thick fiberglass over-wrap and fiber spray.
- Blade guide allows operator to expose up to 1-1/8" depth of Cut-Off Wheel if required. Safety-lock lever is included.
SPECIFICATIONS
| Air Consumption (SCFM) | 40.0 |
|---|---|
| Power (hp) | 1.0 |
| Max. RPM | 12,000 |
| Tool Spindle Thread | 3/8-24 Male |
| Air Inlet Thread | 3/8" NPT |
| Exhaust Type | Rear |
| GL_Country Of Origin | US |
| Hose I.D. in. (mm) | 3/8" |
| Vacuum Type | Vacuum |
| Motor Type | Rotary Vane |
| Height in. (mm) | 4.5 |
| Length in. (mm) | 14.625 |
| Weight lb. (kg) | 6.7 |
| Width in. (mm) | 9.5 |
| Pkg. Height in. (mm) | 5.63 |
| Pkg. Length in. (mm) | 14.5 |
| Pkg. Weight lb. (kg) | 8.6 |
| Pkg. Width in. (mm) | 9.5 |
| CE Certified | Yes |
| EAN (UPC) | 0616026524385 |
| EAC Certified | Yes |
| Tool Style | 7 Degree Offset |
