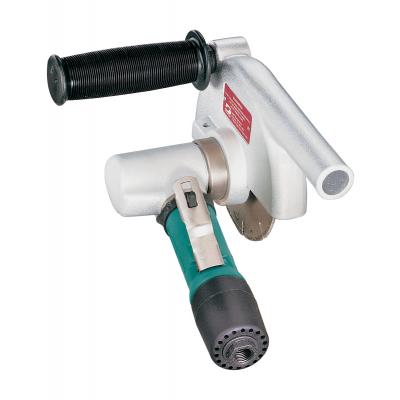

DYNABRADE 4-1/2" (114 mm) Dia. 7 Degree Offset Vacuum Cut-Off Wheel Tool

DYNABRADE 4-1/2" (114 mm) Dia. 7 Degree Offset Vacuum Cut-Off Wheel Tool

by Dynabrade
SKU 52436

Model Number: DYN52436

$710.99 - $710.99
$710.99
$710.99 - $710.99
$710.99
  • .7 hp, 20,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
  • Vacuum Cut-Off Wheel Tool, for efficient cutting with dust and debris removal.
  • 4-1/2" Diameter, 7 degree Offset, .7 hp, 20,000 RPM, Rear Exhaust.
  • Ideal for use with optional 94912 Diamond Cut-Off Wheel (4-1/2" diameter). Diamond Cut-Off Wheels are slotted for cooler running and longer life.
  • Adjustable wheel guard has vacuum port (1" outside diameter) that diverts airborne dust and debris to optional vacuum source. Blade depth exposure of 1-3/16".
  • Tool includes cushioned, soft-grip side handle. Handle is offset 7 Degree for greater operator comfort and control.



SPECIFICATIONS

Air Consumption (SCFM) 32.0
Power (hp) 0.7
Max. RPM 20,000
Tool Spindle Thread 3/8-24 Male
Air Inlet Thread 1/4" NPT
Exhaust Type Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 3/8"
Vacuum Type Vacuum
Motor Type Rotary Vane
Height in. (mm) 5.25
Length in. (mm) 7.375
Weight lb. (kg) 3.13
Width in. (mm) 6.5
Pkg. Height in. (mm) 5.25
Pkg. Length in. (mm) 12.25
Pkg. Weight lb. (kg) 3.91
Pkg. Width in. (mm) 6.5
CE Certified Yes
EAN (UPC) 0616026524361
EAC Certified Yes
Tool Style 7 Degree Offset
