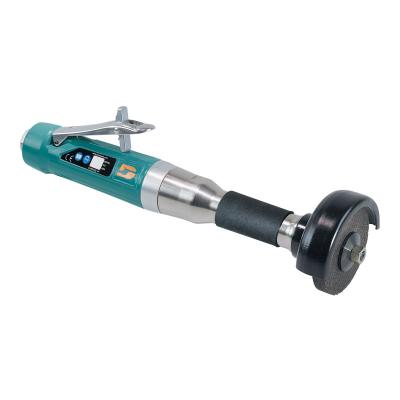

DYNABRADE 3" (76 mm) Dia. Straight-Line Type 1 Extension Wheel Grinder

DYNABRADE 3" (76 mm) Dia. Straight-Line Type 1 Extension Wheel Grinder

by Dynabrade
SKU 52377

Model Number: DYN52377

$842.99 - $842.99
$842.99
$842.99 - $842.99
$842.99
  • 15,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
  • Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
  • 3" Diameter, Straight Line, 1 hp, 6" Extension, 15,000 RPM.
  • Accepts optional 3" diameter Type 1 Wheel, with 3/8" center hole (maximum wheel width of 1/2"). Governor-controlled motor maintains RPM under heavy load; rear exhaust.
  • Safety-lock lever is included on all models.
  • Standard cushioned grip enhances operator comfort and control.



SPECIFICATIONS

Air Consumption (SCFM) 39.0
Power (hp) 1.0
Max. RPM 15,000
Tool Spindle Thread 3/8" - 24 Male
Air Inlet Thread 3/8" NPT
Exhaust Type Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 3/8"
Vacuum Type Non-Vacuum
Motor Type Rotary Vane
Height in. (mm) 3.5
Length in. (mm) 11.25
Weight lb. (kg) 4.41
Width in. (mm) 4.75
Pkg. Height in. (mm) 3
Pkg. Length in. (mm) 19.25
Pkg. Weight lb. (kg) 5.29
Pkg. Width in. (mm) 4.75
CE Certified Yes
EAN (UPC) 0616026523777
EAC Certified Yes
Tool Style Straight Line
