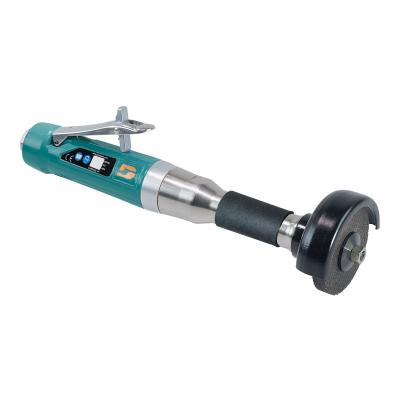

DYNABRADE 3" (76 mm) Dia. Straight-Line Type 1 Extension Wheel Grinder

DYNABRADE 3" (76 mm) Dia. Straight-Line Type 1 Extension Wheel Grinder

by Dynabrade
SKU 52376

Model Number: DYN52376

$842.99 - $842.99
$842.99
$842.99 - $842.99
$842.99
  • 1 hp, 12,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
  • Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
  • 3" Diameter, Straight Line, 1 hp, 6" Extension, 12,000 RPM.
  • Accepts optional 3" diameter Type 1 Wheel, with 3/8" center hole (maximum wheel width of 1/2"). Governor-controlled motor maintains RPM under heavy load; rear exhaust.
  • Safety-lock lever is included on all models.
  • Standard cushioned grip enhances operator comfort and control.



SPECIFICATIONS

Air Consumption (SCFM) 38.0
Power (hp) 1.0
Max. RPM 12,000
Tool Spindle Thread 3/8" - 24 Male
Air Inlet Thread 3/8" NPT
Exhaust Type Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 3/8"
Vacuum Type Non-Vacuum
Height in. (mm) 3.5
Length in. (mm) 11.25
Weight lb. (kg) 3.87
Width in. (mm) 5.75
Pkg. Height in. (mm) 3.25
Pkg. Length in. (mm) 16
Pkg. Weight lb. (kg) 5.16
Pkg. Width in. (mm) 5.75
CE Certified Yes
EAN (UPC) 0616026523760
EAC Certified Yes
Tool Style Straight Line
