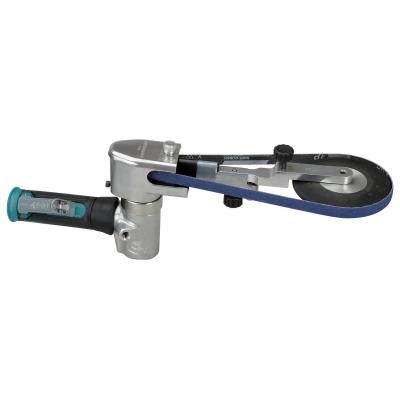

DYNABRADE Dynafile III Abrasive Belt Tool
Dynabrade
SKU: 15420
DYNABRADE Dynafile III Abrasive Belt Tool
Dynabrade
SKU: 15420
Model Number: DYN15420
Regular Price$89499
$894.99
/
- .7 hp, 7 Degree Offset, 20,000 RPM, Front Exhaust, 1/4", 1/2" W x 24" L (6 mm, 13 mm x 610 mm) Belts.
- Dynafile III Abrasive Belt Tool offers all the versatility of our world-famous Dynafile II, while serving up more power (.7 hp / 522 W) for faster material removal.
- Includes 11702 Contact Arm with unique 4"diameter wheel, for grinding or blending right angle welds and fillit welds. Contact Arm includes hand guide for additional control. Saves time and reduces costs!
- Grinds corner welds with no undercutting. Tool accepts belts 24" long, in widths of 1/4"or 1/2".
- Tool grinding head pivots 180 degrees.
SPECIFICATIONS
| Air Consumption (SCFM) | 32.0 |
|---|---|
| Power (hp) | 0.7 |
| Max. RPM | 20,000 |
| Max. SFPM | 4,550 |
| Air Inlet Thread | 1/4" NPT |
| Exhaust Type | Front |
| GL_Country Of Origin | US |
| Hose I.D. in. (mm) | 3/8" |
| Vacuum Type | Non-Vacuum |
| Motor Type | Rotary Vane |
| Height in. (mm) | 4.875 |
| Length in. (mm) | 14.0 |
| Weight lb. (kg) | 2.84 |
| Width in. (mm) | 7.0 |
| Pkg. Height in. (mm) | 6 |
| Pkg. Length in. (mm) | 13 |
| Pkg. Weight lb. (kg) | 3.8 |
| Pkg. Width in. (mm) | 7 |
| CE Certified | Yes |
| EAN (UPC) | 0616026154209 |
| EAC Certified | Yes |
| Tool Style | 7 Degree Offset |
