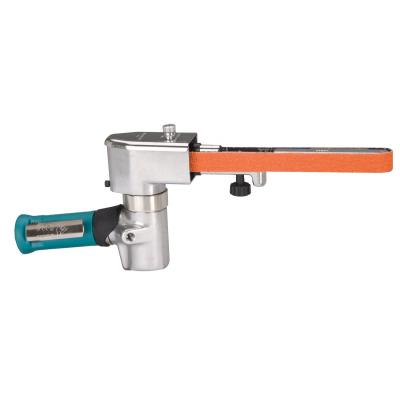

DYNABRADE Dynafile III Abrasive Belt Tool

SKU 15401

Model Number: DYN15401

Original price $783.99 - Original price $783.99
Original price
$783.99
$783.99 - $783.99
Current price $783.99
  • .7 hp, 7 Degree Offset, 20,000 RPM, Front Exhaust, 5/8", 3/4"x20-1/2" L (13 mm,19 mm x 521 mm) Belts.
  • Dynafile III Abrasive Belt Tool offers all the versatility of our world-famous Dynafile II, while serving up more power (.7 hp / 522 W) for faster material removal.
  • Includes 11287 Contact Arm for belts 5/8" or 3/4" wide x 20-1/2" long. Ideal for a variety of applications. Tool does not include side handle, reducing tool weight and allowing greater maneuverability. (53163 side handle is still available as an option.)
  • Tool includes high-efficiency Rubber Drive Wheel, ideal for use with all abrasive belts.
  • Tool grinding head pivots 180 degrees.



SPECIFICATIONS

Air Consumption (SCFM) 32.0
Power (hp) 0.7
Max. RPM 20,000
Max. SFPM 4,550
Air Inlet Thread 1/4" NPT
Exhaust Type Front
GL_Country Of Origin US
Hose I.D. in. (mm) 3/8"
Vacuum Type Non-Vacuum
Motor Type Rotary Vane
Height in. (mm) 4.875
Length in. (mm) 1505.0
Weight lb. (kg) 2.65
Width in. (mm) 6.5
Pkg. Height in. (mm) 4.5
Pkg. Length in. (mm) 11
Pkg. Weight lb. (kg) 3.64
Pkg. Width in. (mm) 6.5
CE Certified Yes
EAN (UPC) 0616026154018
EAC Certified Yes
Tool Style 7 Degree Offset
