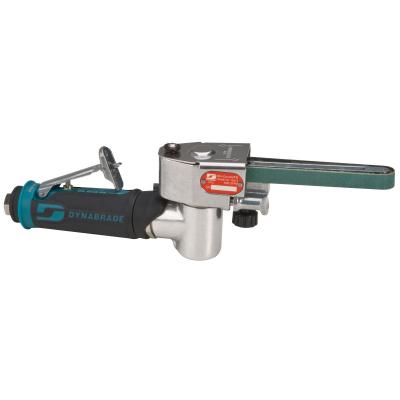

DYNABRADE Mini-Dynafile II Abrasive Belt Tool For 13" (330 mm) Belts

DYNABRADE Mini-Dynafile II Abrasive Belt Tool For 13" (330 mm) Belts

by Dynabrade
SKU 15013

Model Number: DYN15013

$661.99 - $661.99
$661.99
$661.99 - $661.99
$661.99
  • .4 hp, 7 Degree Offset, 25,000 RPM, Rear Exhaust, for 1/8"-1/2" W x 13" L (3-13 mm x 330 mm) Belts.
  • Ideal for strap polishing and working in narrow openings. Tool includes 15035 Contact Arm for 1/2" (13 mm) wide x 13" (330) long abrasive belts and 11078 Drive Wheel.
  • Lightweight ergonomic design handle features 7 degree offset. Multi-position grinding head pivots 360 Degree.
  • Tool has standard rear muffling with additional exhaust directed at the front belt assembly, providing the benefit of belt cleaning and cooling.
  • Swiveling belt guard, just pull up on cover and swing out of the way for quick and easy belt exchange. Pivot screw does not need to be loosened to move guard.



SPECIFICATIONS

Air Consumption (SCFM) 21.0
Power (hp) 0.4
Max. RPM 25,000
Max. SFPM 4,890
Air Inlet Thread 1/4" NPT
Exhaust Type Dual Front & Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 1/4"
Vacuum Type Non-Vacuum
Motor Type Rotary Vane
Height in. (mm) 3.9
Length in. (mm) 12.1
Weight lb. (kg) 1.7
Width in. (mm) 5.5
Pkg. Height in. (mm) 2.5
Pkg. Length in. (mm) 16
Pkg. Weight lb. (kg) 2.46
Pkg. Width in. (mm) 5.5
CE Certified Yes
EAN (UPC) 0616026150133
EAC Certified Yes
Tool Style 7 Degree Offset
