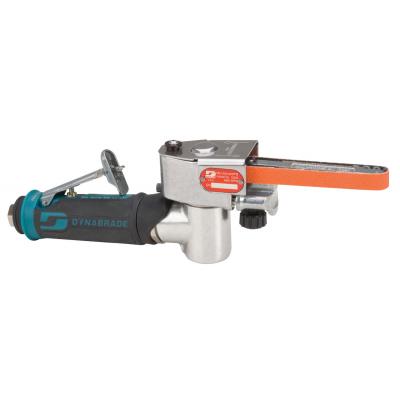

DYNABRADE Mini-Dynafile II Abrasive Belt Tool
Dynabrade
SKU: 15003
DYNABRADE Mini-Dynafile II Abrasive Belt Tool
Dynabrade
SKU: 15003
Model Number: DYN15003
Regular Price$63099
$630.99
/
- .4 hp, 7 Degree Offset, 25,000 RPM, Rear Exhaust, for 1/8"-1/2" W x 12" L (3-13 mm x 305 mm) Belts.
- Ideal for strap polishing and working in narrow openings. Tool includes 15026 Contact Arm for 1/2" wide x 12" long abrasive belts and 15118 Drive Wheel.
- Lightweight ergonomic design handle features 7 degree offset. Multi-position grinding head pivots 360 Degree.
- Belt guard easily detaches for quick abrasive change; simple belt tracking adjustment knob.
- For added versatility, tool can be easily converted to Die Grinder with optional 01644 (1/4") Threaded Collet Insert.
- 40378 Rubber Drive Wheel may be ordered separately, for efficient use with optional non-woven nylon belts.
SPECIFICATIONS
| Air Consumption (LPM) | 595 |
|---|---|
| Air Consumption (SCFM) | 21 |
| Power (hp) | 0.40 |
| Max. RPM | 25,000 |
| Max. SFPM | 4,890 |
| Air Inlet Thread | 1/4" NPT |
| Exhaust Type | Rear |
| GL_Country Of Origin | US |
| Hose I.D. in. (mm) | 1/4" |
| Sound Power dB[A] | 89 |
| Sound Level dB[A] | 78 |
| Vacuum Type | Non-Vacuum |
| Height in. (mm) | 3.5 |
| Length in. (mm) | 11.75 |
| Weight lb. (kg) | 1.7 |
| Width in. (mm) | 5.5 |
| Pkg. Height in. (mm) | 2.5 |
| Pkg. Length in. (mm) | 16 |
| Pkg. Weight lb. (kg) | 2.46 |
| Pkg. Width in. (mm) | 5.5 |
| CE Certified | Yes |
| EAN (UPC) | 0616026150034 |
| EAC Certified | Yes |
| Tool Style | 7 Degree Offset |
| Vibration Test Method | ISO 20643 |
| Power (W) | 298 |
| Vibration (m/sec�) | <2.5 |
