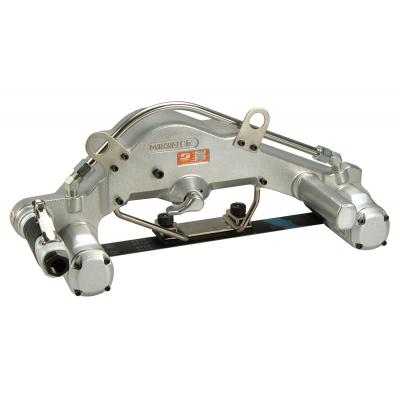

DYNABRADE Dynangle II Abrasive Belt Tool, Dual Motor w/ Platen

DYNABRADE Dynangle II Abrasive Belt Tool, Dual Motor w/ Platen

by Dynabrade
SKU 14306

Model Number: DYN14306

$3,690.99 - $3,690.99
$3,690.99
$3,690.99 - $3,690.99
$3,690.99
  • 2.4 hp, Straight-Line, 13,000 RPM, Rear Exhaust, for 2" W x 45" L (51 mm x 1143 mm) Belts.
  • Polish, grind contours and flats. Surface conditions stainless steel and most other metals. Also used on wood, plastic, fiberglass and composites. Blends and finishes solder seams. Built-in abrasive belt guard; fast belt change.
  • Heavy-Duty 'Dual Motor' with Platen, offers extra power. Uses 2" x 45" belts; belts spans 17" for polishing pipe up to 48" diameter.
  • Includes 2" wide x 6" long platen which is easily removed for strap polishing.



SPECIFICATIONS

Air Consumption (SCFM) 106.0
Power (hp) 2.0
Max. RPM 13,000
Max. SFPM 8,500
Air Inlet Thread 1/2" NPT
Exhaust Type Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 1/2"
Vacuum Type Non-Vacuum
Height in. (mm) 9.5
Length in. (mm) 22.875
Weight lb. (kg) 20.51
Width in. (mm) 15.0
Pkg. Height in. (mm) 10.5
Pkg. Length in. (mm) 20.5
Pkg. Weight lb. (kg) 23.81
Pkg. Width in. (mm) 15
CE Certified Yes
EAN (UPC) 0616026143067
EAC Certified Yes
Tool Style Straight Line
