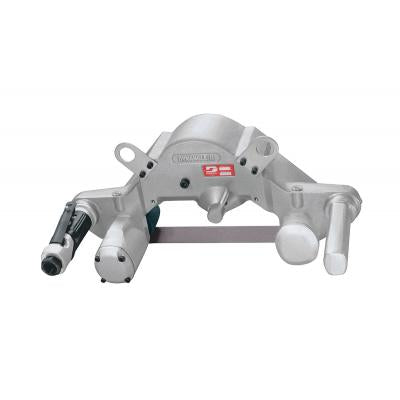

DYNABRADE Dynangle II Abrasive Belt Tool, Single Motor

DYNABRADE Dynangle II Abrasive Belt Tool, Single Motor

by Dynabrade
SKU 14300

Model Number: DYN14300

$2,390.99 - $2,390.99
$2,390.99
$2,390.99 - $2,390.99
$2,390.99
  • 1.2 hp, Straight-Line, 13,000 RPM, Rear Exhaust, for 2" W x 34" L (51 mm x 864 mm) Belts.
  • Polish, grind contours and flats. Surface conditions stainless steel and most other metals. Also used on wood, plastic, fiberglass and composites. Blends and finishes solder seams. Built-in abrasive belt guard; fast belt change.
  • Single Motor model uses 2" x 34" belts; belts spans 11-1/2" for 'strap polishing' up to 36" diameter pipe.
  • 14350 Conversion Kit available to upgrade single motor model to a dual motor model at a later date, if desired.
  • Safety-lock lever-throttle; hanger brackets included for optional overhead suspension.
  • For grinding with a platen pad, dual motor models are recommended.



SPECIFICATIONS

Air Consumption (SCFM) 53.0
Power (hp) 1.2
Max. RPM 13,000
Max. SFPM 8,500
Air Inlet Thread 1/2" NPT
Exhaust Type Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 1/2"
Vacuum Type Non-Vacuum
Height in. (mm) 8.5
Length in. (mm) 18.875
Weight lb. (kg) 15.66
Width in. (mm) 12.5
Pkg. Height in. (mm) 13.75
Pkg. Length in. (mm) 20.25
Pkg. Weight lb. (kg) 18.96
Pkg. Width in. (mm) 12.5
CE Certified Yes
EAN (UPC) 0616026143005
EAC Certified Yes
Tool Style Straight Line
