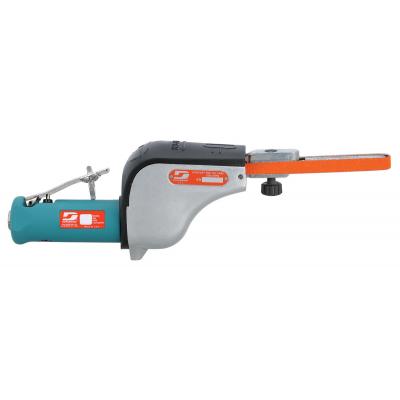

DYNABRADE Dynafile Abrasive Belt Tool

SKU 14000

Model Number: DYN14000

Original price $680.99 - Original price $680.99
Original price
$680.99
$680.99 - $680.99
Current price $680.99
  • .5 hp, Straight-Line, 20,000 RPM, Front Exhaust, for 1/8"-1/2" W x 24" L (3-13 mm x 610 mm) Belts.
  • World-famous Dynafile replaces tedious hand filing and sanding. Grind, deburr, blend, polish, finish and more!
  • Grind from contact wheel or platen pad. Finish and polish using slack of belt. For use on metal, plastic, fiberglass, composites, rubber, glass and stone.
  • Tool includes 11218 Contact Arm for standard use. Also accepts a variety of additional Contact Arms. Superior belt tracking permits use of abrasive belts 1/8", 1/4" or 1/2" wide x 24" long. Work in areas as small as 3/8" diameter.
  • Motor easily adjusts to the most comfortable throttle lever position. Lightweight composite belt guard allows quick and easy belt change!
  • Hard and soft platen pads mount onto Contact Arms for heavy grinding or contour polishing.



SPECIFICATIONS

Air Consumption (LPM) 736
Air Consumption (SCFM) 26.0
Power (hp) 0.5
Max. RPM 20,000
Max. SFPM 5,800
Air Inlet Thread 1/4" NPT
Exhaust Type Front
GL_Country Of Origin US
Hose I.D. in. (mm) 1/4"
Sound Power dB[A] 88
Sound Level dB[A] 77
Vacuum Type Non-Vacuum
Motor Type Rotary Vane
Height in. (mm) 4.6
Length in. (mm) 14.6
Weight lb. (kg) 3.32
Width in. (mm) 5.75
Pkg. Height in. (mm) 3.25
Pkg. Length in. (mm) 16
Pkg. Weight lb. (kg) 4.1
Pkg. Width in. (mm) 5.75
CE Certified Yes
EAN (UPC) 0616026140004
EAC Certified Yes
Tool Style Straight Line
Vibration Test Method ISO 20643
Power (W) 373
Vibration (m/sec�) <2.5
