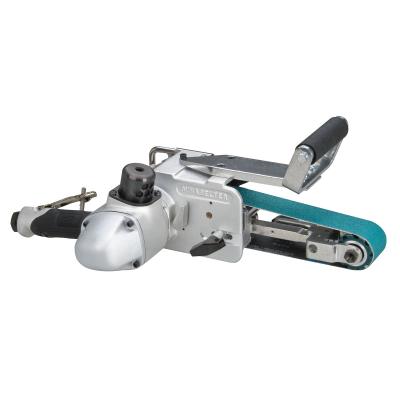

DYNABRADE Dynabelter Abrasive Belt Tool, Extra Heavy-Duty
Dynabrade
SKU: 11477
DYNABRADE Dynabelter Abrasive Belt Tool, Extra Heavy-Duty
Dynabrade
SKU: 11477
Model Number: DYN11477
Regular Price$2,39699
$2,396.99
/
- 2 hp, Vertical, 7,200 RPM, Front Exhaust, for 1"-2" W x 30" L (25-51 mm x 762 mm) Belts.
- For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.
- Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.
- Extra Heavy-Duty, 2.0 hp model accepts 2" wide x 30" long abrasive belts. Includes pressure bar with top control handle. Includes 11870 Contact Arm Assembly.
- 11871 Contact Arm with 4" dia. contact wheel is available for 2" wide x 60" long belts, providing a 20" workable reach. Optional 11891 Platen is available for 11871 Arm.
- Ideal for use with 1/2" Dynaswivel, and 98273 Coupler/Plug Assembly.
SPECIFICATIONS
| Air Consumption (SCFM) | 70.0 |
|---|---|
| Power (hp) | 2.0 |
| Max. RPM | 7,200 |
| Max. SFPM | 4,700 |
| Air Inlet Thread | 1/2" NPT |
| Exhaust Type | Front |
| GL_Country Of Origin | US |
| Hose I.D. in. (mm) | 1/2" |
| Vacuum Type | Non-Vacuum |
| Motor Type | Rotary Vane |
| Height in. (mm) | 7.75 |
| Length in. (mm) | 21.5 |
| Weight lb. (kg) | 15.66 |
| Width in. (mm) | 12.5 |
| Pkg. Height in. (mm) | 7.5 |
| Pkg. Length in. (mm) | 18.5 |
| Pkg. Weight lb. (kg) | 17.86 |
| Pkg. Width in. (mm) | 12.5 |
| CE Certified | Yes |
| EAN (UPC) | 0616026114777 |
| EAC Certified | Yes |
| Tool Style | Right Angle |
