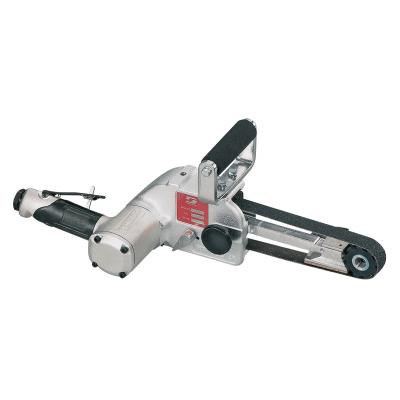

DYNABRADE Dynabelter Abrasive Belt Tool, Heavy-Duty
Dynabrade
SKU: 11476
DYNABRADE Dynabelter Abrasive Belt Tool, Heavy-Duty
Dynabrade
SKU: 11476
Model Number: DYN11476
Regular Price$1,52099
$1,520.99
/
- 1.2 hp, Right Angle, 13,000 RPM, Front Exhaust, for 1/4"-1" W x 30" L (6-25 mm x 762 mm) Belts.
- For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.
- Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.
- Heavy-Duty, 1.2 hp model accepts 1" wide x 30" long abrasive belts.
- Includes 11681 Contact Arm Assembly, and top control handle.
- Ideal for use with 3/8" Dynaswivel, and 98265 Coupler/Plug Assembly.
SPECIFICATIONS
| Air Consumption (SCFM) | 58.0 |
|---|---|
| Power (hp) | 1.2 |
| Max. RPM | 13,000 |
| Max. SFPM | 4,250 |
| Air Inlet Thread | 3/8" NPT |
| Exhaust Type | Front |
| GL_Country Of Origin | US |
| Hose I.D. in. (mm) | 1/2" |
| Vacuum Type | Non-Vacuum |
| Motor Type | Rotary Vane |
| Height in. (mm) | 7.25 |
| Length in. (mm) | 21.0 |
| Weight lb. (kg) | 8.6 |
| Width in. (mm) | 12.5 |
| Pkg. Height in. (mm) | 7.5 |
| Pkg. Length in. (mm) | 18.5 |
| Pkg. Weight lb. (kg) | 10.8 |
| Pkg. Width in. (mm) | 12.5 |
| CE Certified | Yes |
| EAN (UPC) | 0616026114760 |
| EAC Certified | Yes |
| Tool Style | Right Angle |
