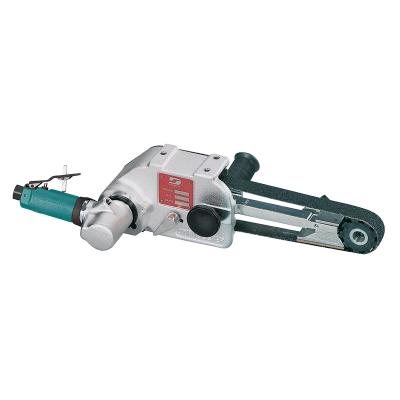

DYNABRADE Dynabelter Abrasive Belt Tool, Standard Duty

DYNABRADE Dynabelter Abrasive Belt Tool, Standard Duty

by Dynabrade
SKU 11475

Model Number: DYN11475

$1,407.99 - $1,407.99
$1,407.99
$1,407.99 - $1,407.99
$1,407.99
  • .7 hp, 7 Degree Offset, 18,000 RPM, Front Exhaust, for 1/4"-1" W x 30" L (6-25 mm x 762 mm) Belts.
  • For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.
  • Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.
  • Standard Duty, .7 hp model accepts 1" wide x 30" long abrasive belts. Adjustable speed; removable side handle.
  • Includes 11681 Contact Arm Assembly.
  • Ideal for use with 1/4" Dynaswivel , and 95676 Coupler/Plug Assembly.



SPECIFICATIONS

Air Consumption (SCFM) 32.0
Power (hp) 0.7
Max. RPM 18,000
Max. SFPM 5,890
Air Inlet Thread 1/4" NPT
Exhaust Type Front
GL_Country Of Origin US
Hose I.D. in. (mm) 1/2"
Vacuum Type Non-Vacuum
Motor Type Rotary Vane
Height in. (mm) 7.25
Length in. (mm) 21.0
Weight lb. (kg) 5.81
Width in. (mm) 12.5
Pkg. Height in. (mm) 7.5
Pkg. Length in. (mm) 18.5
Pkg. Weight lb. (kg) 8.37
Pkg. Width in. (mm) 12.5
CE Certified Yes
EAN (UPC) 0616026114753
EAC Certified Yes
Tool Style 7 Degree Offset
