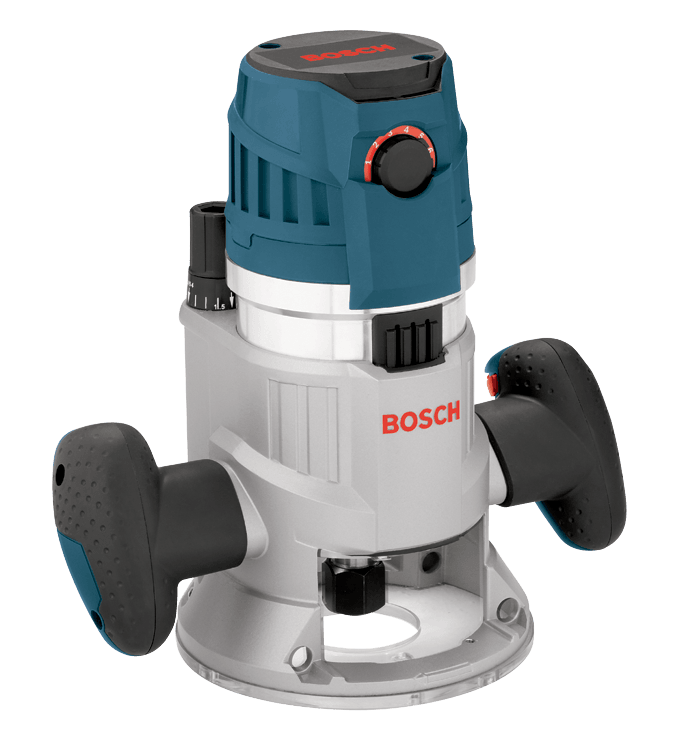

BOSCH 2.3 HP Electronic Fixed-Base Router
Model Number: BOSMRF23EVS
The Bosch MRF23EVS 2.3 HP Electronic Fixed-Base Router delivers optimum user control, with the trigger-controlled power system that features a power switch in the fixed-base handle. This router has the power to get results, with its 15 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to set the optimal speed. The Bosch Constant Response circuitry in the motor maintains a constant speed throughout the cut, resulting in clean, accurate product. The router has microfine bit-depth adjustment, with a continuous depth range of 1-5/8 in., allowing for accurate and fast changes, while its precision-centering design allows the bit to be centered with the sub-base or optional template guides. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices.
SPECIFICATIONS
| Amperage | 15.0 |
| Base Diameter | 6" Fixed |
| Base Opening | 3-3/4" |
| Case Type | No Case Included |
| Collet Capacity | 1/2" and 1/4" |
| Dust Collection | No |
| Fixed-Base Depth Range | 1-5/8" |
| Horsepower Rating | 2.3 |
| Length in | 6.0" |
| No Load RPM | 10,000-25,000 |
| Rating | 120V AC |
| Subbase Opening | 2" |
| Variable Speed | Yes |
| Voltage | 120V |
| Weight | 9.3lb |
| Width in | 10.25" |
| Works With |
Router Tables RA1171 Cabinet-Style Router Table, RA1181 Router Table, RA1152 Offset Bit-Change Wrench Set Router Guide RA1054 Template Guides RA1128 Template Guide Set, RA1129 Template Guide Adapter Set Centering Device for Subbases and Attached Template Guides RA1151 Dust Collection Attachments RA1175 Edge-forming Dust Hood, RA1176AT Two-Hood Dust Hood Set Plunge Base MRP01 |
| Includes | Fixed Base (MRF01), 1/4" Self-Releasing Collet Chuck - 2 610 906 283, 1/2" Self-Releasing Collet Chuck - 2 610 906 284, 16mm Shaft Wrench - 2 610 991 388, 24mm Collet Nut Wrench - 2 610 992 417, T-Handle Hex Height Adjustment Wrench - 2610923193, Pack of 3 M4 Screws for table mounting - 2610005966 |
