BOSCH 8-1/2" Single-Bevel Slide Miter Saw
Bosch
SKU: CM8S

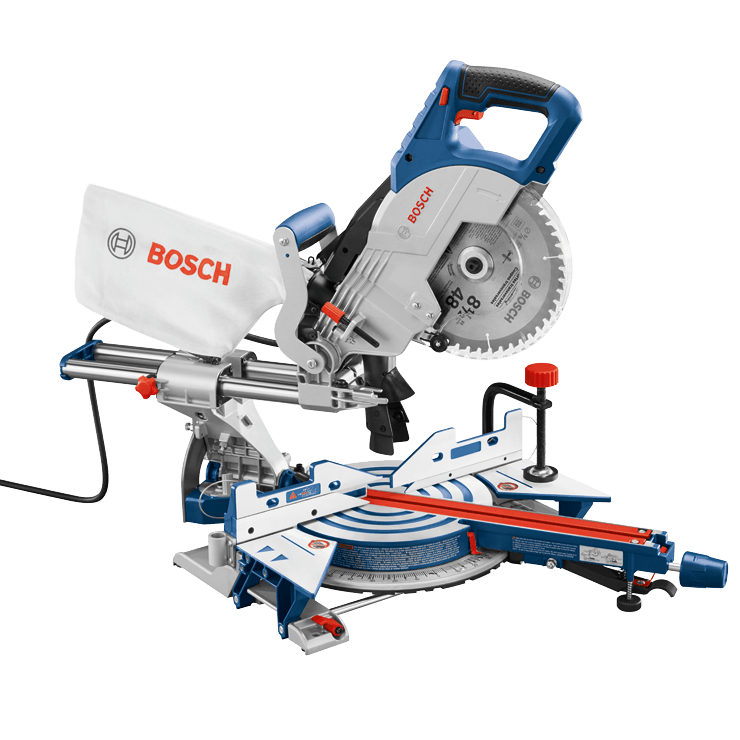

BOSCH 8-1/2" Single-Bevel Slide Miter Saw
Bosch
SKU: CM8S
Model Number: BOSCM8S
Regular Price$48699
$486.99
/
The CM8S 8-1/2 In. single bevel sliding compound miter saw features a Bosch exclusive design delivering a well-balanced saw with a top carry handle at the center of gravity and weighs only 37 pounds. These features easily provide one-handed portability on and off the job. Accessible controls make it easy to change bevel settings without reaching behind the saw. The integrated expanding work piece supports, large easy to read miter and bevel scales, and detent system provides quick and accurate cuts. The CM8S also has the same crosscut capacity (12-1/4 In.) as a 10 In. miter saw, at 30% lighter weight.
SPECIFICATIONS
| Amperage | 12.0 |
| Bevel Angle Range | -2° to 47° |
| Bevel Stops | 0°, 22.5°, 33.9°, 45° |
| Blade Diameter (in) | 8.5 |
| Blade Size | 8-1/2” |
| Case Type | No Case Included |
| Category | Compound Miter Saws |
| Crown Molding - Angled Against Fence | 3-1/2" |
| Dust Collection | Yes |
| Electric Motor Brake | No |
| Height in | 18.0" |
| Height of Table from Base Feet to Table Surface - In. | 2.44 |
| Length in | 32.0" |
| Max. Base Molding Against Fence | 2-3/4 In. |
| Max. Crown Molding (38° Spring) Angled Against Fence | 3-1/2 In. |
| Max. Crown Molding (45° Spring) Angled Against Fence | 3-3/4 In. |
| Max. Cut Capacity - 0° Miter 0° Bevel | 2.75 In. x 12-1/4 In. (Can cut 2x12 Dimensional Lumber) |
| Max. Cut Capacity - 0° Miter 45° Left Bevel | 1-1/2 In. x 12-1/4 In. (Can cut 2x12 Dimensional Lumber) |
| Max. Cut Capacity - 0° Miter 45° Right Bevel | Not possible |
| Max. Cut Capacity - 45° Miter 0° Bevel | 2.75 In. x 8 In. (Can cut 2x8 Dimensional Lumber) |
| Max. Cut Capacity - 45° Miter 45° Left Bevel | 1-1/2 In. x 8 In. (Can cut 2x8 Dimensional Lumber) |
| Max. Cut Capacity - 45° Miter 45° Right Bevel | Not possible |
| Miter Angle Range | 52° Left, 60° Right |
| Miter Detents | 0°, 15°, 22.5°, 31.6°, 45°, (Left/Right) 60°, (Right) |
| Miter Positive Stops | 0°, 15°, 22.5,° 31.6°, 45° (Left/Right), 60° (Right) |
| No Load RPM | 5,600 |
| Separate On/Off Speed Control | No |
| Voltage | 120V |
| Weight | 37.0lb |
| Width in | 18.0" |
| Works With |
Miter Saw Stands T1B, T4B, GTA3800 Crown Molding Stops (Pair) MS1233 Length Stop MS1234 Anti-Static Vacuum Hoses VH1622A and VH1635A (by means of anti-static adapter included with those hoses), VAC008, and most other 22 mm and 35 mm anti-static hoses Other Vacuum Hoses VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 22 mm and 35 mm hoses Adapter for 1-1/4 in and 1-1/2 in. Vacuum Hoses VAC002 and VAC024 Adapter for 2-1/2 in. Vacuum Hoses VAC020 |
| Includes | (1) CM8S 8-1/2 In. Single-Bevel Slide Miter Saw, (1) 8-1/2 In. 40-Tooth Carbide-Tipped Blade, (1) Blade Wrench, (1) Dust Bag Assembly, (1) Toolless Work Piece Clamp |
