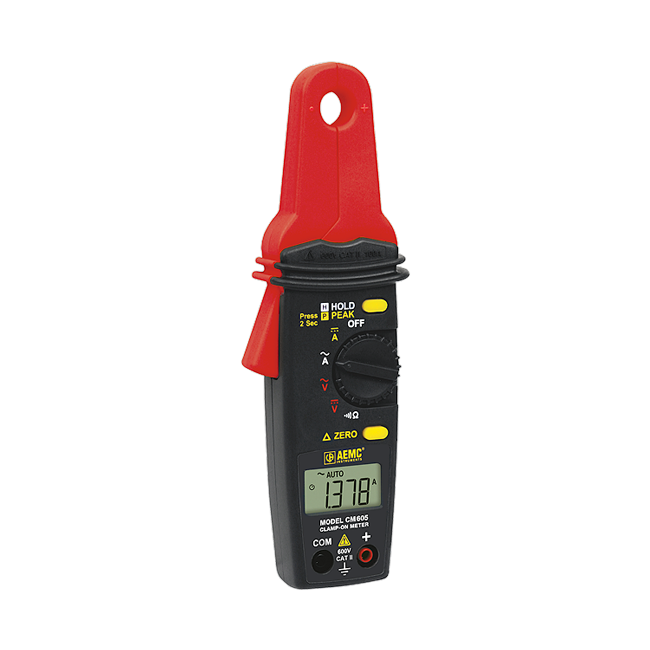

AEMC 7000.02 Clamp-on Meter Model CM605
SKU 7000.02
Model Number: AEM700002
Original price
$208.05
-
Original price
$208.05
Original price
$208.05
$208.05
-
$208.05
Current price
$208.05
The Model CM605 is a versatile device that is capable of measuring both AC/DC voltage (up to 600V) and AC/DC current up to 100 Amps. It can also measure resistance up to 10kΩ and includes a continuity buzzer to assist in circuit verification.
The Multifunction Clamp-on Meter Model CM605 is a good choice for both process and general industrial applications. It can detect milliamp process signals, as well as the higher currents up to 100A associated with general industrial monitoring and troubleshooting.
For operator convenience, the Model CM605 can also hold the last reading in the display and capture the peak value at the time of the measurement.
| Voltage Range: | 600V AC/DC Auto-Ranging |
| Resolution Max: | 0.1V |
| Current Range: | 100A AC/DC |
| Resolution Max: | 0.001A |
| Accuracy V Typical: | 1.5% ± 5cts |
| Accuracy A Typical: | 2% ± 10cts |
| Continuity: | <100Ω |
| Resistance: | 10kΩ |
| ∆REL: | Yes |
| Power Source: | 2 x AAA, IEC LR03 |
| Dimensions: | 7.44 x 2.8 x 1.46" (189 x 71 x 37mm) |
| Weight: | 6.5 oz. (180g) |
| Jaw Opening: | 0.45" (12mm) |
| Operating Temperature: | +32° to 104°F (0 to +40°C) |
| Storage Temperature: | +14° to 140°F (-10 to +60°C) |
| Operating Humidity: | 80% up to 104°F (40°C) |
| Pollution Degree: | 2 |
| Safety Compliance: | EN/IEC 61010 to 300V CAT III, 600V CAT II |
