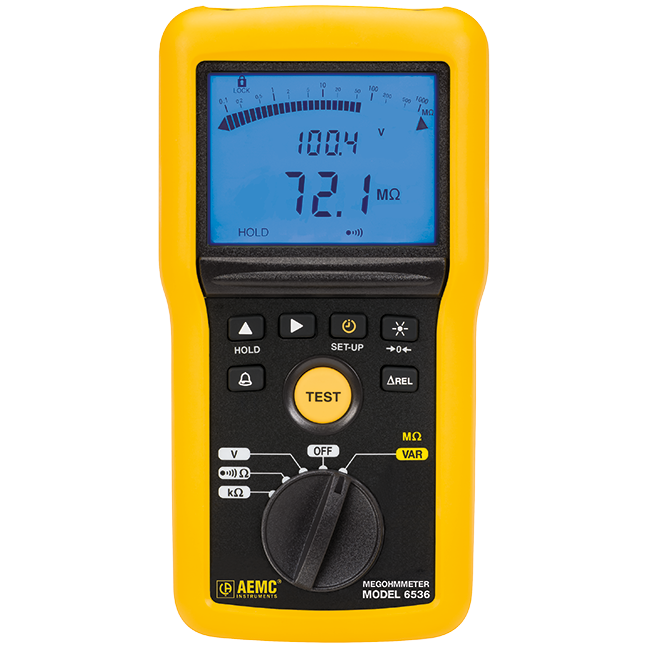

AEMC 2155.56 Megohmmeter Model 6536
SKU 2155.56
Model Number: AEM215556
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.
- True Megohmmeter®
- 10 to 100V (variable) Insulation and Multi-Function Tester (Resistance, Continuity and Voltage)
- Variable 10 to 100V (1V increments) Insulation Test Voltages
- 20GΩ Max Insulation Resistance
- Timed Test Mode up to 40 minutes for Insulation Resistance Test
- Test Lock feature for hands free timed measurements up to 15 minutes
- Continuity tests at 20mA or 200mA
- Test lead resistance compensation for accurate low resistance measurements
- True RMS AC/DC Voltmeter up to 700V
- Ohmmeter to 1000kΩ
- Auto discharge after Insulation Test
- Hold function to "freeze" readings
- Large and bright dual display with blue backlight
- Auto Standby Feature due to inactivity saves battery power
- Optional Remote Probe accessory

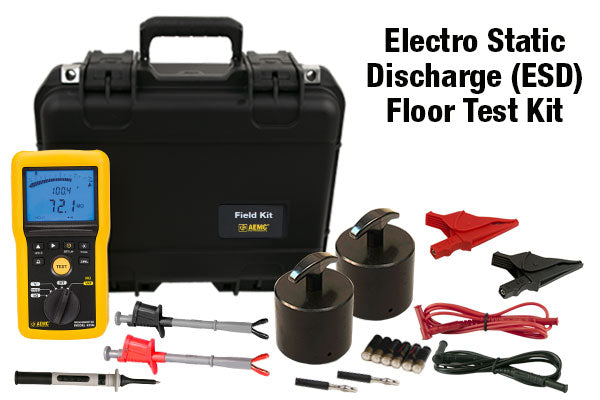

- Optional Electro Static Discharge (ESD) Floor Test Kit (Cat. # 2155.57) for testing both point-to-ground and point-to-point electrostatic discharge
| AC/DC Voltage Measurement | |
| Range | 0.3 to 700V |
| Accuracy | ±(3% R + 2ct) |
| Resolution | 1 to 99.9V: 0.1V 100 to 999V: 1V 1000 to 4000V: 2V |
| Frequency Range | DC & 15.3 to 800Hz |
| Input Impedance | 400kΩ |
| Insulation Measurement | |
| Test Voltage / Resistance Range | Test Voltage: Variable 10 to 100V (1V steps) 10V: 2kΩ to 2GΩ 25V: (Vtest/5)kΩ to (Vtest/5) GΩ 100V: 20kΩ to 20GΩ |
| Measurement Accuracy |
2-999kΩ only: ±(4% + 20 ct) All other ranges: ±(3% + 2 ct)+(10%V) per 100MΩ |
| Auto Discharge | Discharge time < 2s/µF From Vtest to 25V |
| Live Circuit Indicator | Inhibit test if terminal voltage > 25V prior to initialization of test |
| Continuity Measurement | |
| Ranges | 0.00 to 10Ω (200mA test current) 0.0 to 100Ω (20mA test current) |
| Accuracy | ± (2% R + 2ct) with lead compensation |
| Open Voltage | ≥ 6V |
| Resistance Measurement | |
| Range | 1Ω to 1000kΩ |
| Accuracy | ± (3% R + 2ct) |
| Open Voltage | Approximately 4.5V |
| General Features | |
| Programmable Alarm | Yes |
| Timer | 0:00 to 39:59mn, with 1s resolution |
| Display | Backlit digital with bargraph |
| Power Supply | Six AA batteries (NEDA 15A or IEC LR6) |
| Battery Life | ≥ 6000 IR tests at 100V into 100kΩ with a duty cycle of 5 seconds on and 1 min off. ≥ 3000 R tests of 1Ω with a duty cycle of 5 seconds on and 1min off. |
| Dimensions | 8.31 x 4.25 x 2.36” (211 x 108 x 60mm) |
| Weight | 1.87 lb (850g) |
| Altitude Operating | 2000m |
| Operating Temperature | -4° to +131°F (-20° to +55°C) & 20 to 80% RH |
| Storage Temperature | -22° to +176°F (-30° to +80°C) & 10 to 90% RH, without batteries |
| IP Rating | IP 54 |
| Safety Compliance |
IEC/EN 61010-1, 600V CAT IV, IEC 61557
|
