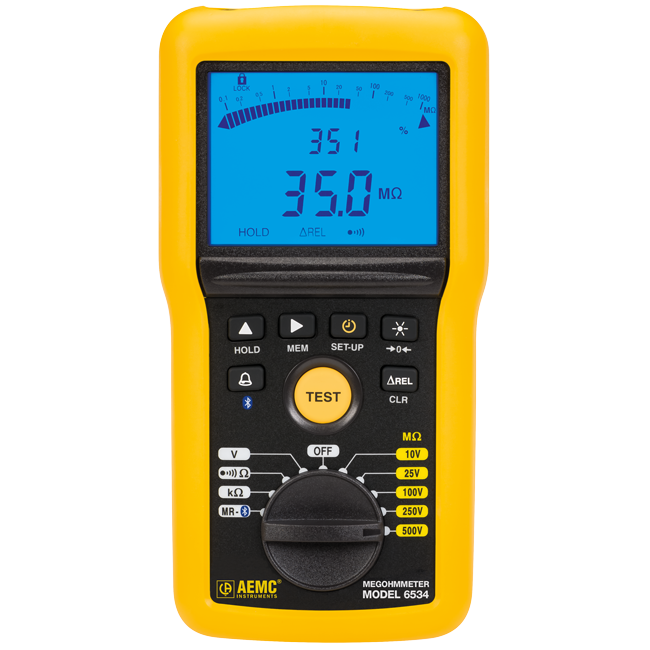

AEMC 2155.55 Megohmmeter Model 6534
SKU 2155.55
Model Number: AEM215555
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.
- True Megohmmeter®
- 500V Insulation and Multi-Function Tester (Resistance, Continuity and Voltage)
- 10V, 25V, 100V, 250V and 500V Insulation Test Voltages
- 50GΩ Max Insulation Resistance
- Timed Test Mode up to 40 minutes for Insulation Resistance Test
- Test Lock feature for hands free timed measurements up to 15 minutes
- Continuity tests at 20mA or 200mA
- Test lead resistance compensation for accurate low resistance measurements
- True RMS AC/DC Voltmeter up to 700V
- Ohmmeter to 1000kΩ
- Auto discharge after Insulation Test
- Hold function to "freeze" readings
- Large and bright dual display with blue backlight
- Auto Standby Feature due to inactivity saves battery power
- 1300 Measurement storage in memory
- Bluetooth communication with included DataView software
- Optional Remote Probe accessory
| AC/DC Voltage Measurement | |
| Range | 0.3 to 700V |
| Accuracy | ±(3% R + 2ct) |
| Resolution | 1 to 99.9V: 0.1V 100 to 999V: 1V 1000 to 4000V: 2V |
| Frequency Range | DC & 15.3 to 800Hz |
| Input Impedance | 400kΩ |
| Insulation Measurement | |
| Test Voltage / Resistance Range | 10V: 2kΩ to 1GΩ 25V: 5kΩ to 2GΩ 100V: 20kΩ to 10GΩ 250V: 50kΩ to 25GΩ 500V: 100kΩ to 50GΩ |
| Measurement Accuracy | 10V: ≤999kΩ: ± (4% R + 20 ct); ≥1.000MΩ± (3% R + 2 ct + 1%/100MΩ) 25V: ±(3% R + 2ct)+0.4%/100MΩ 100V: ±(3% R + 2ct)+1%/GΩ 250V: ±(3% R + 2ct)+0.4%/GΩ 500V: ±(3% R + 2ct)+0.2%/GΩ |
| Auto Discharge | Discharge time < 2s/µF From Vtest to 25V |
| Live Circuit Indicator | Inhibit test if terminal voltage > 25V prior to initialization of test |
| Continuity Measurement | |
| Ranges | 0.00 to 10Ω (200mA test current) 0.0 to 100Ω (20mA test current) |
| Accuracy | ± (2% R + 2ct) with lead compensation |
| Open Voltage | ≥ 6V |
| Resistance Measurement | |
| Range | 1Ω to 1000kΩ |
| Accuracy | ± (3% R + 2ct) |
| Open Voltage | Approximately 4.5V |
| General Features | |
| Programmable Alarm | Yes |
| Timer | 0:00 to 39:59mn, with 1s resolution |
| Display | Backlit digital with bargraph |
| Memory | 1300 tests |
| Communication | Bluetooth 2.1 Class II |
| Software | DataView (included) |
| Power Supply | Six AA batteries (NEDA 15A or IEC LR6) |
| Battery Life | ≥ 2500 IR tests at 500V into 500kΩ with a duty cycle of 5 seconds on and 1 min off. ≥ 3000 R tests of 1Ω with a duty cycle of 5 seconds on and 1min off. |
| Dimensions | 8.31 x 4.25 x 2.36” (211 x 108 x 60mm) |
| Weight | 1.87 lb (850g) |
| Altitude Operating | 2000m |
| Operating Temperature | -4° to +131°F (-20° to +55°C) & 20 to 80% RH |
| Storage Temperature | -22° to +176°F (-30° to +80°C) & 10 to 90% RH, without batteries |
| IP Rating | IP 54 |
| Safety Compliance |
IEC/EN 61010-1, 600V CAT IV, IEC 61557
|
