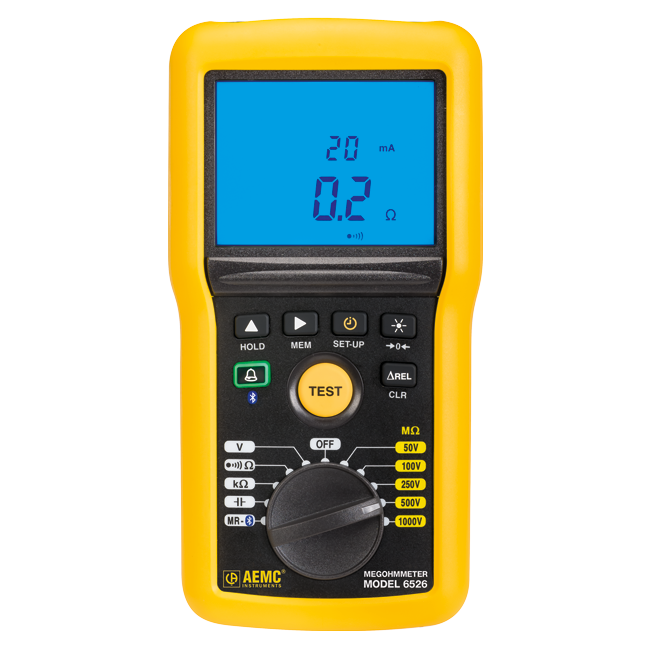

AEMC 2155.53 Megohmmeter Model 6526
SKU 2155.53
Model Number: AEM215553
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.
- True Megohmmeter®
- 1 kV Insulation and Multi-Function Tester (Resistance, Capacitance, Continuity, Frequency and Voltage)
- (50, 100, 250, 500 and 1000) V Insulation Test Voltages
- 200 GΩ Max Insulation Resistance
- DAR and PI ratios calculated
- Timed Test Mode up to 40 minutes for Insulation Resistance Test
- Test Lock feature for hands free timed measurements up to 15 minutes
- Continuity tests at 20 mA or 200 mA
- Test lead resistance compensation for accurate low resistance measurements
- True RMS AC/DC Voltmeter up to 700 V
- Ohmmeter to 1000 kΩ
- Capacitance to 10 µf
- Frequency measurements from (15 to 800) Hz
- Auto discharge after Insulation Test
- Hold function to "freeze" readings
- Large and bright dual display with blue backlight
- Pass/Fail indicator with green/red backlight
- Auto Standby Feature due to inactivity saves battery power
- 1300 measurement storage in memory
- Bluetooth communication with included DataView® software
- Complies with International Insulation Testing Standards including IEC/EN 61557
- 600 V CAT IV
- Optional Remote Probe accessory
| AC/DC Voltage Measurement | |
| Range | (0.3 to 700) V |
| Accuracy | ±(3 % R + 2 ct) |
| Resolution | (1 to 99.9) V: 0.1 V (100 to 999) V: 1 V (1000 to 4000) V: 2V |
| Frequency Range | DC and (15.3 to 800) Hz |
| Input Impedance | 400 kΩ |
| Insulation Measurement | |
| Test Voltage / Resistance Range | 50 V: 10 kΩ to 10 GΩ 100 V: 20 kΩ to 20 GΩ 250 V: 50 kΩ to 50 GΩ 500 V: 100 kΩ to 100 GΩ 1000 V: 200 kΩ to 200 GΩ |
| Measurement Accuracy | 50 V: ±(3 % R + 2 ct) +2 % / GΩ 100 V: ±(3% R + 2 ct) +1% / GΩ 250 V: ±(3% R + 2 ct) +0.4% / GΩ 500 V: ±(3% R + 2 ct) +0.2% / GΩ 1000 V: ±(3% R + 2 ct) +0.1% / GΩ |
| Auto Discharge | Discharge time < 2s/µF From Vtest to 25 V |
| Live Circuit Indicator | Inhibit test if terminal voltage > 25 V prior to initialization of test |
| Continuity Measurement | |
| Ranges | 0.00 to 10 Ω (200 mA test current) 0.0 to 100 Ω (20 mA test current) |
| Accuracy | ± (2% R + 2 ct) with lead compensation |
| Open Voltage | ≥ 6 V |
| Resistance Measurement | |
| Range | 1 Ω to 1000 kΩ |
| Accuracy | ± (3% R + 2 ct) |
| Open Voltage | Approximately 4.5 V |
| General Features | |
| Programmable Alarm | Yes |
| DAR – PI | Yes |
| Timer | 0:00 to 39:59 min, with 1 s resolution |
| Frequency Measurement | (15.3 to 800) Hz |
| Capacitance Measurement | 0.1 nF to 10 µF |
| Display | Backlit digital with bargraph |
| Memory | 1300 tests |
| Communication | Bluetooth 2.1 Class II |
| Software | DataView (included) |
| Power Supply | (6) AA batteries (NEDA 15 A or IEC LR6) |
| Battery Life | ≥ 1500 IR tests at 1000 V into 1 MΩ with a duty cycle of 5 s on and 1 min off. ≥ 3000 R tests of 1 Ω with a duty cycle of 5 s on and 1 min off. |
| Dimensions | (8.31 x 4.25 x 2.36) in (211 x 108 x 60) mm |
| Weight | 1.87 lb (850 g) |
| Altitude Operating | 2000 m |
| Operating Temperature | (-4 to 131) °F (-20° to +55) °C; (20 to 80) % RH |
| Storage Temperature | (-22 to 176) °F (-30 to 80) °C; (10 to 90) % RH, without batteries |
| IP Rating | IP 54 |
| Safety Compliance |
IEC/EN 61010-1, 600 V CAT IV, IEC 61557
|
