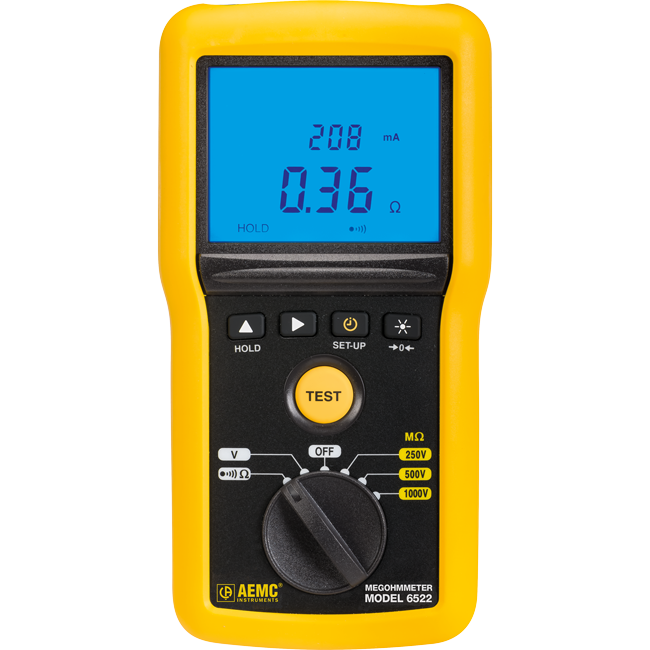

AEMC 2155.51 Megohmmeter Model 6522
SKU 2155.51
Model Number: AEM215551
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.
- True Megohmmeter®
- 1 kV Insulation and Continuity Tester
- 250V, 500V and 1000V Insulation Test Voltages
- 40GΩ Max Insulation Resistance
- Timed Test Mode up to 40 minutes for Insulation Resistance Test
- Test Lock feature for hands free timed measurements up to 15 minutes
- Continuity tests at 200mA
- Test lead resistance compensation for accurate low resistance measurements
- True RMS AC/DC Voltmeter up to 700V
- Auto discharge after Insulation Test
- Hold function to "freeze" readings
- Large and bright dual display with blue backlight
- Auto Standby Feature due to inactivity saves battery power
- Optional Remote Probe accessory
| AC/DC Voltage Measurement | |
| Range | 0.3 to 700V |
| Accuracy | ±(3% R + 2ct) |
| Resolution | 0.3 to 399.9V: 0.1V 400 to 700V: 1V |
| Frequency Range | DC & 15.3 to 800Hz |
| Input Impedance | 400kΩ |
| Insulation Measurement | |
| Test Voltage / Resistance Range | 250V: 50kΩ to 10GΩ 500V: 100kΩ to 20GΩ 1000V: 200kΩ to 40GΩ |
| Measurement Accuracy | 250V: ±(3% R + 2ct)+0.4%/GΩ 500V: ±(3% R + 2ct)+0.2%/GΩ 1000V: ±(3% R + 2ct)+0.1%/GΩ |
| Auto Discharge | Discharge time < 2s/µF From Vtest to 25V |
| Live Circuit Indicator | Inhibit test if terminal voltage > 25V prior to initialization of test |
| Continuity Measurement | |
| Ranges | 0.00 to 10Ω (200mA test current) |
| Accuracy | ± (2% R + 2ct) with lead compensation |
| Open Voltage | ≥ 6V |
| General Features | |
| Timer | 0:00 to 39:59mn, with 1s resolution |
| Display | Backlit digital with bargraph |
| Power Supply | Six AA batteries (NEDA 15A or IEC LR6) |
| Battery Life | ≥1500 IR tests at 1000 V into 1MΩ with a duty cycle of 5 seconds on and 1 min off. ≥3000 R tests of 1Ω with a duty cycle of 5 seconds on and 1min off. |
| Dimensions | 8.31 x 4.25 x 2.36” (211 x 108 x 60mm) |
| Weight | 1.87 lbs (850g) |
| Altitude Operating | 2000m |
| Operating Temperature | -4° to +131°F (-20° to +55°C) & 20 to 80% RH |
| Storage Temperature | -22° to +176°F (-30° to +80°C) & 10 to 90% RH, without batteries |
| IP Rating | IP 54 |
| Safety Compliance |
IEC/EN 61010-1, 600V CAT IV, IEC 61557
|
